Pioneer Triple Split 27000 BTU 2.25-Ton Quantum Ultra Wi-Fi 24 SEER2 Energy-Star Multi (3) Zone Wall Mount Air Conditioner Heat Pump 230-Volt - WYT030GLSI24M3-9W-9W-9W
Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.
Features
- Ultra-high efficiency inverter++ ductless multi split triple (3) zone heat pump system
- (x3) inside unit cooling capacity: 9,000 BTU/H nominal capacity, condensing system 27,000 BTU/H (Range: 4,500 minimum - 31,000 maximum) with 24 SEER/12.0 EER efficiency
- Heating capacity: 28,000 BTU/H nominal (range 4,500 minimum - 33,000 maximum) with 10 HSPF/3.5 COP efficiency
- Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
- Energy-Star Certified and Wi-Fi Enabled

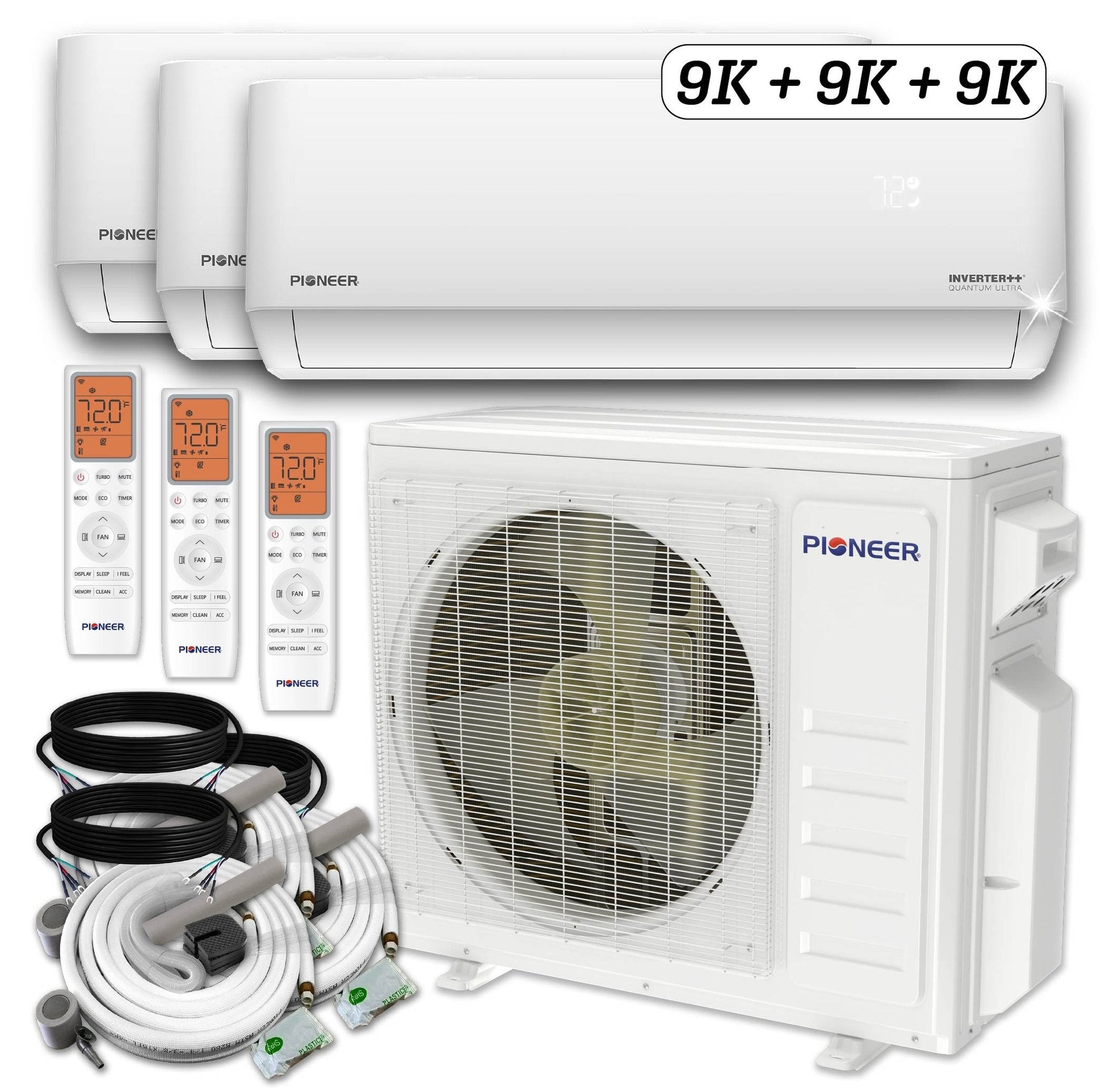

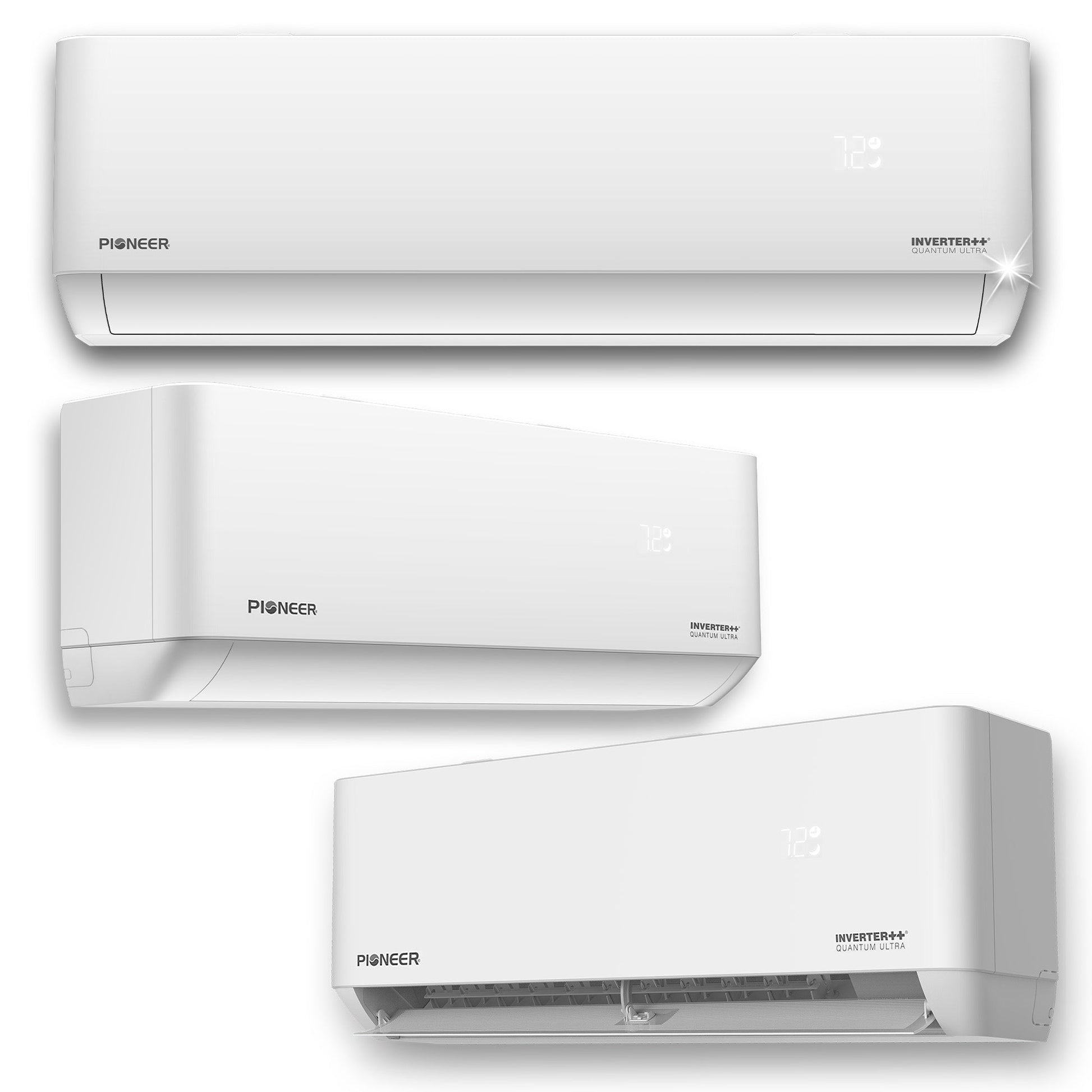

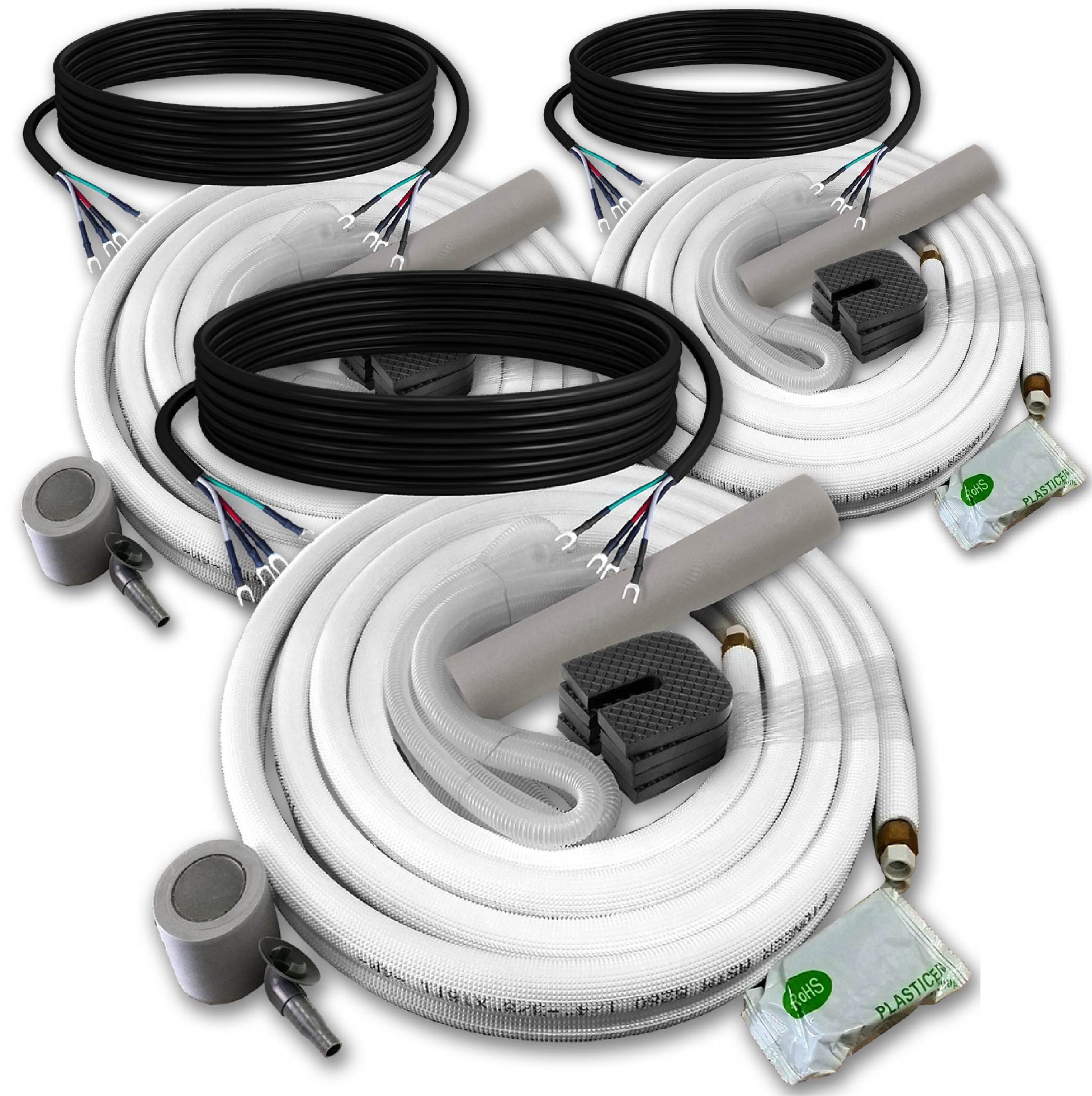

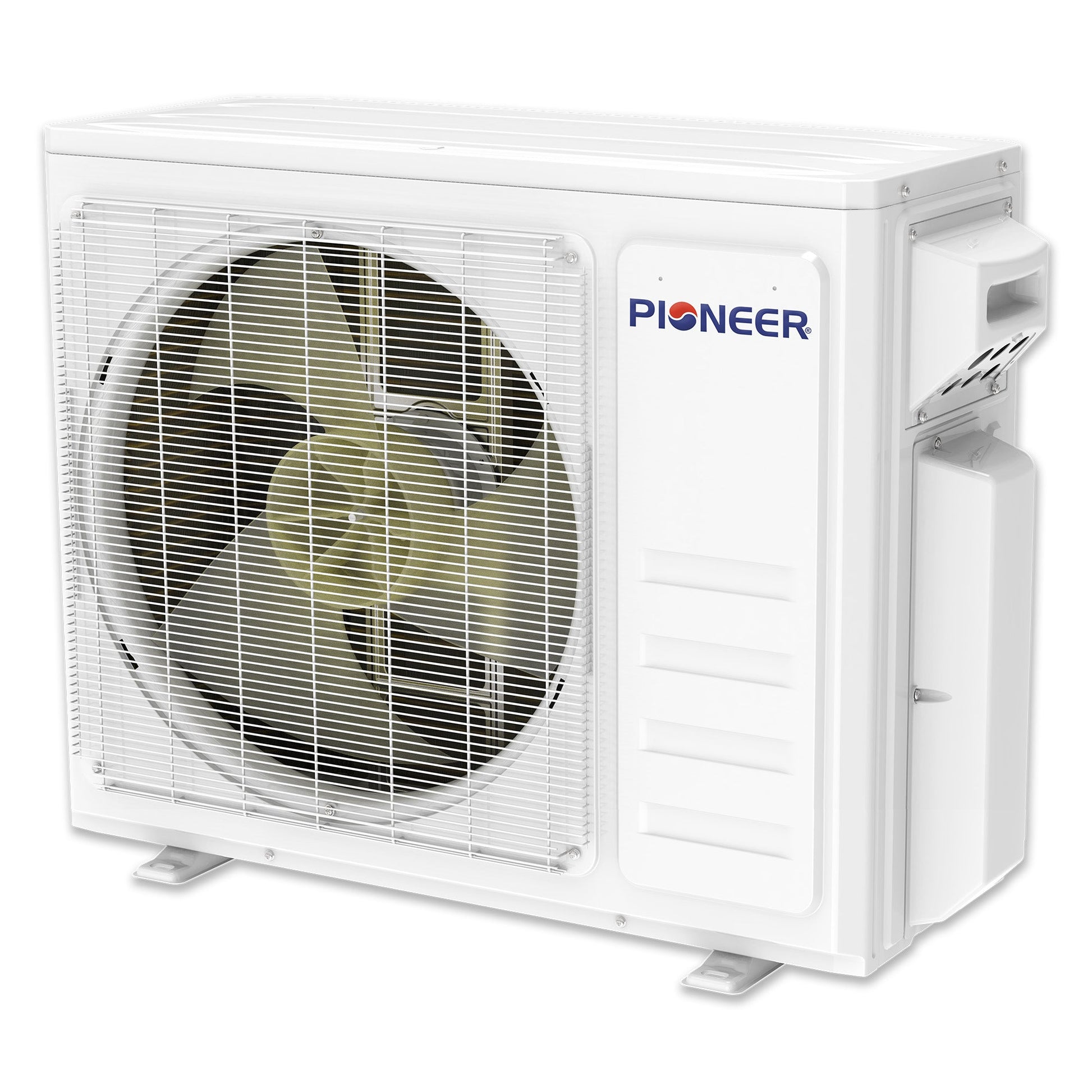

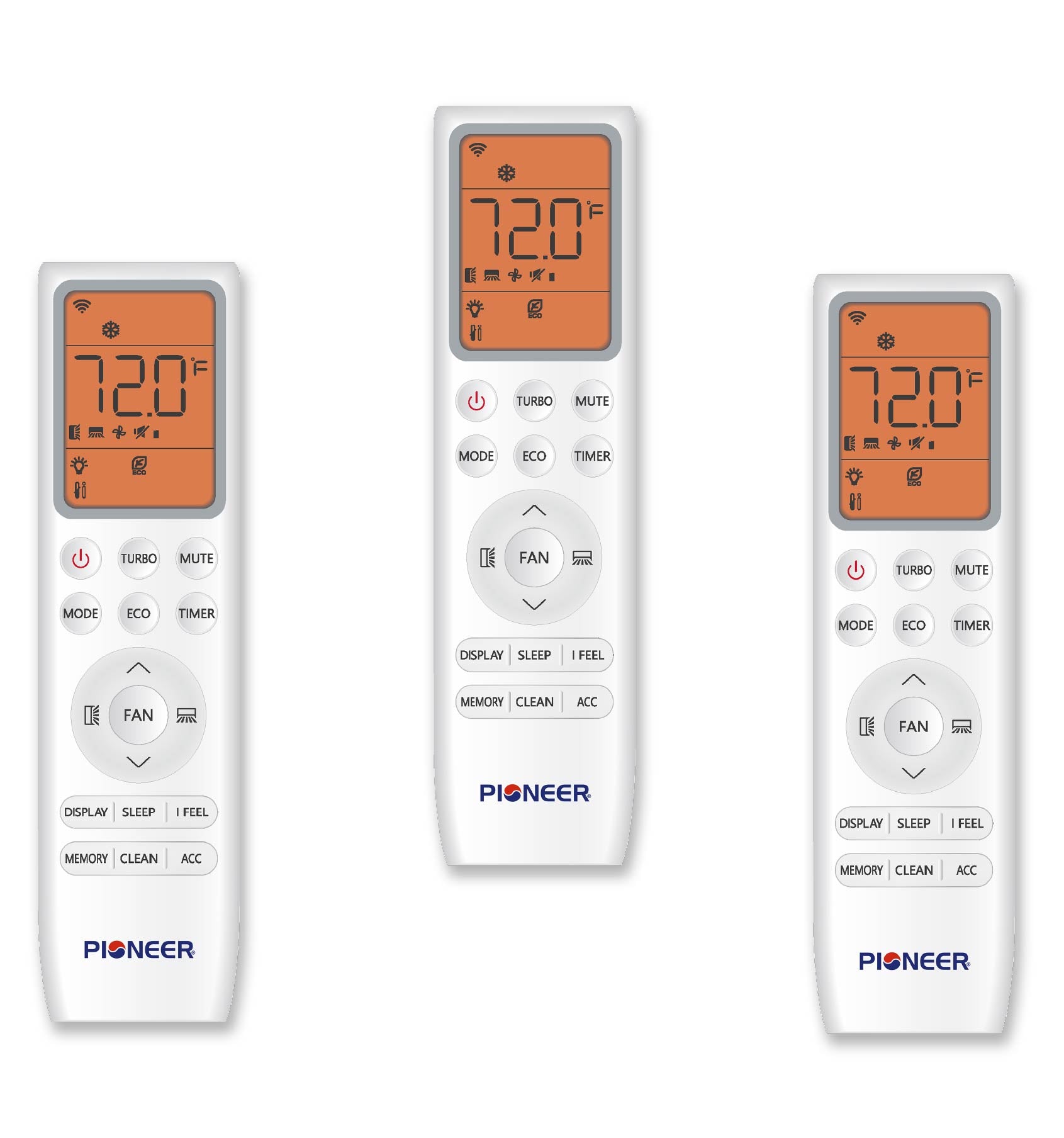

- Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
- Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
- Ultra low ambient system can heat with high capacity at -13°F ambient outdoor temperatures
- Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 75 ft long
- Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
- Certified by: ETL, AHRI, DOE for safety, performance and efficiency
- Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
Manuals
What our Experts Think
-
Efficient triple‑zone comfort (≈27,000 BTU total)

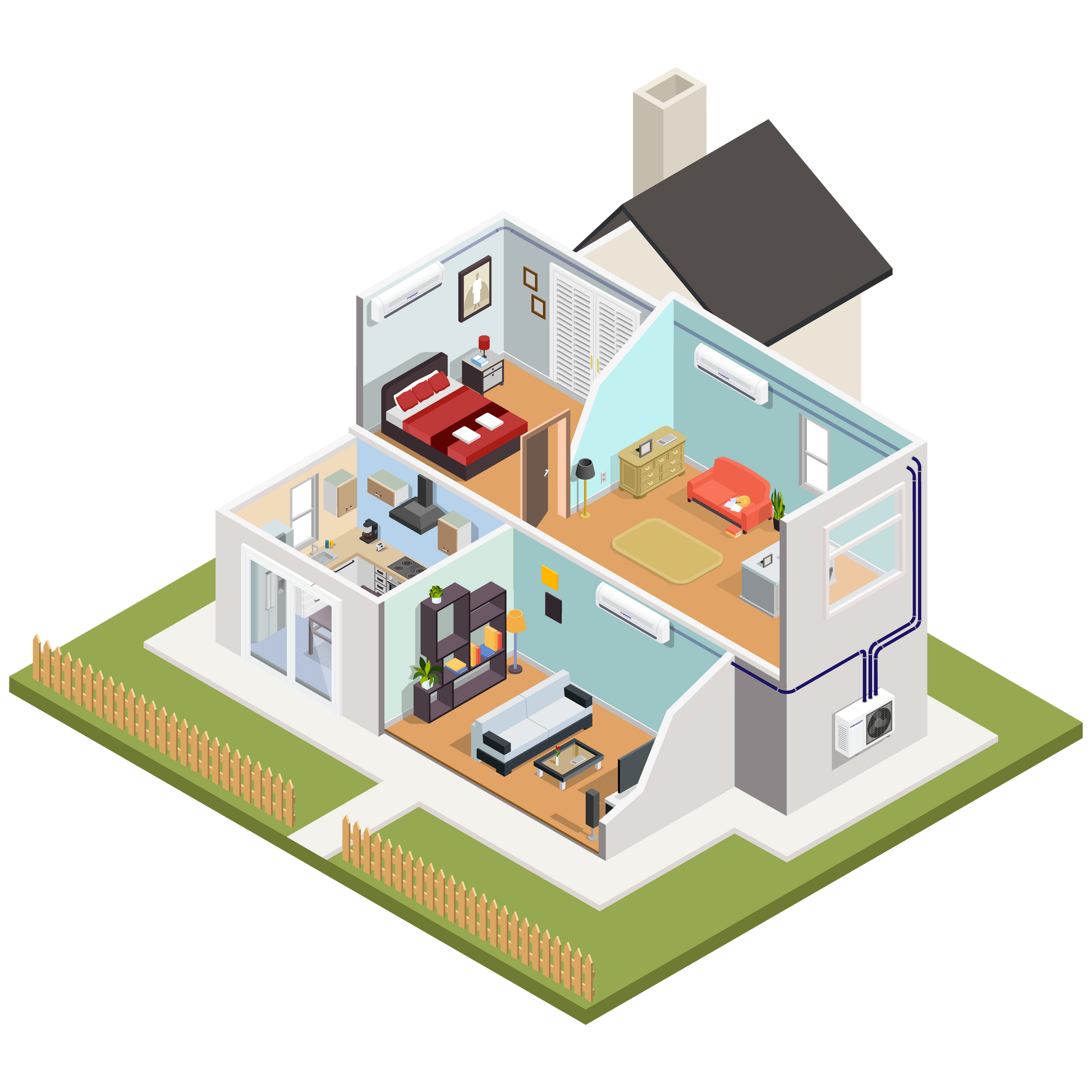

This Pioneer Triple Split 27000 BTU 2.25‑Ton Quantum Ultra Wi‑Fi system pairs three 9,000 BTU indoor units with one outdoor condenser, allowing independent cooling and heating in three separate rooms or areas—a great balance of power and versatility.
-
Exceptional year‑round efficiency (24 SEER2 + Energy‑Star)
24 SEER2 performance delivers excellent seasonal energy efficiency and lower operating costs, while Energy‑Star certification highlights real‑world savings potential.
-
Smart Wi‑Fi control built in
Integrated Wi‑Fi connectivity lets you adjust temperatures, schedules, and modes from your smartphone—perfect for busy households and smart‑home setups.
-
Inverter++ DC technology for precise comfort
Advanced DC inverter compressor and fan motors provide smooth temperature control, quieter operation, and better stability versus fixed‑speed systems.
-
All‑season heat pump performance
Efficient in both cooling and heating, this system maintains comfort across seasons and can deliver heat at temperatures as low as –13 °F, ideal for varied climates.
-
Complete system with accessories included
Comes as a full kit with indoor and outdoor units, insulated line sets, wireless remotes, and installation accessories—reducing guesswork at install.
-
Eco‑friendly refrigerant & flexible layout
Pre‑charged with R454B refrigerant and supports combined line lengths up to ~75 ft, giving flexibility for installation layout.
-
Quiet, balanced multi‑room operation
Multi‑zone design and inverter modulation help minimize noise and deliver consistent comfort in each zone.
Q&A
Q: What room size is this 27,000 BTU triple split mini split ideal for?
A: Ideal for large homes or multiple rooms (approx. 900–1,400 sq. ft.), such as living areas, offices, or open-plan layouts.
Q: Does it provide both cooling and heating?
A: Yes, this inverter heat pump delivers efficient year-round cooling and heating for all connected zones.
Q: How many zones does this system support?
A: Triple-zone system supports three indoor units with independent temperature control for each zone.
Q: Is this unit Energy Star certified?
A: Yes, it is Energy Star certified for high efficiency and lower electricity costs.
Q: How energy-efficient is the 24 SEER2 rating?
A: With 24 SEER2, it provides exceptional energy savings while maintaining consistent comfort across all zones.
Q: Does it support Wi-Fi or smart control?
A: Yes, built-in Wi-Fi allows remote operation, scheduling, and monitoring for each indoor unit via the Pioneer Airlink app.
Q: What voltage does it require?
A: Designed for 208–230V single-phase power.
Q: What is included in the full set?
A: Includes three indoor wall-mount units (each 9,000 BTU), one outdoor condenser, and pre-charged installation kits for all units.
Q: How quiet are the indoor units?
A: Operates quietly, typically 30–40 dB, suitable for bedrooms, living areas, or offices.
Q: What comfort and usability features are included?
A: Turbo mode, ECO mode, sleep mode, self-cleaning, auto restart, timer, and multi-directional airflow for all zones.
Maintenance Tips
-
Clean washable air filters every 2–4 weeks – Maintains optimal airflow and 24 SEER2 Energy Star efficiency for multi-zone 900–1,100 sq ft coverage
-
Run self-clean function regularly – Prevents mold, bacteria, and odor buildup in all three indoor units
-
Keep indoor & outdoor units dust- and debris-free – Ensures consistent airflow and peak heat exchange across all zones
-
Check and clear condensate drain lines – Prevents leaks and potential water damage
-
Maintain 2–3 ft clearance around outdoor unit – Supports efficient cooling/heating performance
-
Inspect refrigerant lines annually – Ensures leak-free operation and reliable multi-zone capacity
-
Use ECO, Sleep & Wi-Fi smart modes – Reduces compressor wear and lowers energy consumption
-
Schedule annual professional servicing – Maximizes inverter efficiency and extends system lifespan
