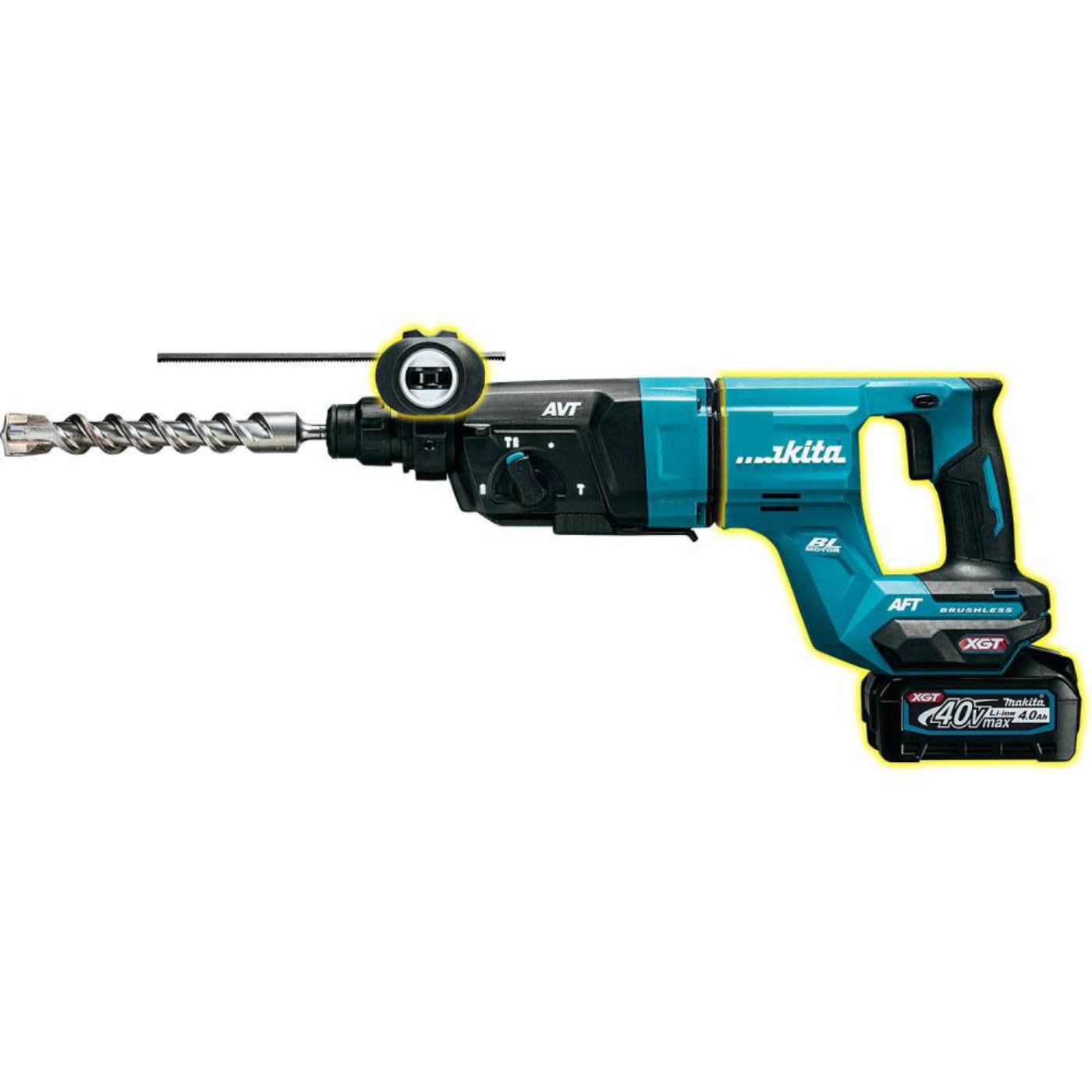

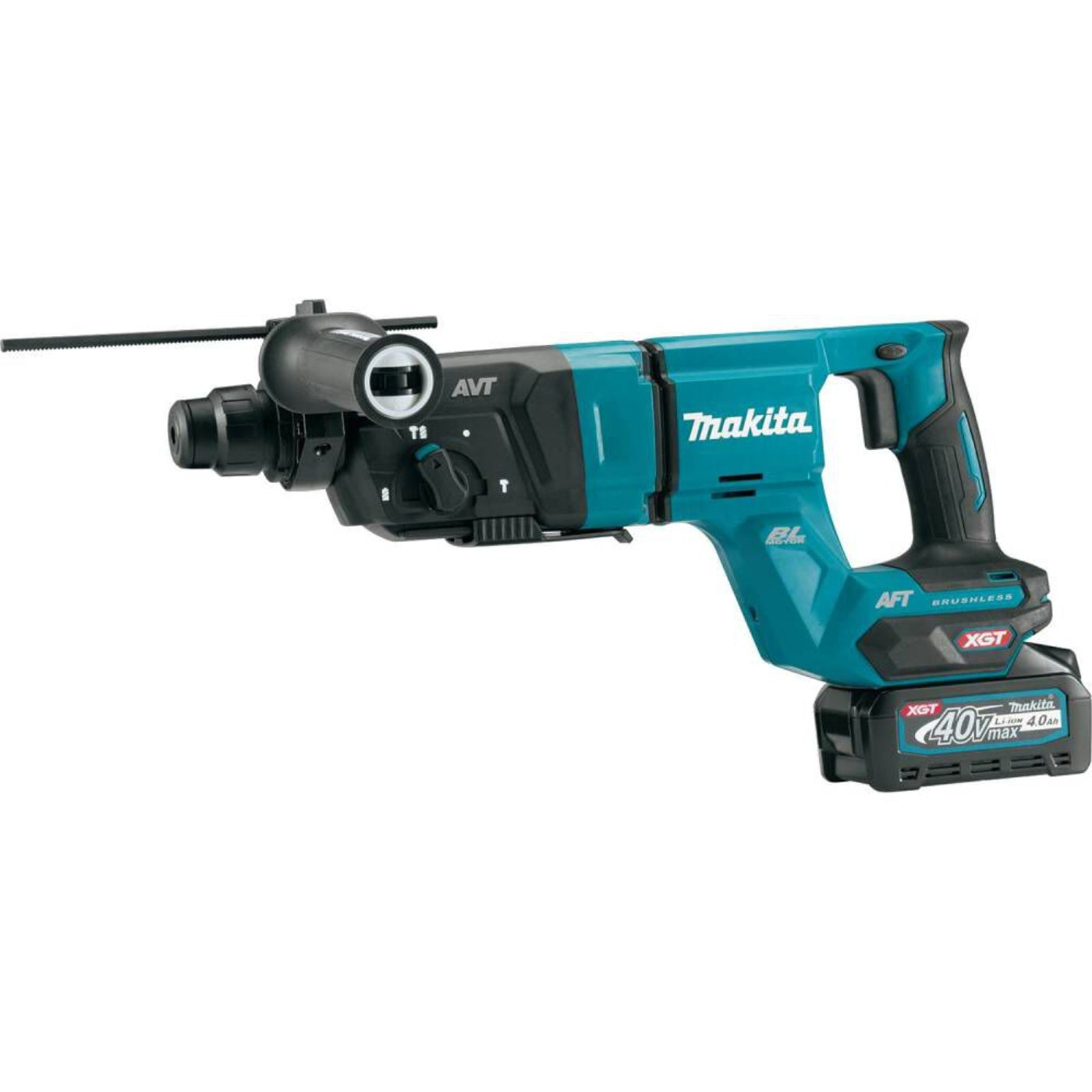

Makita 40V Max XGT️ 1-1/8in AVT Rotary Hammer Kit - GRH07M1
The Makita brushless cordless 1-1/8 Inch rotary hammer kit contains a rotary hammer, a side handle, cloth towel, battery, grease, tool bag and an optimum charger. Hammer works well with SDS-plus bits and is ideal for heavy-duty applications. XGT technology produces up to 135 of 3/8 Inch holes per charge on a single battery. Brushless motor operates at an impact energy of 2.8 ft-lb and has a speed of 0 to 980 RPM and 0 to 5000 BPM. Constant speed mechanism automatically applies the power under load. Active feedback-sensing technology electronically shuts down the motor in case the rotation of the bits if stopped suddenly. Anti-vibration technology minimizes the vibration on the padded handle thus making it easier to use. Internal counterbalancing technology moves the counterweight positions in the opposite direction of the drive piston by utilizing the air pressure. Auto-Wireless technology makes use of Bluetooth connectivity for effortless wireless communication between the equipped tool and the dust extractor. Dust extractor automatically starts when the tool is running and stops immediately when the tool is stopped. This in turns enhances the productivity and minimizes the continuous noise at the jobsite. Torque-limiting clutch disengages the gears if the bits binds thus preventing any gear damage. Electric brake prevents sudden initiation and the integrated LED light brightens up the working surface. Overload protection safeguards the motor from burnout while using the tool in high-torque applications. User can choose three operational modes namely "rotation only", "hammering with rotation" and "hammering only" depending upon the applications. Extreme protection mechanism provides good resistance to dust and water in harsh weather conditions.
Features
- OUTPOWER: Makita-built brushless motor along with 40V max XGT battery combine to deliver the power performance required for heavy-load application.
- OUTSMART: Constant speed control automatically applies additional power under load for optimum performance.
- OUTLAST: Overload protection is designed to protect the motor from burnout in abnormally high torque situations.
- Active Feedback-Sensing Technology (AFT) electronically turns off the motor if rotation of bit is suddenly forced to stop.
- Anti-Vibration Technology (AVT) is designed to reduce vibration for increased comfort.

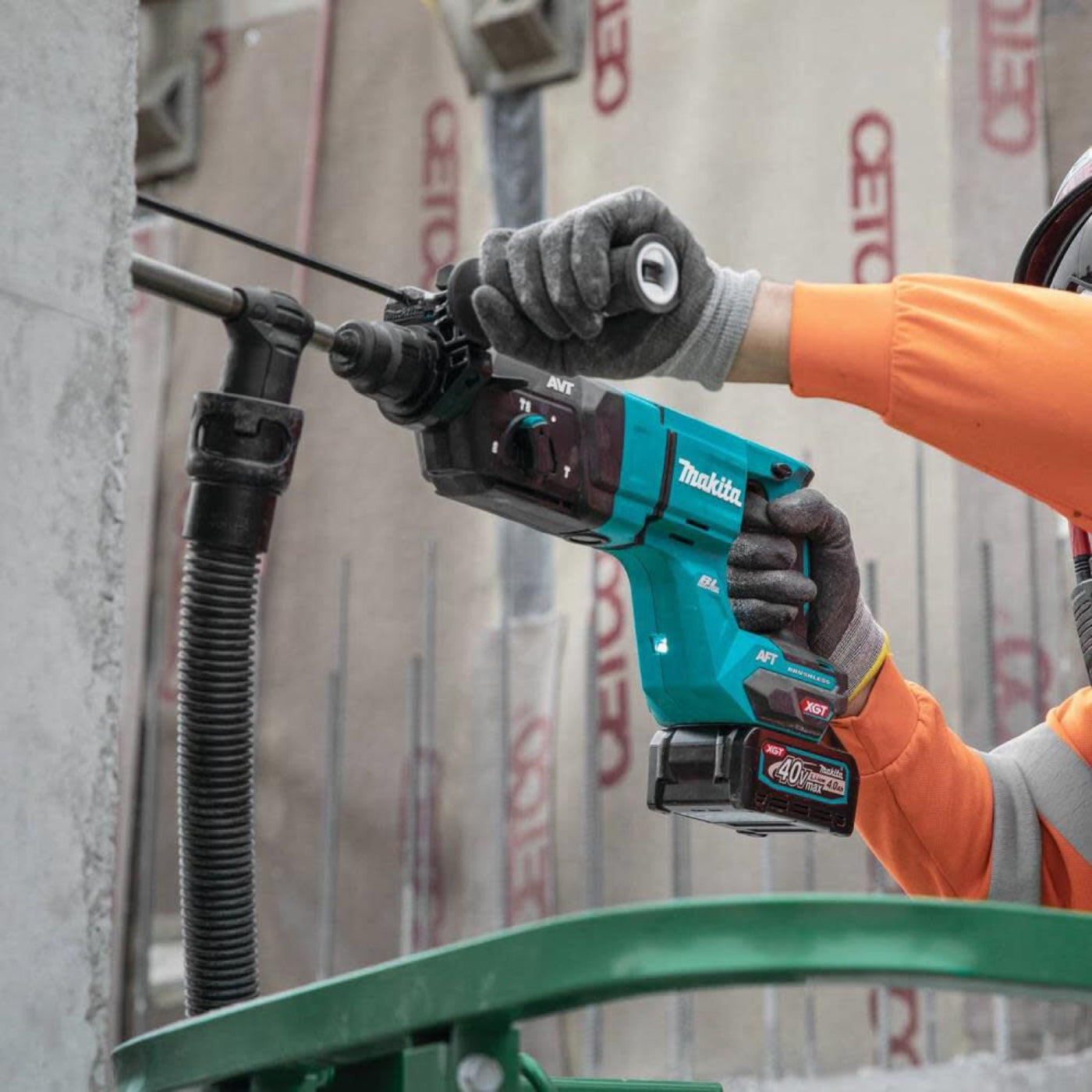

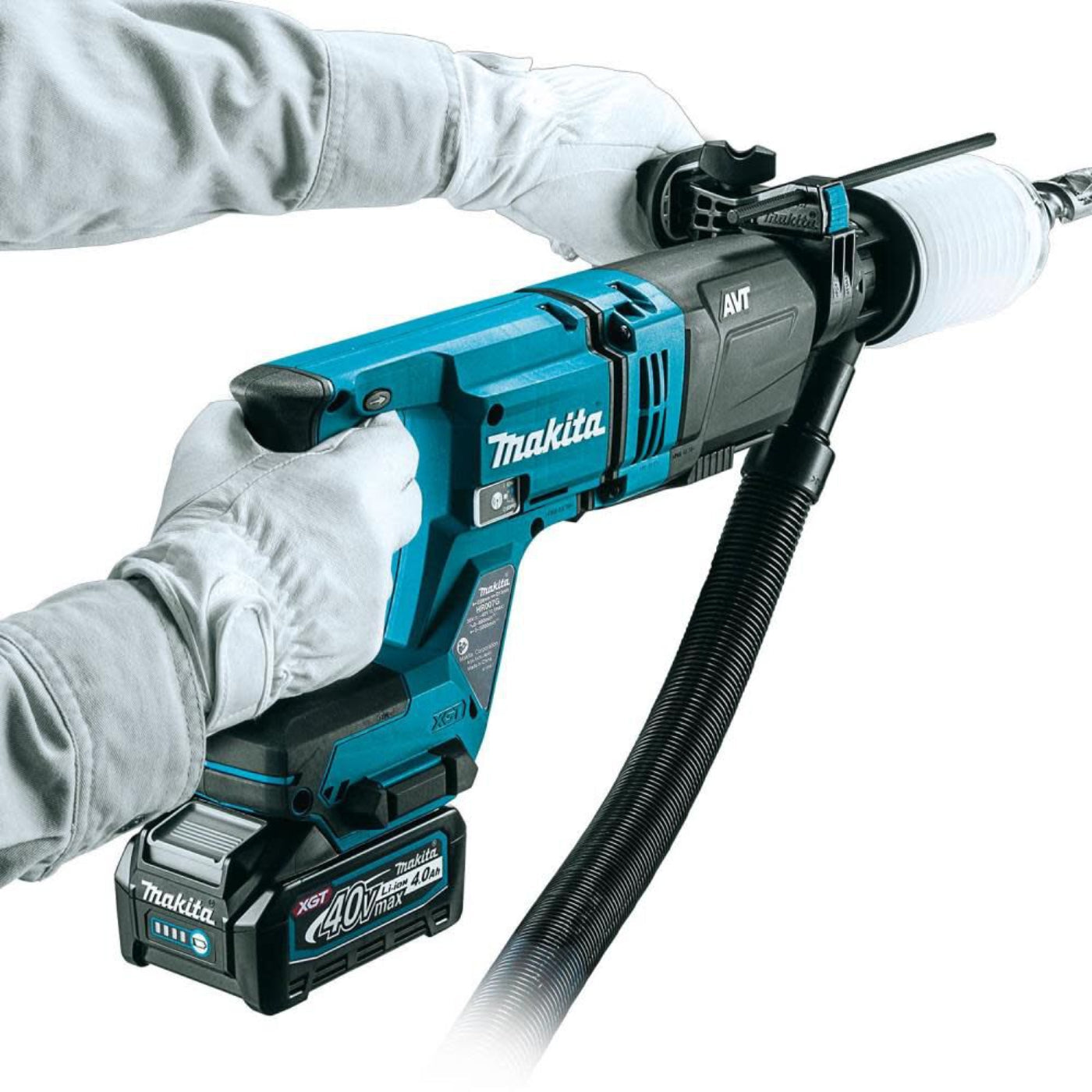

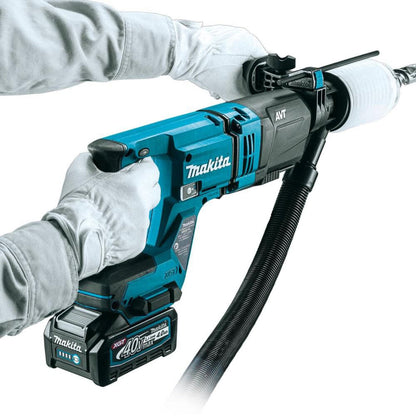

- Dust extraction capability with optional OSHA Table 1 compliant on-board HEPA Dust Extractor or stand-alone AWS Extractor.
- Auto-Start Wireless System (AWS) which utilizes Bluetooth technology for wireless power-on/off communication between tool and dust extractor (AWS Transmitter sold separately).
- Makita 40V max XGT 1 1/8" AVT Rotary Hammer Kit accepts SDS PLUS bits AFT AWS Capable.
- Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears during a bind-up situation.
- Variable speed trigger enables user to match the speed to the application.

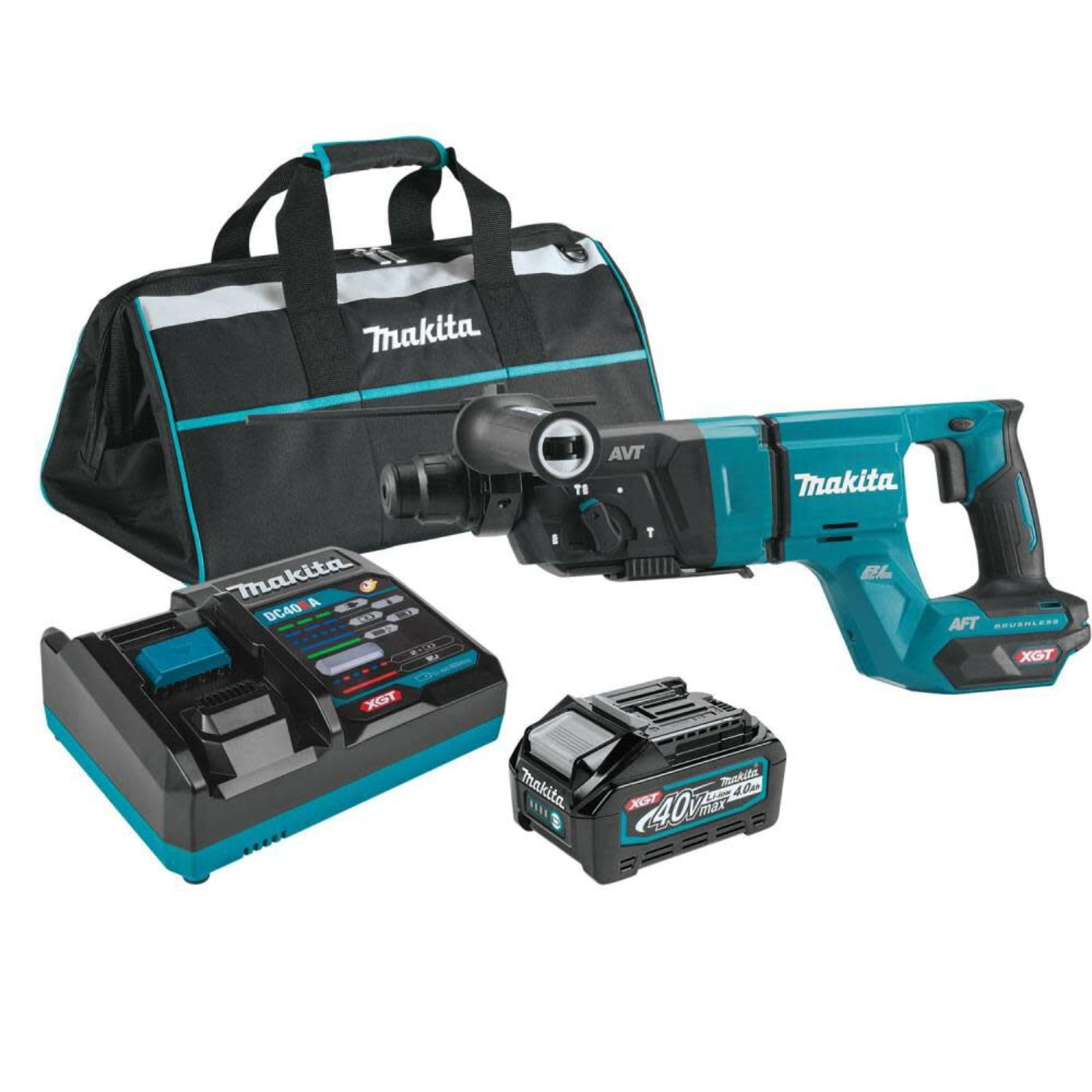

Includes
- (1) 40V max XGT Brushless 1-1/8" SDS-PLUS AVTRotary Hammer (D-Handle), AWS Capable (GRH07Z)
- (1) 40V max XGT 4.0Ah Battery (BL4040)
- (1) 40V max XGT Rapid Optimum Charger (DC40RA)
- (1) Hammer Bit Grease (194683-7)
- (1) CLOTH F/WIPING OIL (443122-7)
- (1) Side Handle Assembly
What our Experts Think
-
Power & Efficiency — 40V Max XGT® brushless motor delivers strong drilling performance with up to ~23 % faster concrete drilling and ~38 % more holes per charge vs previous generations — ideal for commercial concrete work.
-
Job‑Site Comfort — Anti‑Vibration Technology (AVT®) reduces felt vibration significantly, improving operator comfort during prolonged drilling and chiseling tasks.
-
Smart Safety & Control — Active Feedback‑Sensing Technology (AFT®) shuts down the motor if the bit binds, reducing kickback risk and protecting both user and tool.
-
Dust Management Ready — Capable of connecting to OSHA Table‑1 compliant HEPA dust extractors (sold separately), supporting cleaner, safer work environments.
-
D‑Handle Design — Ergonomic D‑handle configuration makes overhead and downward drilling easier, increasing versatility on varied job situations.
-
Complete Kit Value — Includes 4.0 Ah battery, rapid charger, side handle and accessories — ready to tackle concrete drilling out of the box.
-
Pro Tip: Pair with quality SDS‑PLUS bits and an AWS‑capable dust extraction setup to maximize efficiency and maintain clean workspaces.
Q&A
Q: What is the Makita GRH07M1 kit?
A: The Makita 40V Max XGT 1‑1/8″ AVT Rotary Hammer Kit – GRH07M1 is a professional‑grade cordless rotary hammer kit from Makita’s 40V Max XGT platform, built for heavy concrete and masonry drilling with a D‑handle design that’s great for overhead, downward, and hard‑to‑reach drilling.
Q: What’s included in this kit?
A: It includes the brushless 1‑1/8″ SDS‑PLUS AVT rotary hammer tool, a 40V Max XGT 4.0 Ah battery, rapid charger, side handle, grease, and cloth/towel.
Q: What work is this tool designed for?
A: Designed for concrete and masonry drilling, this kit delivers cordless power comparable to traditional corded tools, making it suitable for construction, renovation, and structural drilling tasks.
Q: Why choose this rotary hammer kit?
A: It combines brushless motor efficiency, Anti‑Vibration Technology (AVT) for comfort, Active Feedback‑Sensing Technology (AFT) for safety, and cordless convenience for professional use.
Maintenance Tips
-
Clean tool after each use – wipe down the hammer and remove concrete dust/debris from vents and bit area to prevent buildup and overheating.
-
Inspect SDS‑PLUS bits – check bits for wear or damage and replace them as needed for efficient drilling.
-
Apply bit grease – use the included hammer bit grease on the bit shank before use to reduce friction and extend bit/chuck life.
-
Keep battery contacts clean – wipe XGT battery and tool terminals dry to ensure solid power transfer and prevent corrosion.
-
Clear cooling vents – remove debris around vents to maintain airflow and prevent brushless motor heat buildup.
-
Tighten handles & fasteners – check side handle and screws before operation to avoid loosening from vibration.
-
Use dust extraction (optional) – if connecting a HEPA dust extractor, empty/clean filters often to preserve airflow and suction.
-
Store dry & cool – keep the rotary hammer and batteries in a dry, climate‑controlled place away from moisture/extreme temperatures.
