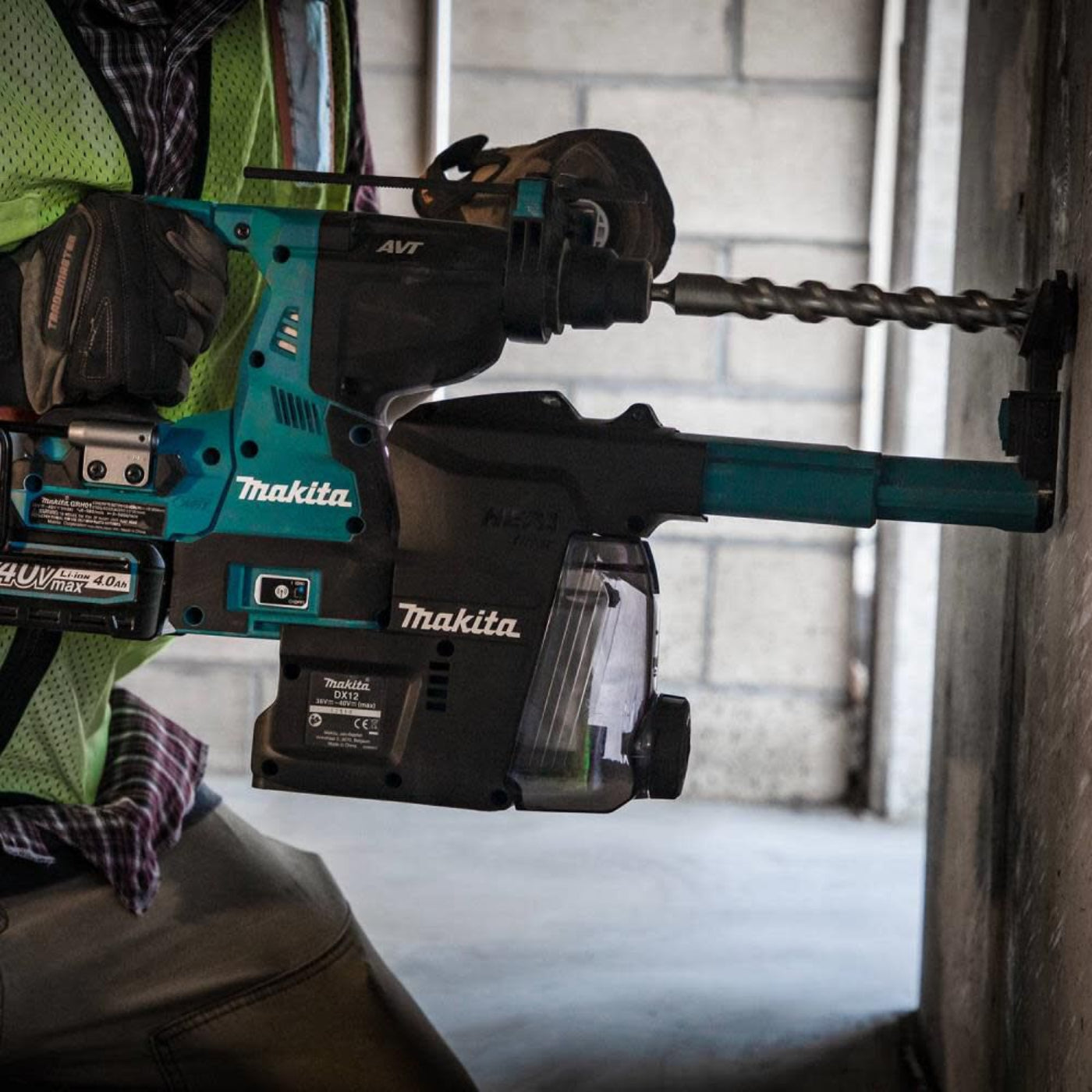

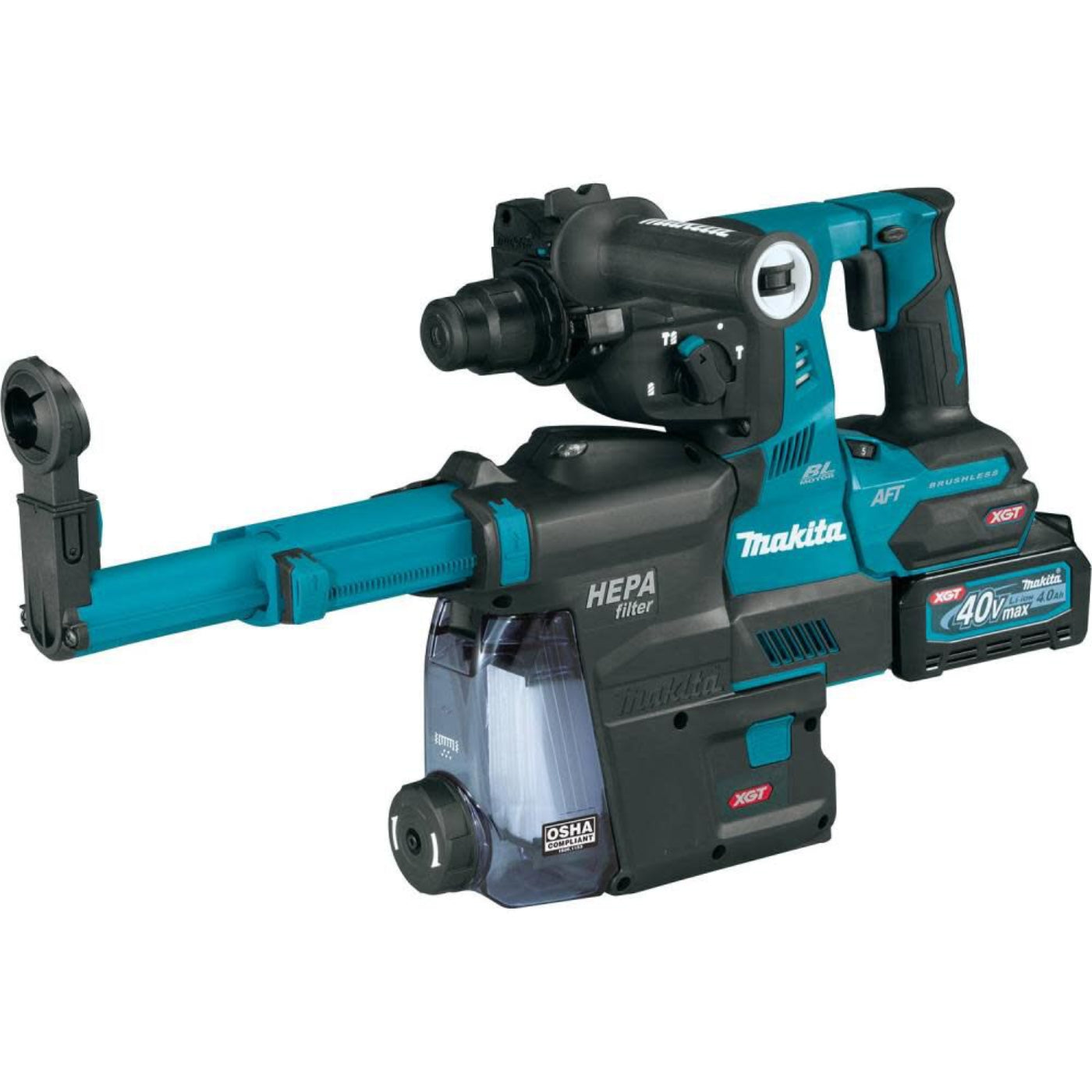

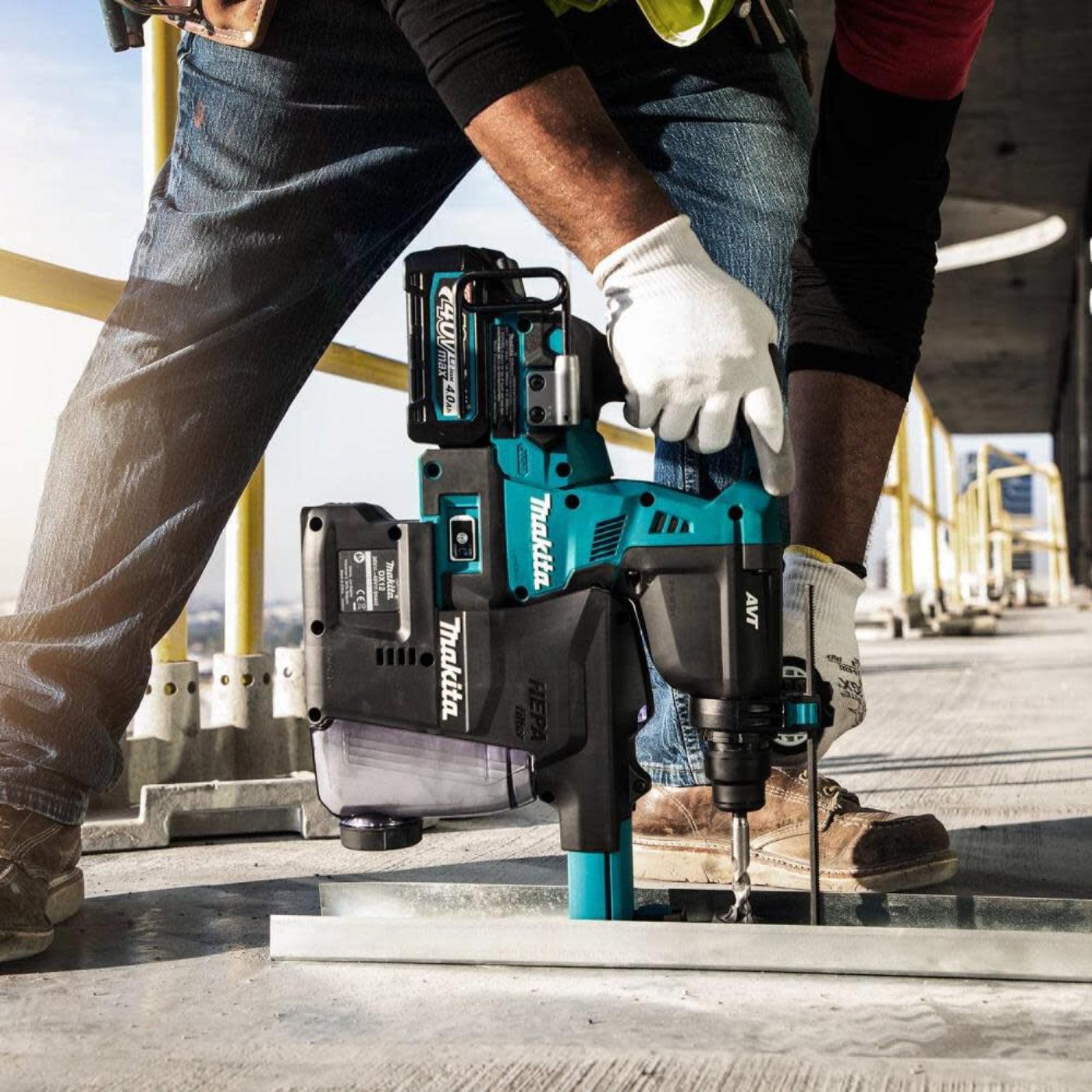

Makita 40V Max XGT️ Rotary Hammer Kit 1-1/8In AVT with Dust Extractor - GRH01M1W

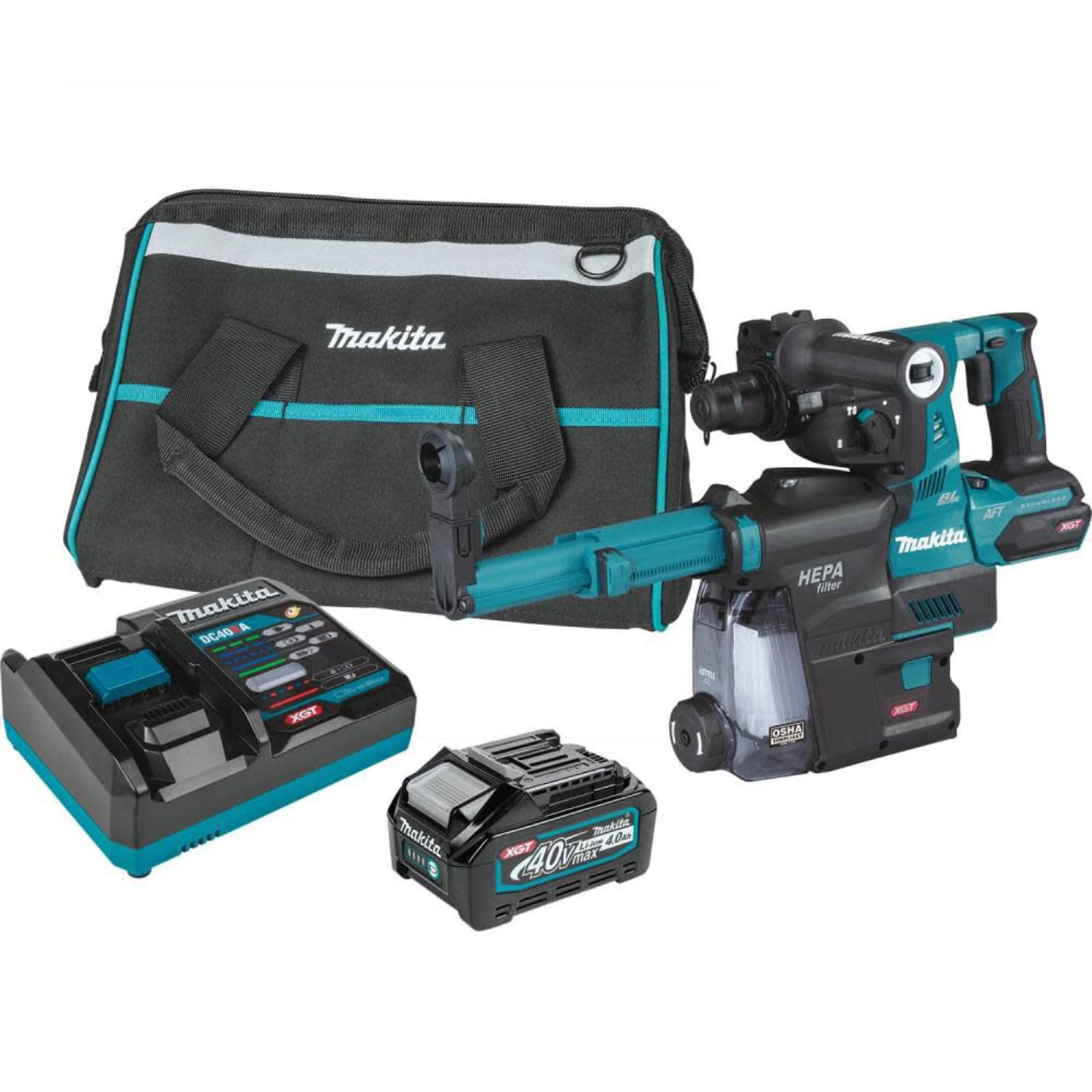

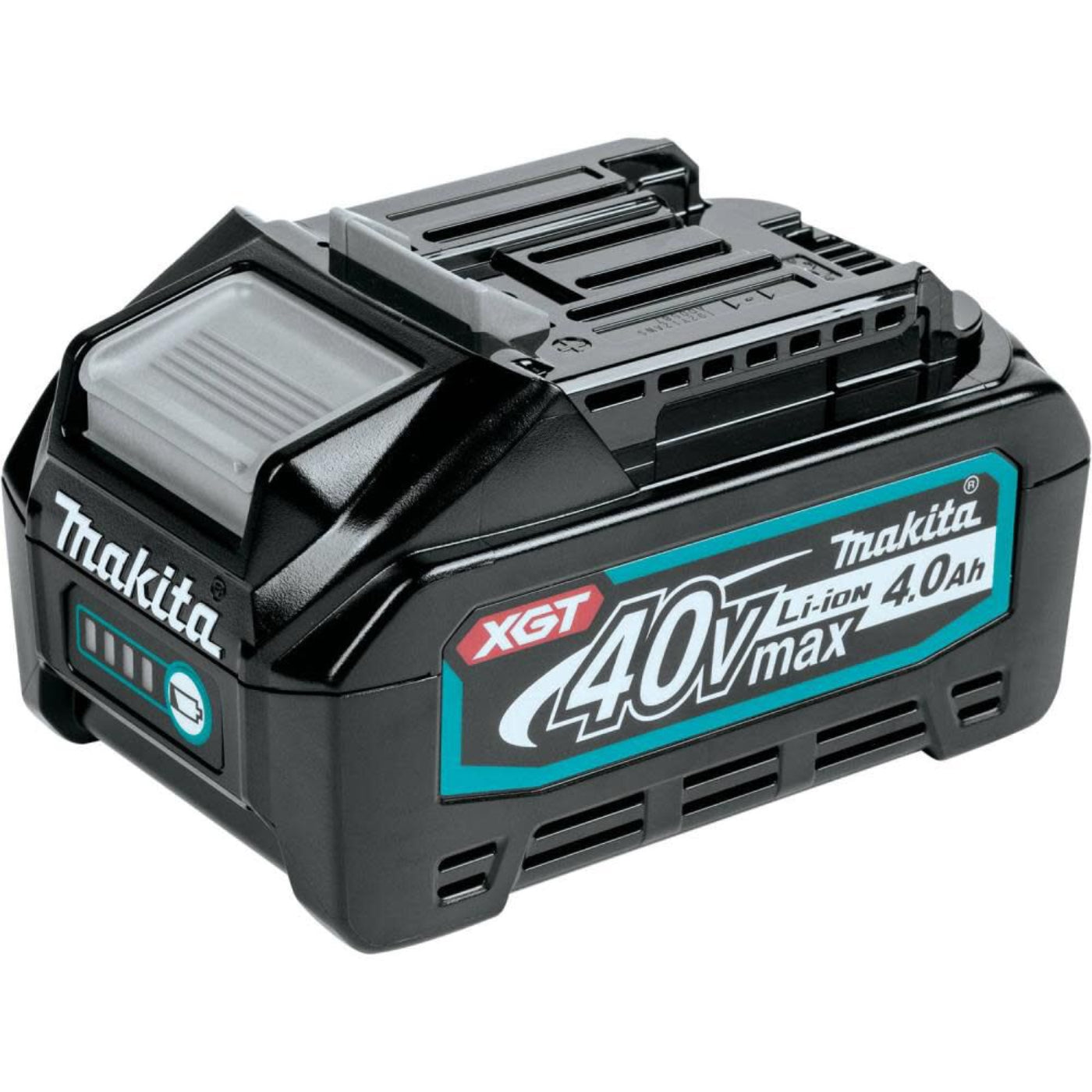

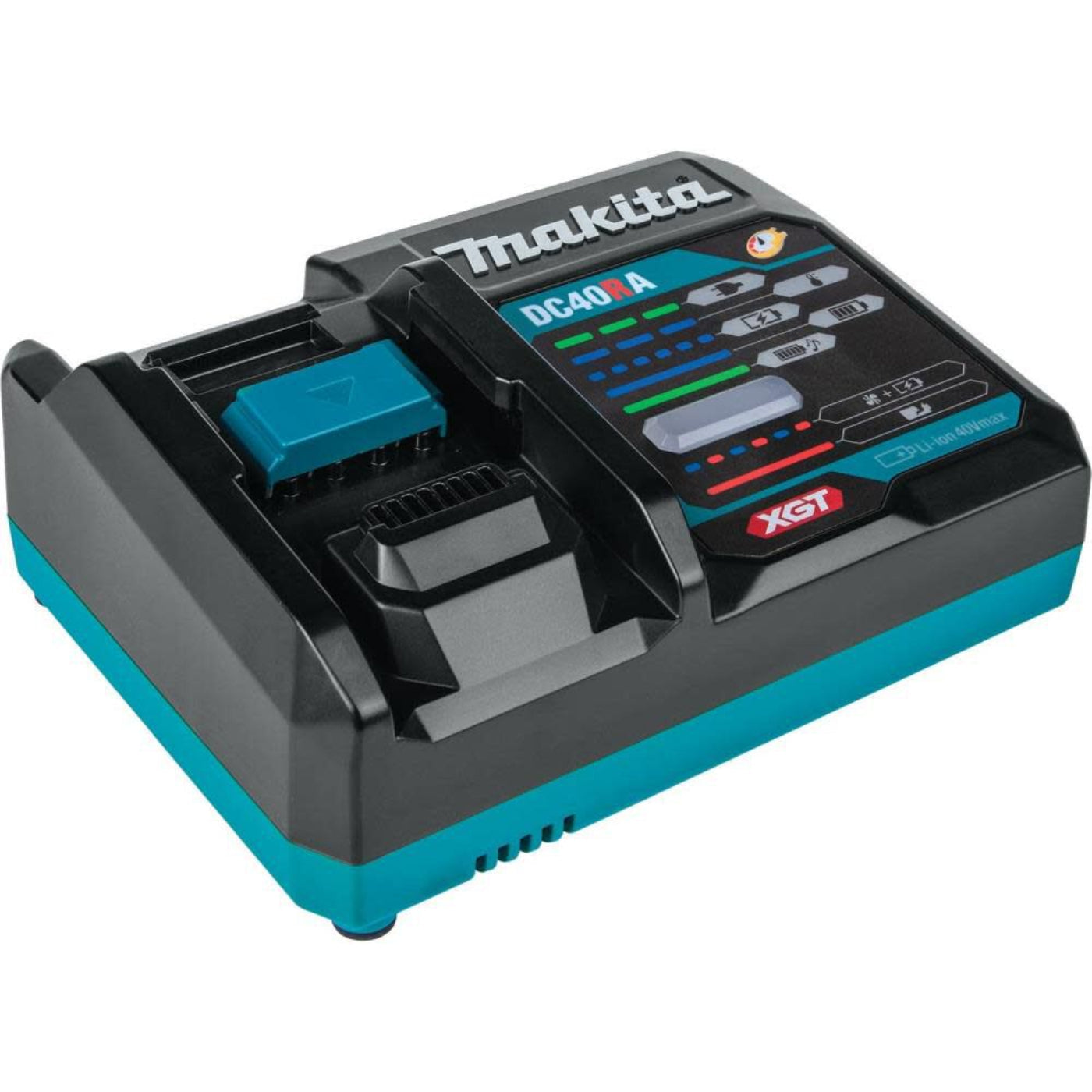

The Makita 40 Volt Max XGT cordless rotary hammer kit includes brushless 1-1/8 Inch AVT rotary hammer (GRH01Z), dust extractor attachment with HEPA filter cleaning mechanism (DX12), cloth towel (443122-7), 4.0 Amp-hour battery (BL4040), rapid optimum charger (DC40RA), side handle assembly (126882-3), grease (194683-7) and a tool bag. This cordless hammer tool is a great concrete solution designed for heavy-load applications. It delivers the power, speed and run-time for corded demands without the cord. The XGT technology delivers up to 135 of 3/8 Inch holes per charge when using one 40 Volt max 4.0 Amp-hour battery. Tool features constant speed control that automatically applies additional power under load for optimum performance. It also features Active Feedback-Sensing Technology (AFT) to electronically turn off the motor, if rotation of bit is suddenly forced to stop. The Anti-Vibration Technology (AVT) is an internal counterbalance that uses air pressure to move counterweight pistons in the opposite direction of the drive piston to actively reduce vibration. In addition, the vibration-absorbing back handle and side handle further reduce vibration. Tool with Extreme Protection Technology (XPT) system is engineered for improved dust, water resistance and added durability in harsh job site conditions.
Features
- OUT POWER: Makita-built brushless motor along with 40V max XGT battery combine to deliver the power performance required for heavy-load application

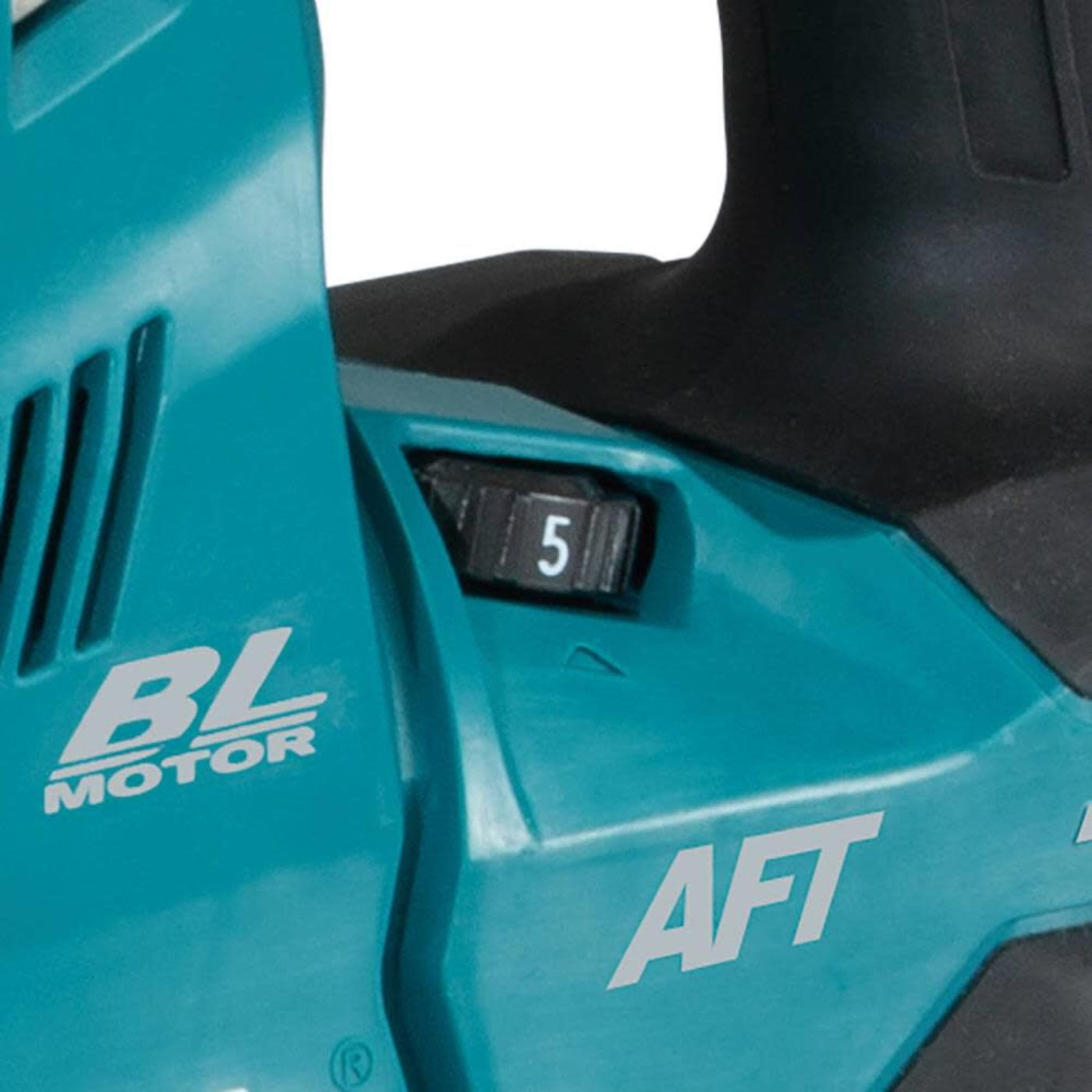

- OUT SMART: Constant speed control automatically applies additional power under load for optimum performance
- OUT LAST: Overload protection is designed to protect the motor from burnout in abnormally high torque situations
- XGT® technology delivers up to 135 of 3/8" holes using a fully charged 40V XGT® 4.0Ah battery*
- Active Feedback-Sensing Technology (AFT) electronically turns off the motor if rotation of bit is suddenly forced to stop
- Anti-Vibration Technology (AVT) is an internal counterbalance system along with vibration-absorbing handles that work together to reduce vibration
- Dust extraction capability with OSHA Table 1 compliant on-board HEPA Dust Extractor or stand-alone AWS Extractor options
- Makita 40V max XGT Rotary Hammer Kit Brushless Cordless 1 1/8" AVT with Dust Extractor accepts SDS PLUS bits AFT AWS Capable
- Electric brake allows the tool to be repositioned faster for maximum productivity
- Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears during a bind-up situation
What our Experts Think
-
Pro‑Grade Cordless Power — Brushless motor paired with the 40V Max XGT platform delivers strong performance for heavy‑load drilling in concrete and masonry.
-
Advanced Dust Management — Built‑in OSHA Table‑1 compliant HEPA dust extractor helps keep work areas cleaner and meets job‑site safety standards.
-
Enhanced Control & Safety — AFT (Active Feedback‑Sensing Tech) cuts motor if a bit binds, reducing kickback; AWS capability enables automatic dust extractor control (transmitter sold separately).
-
Comfort for Extended Use — AVT (Anti‑Vibration Tech) significantly reduces vibration, making long drilling sessions easier on the operator.
-
Complete Kit Value — Includes a high‑capacity 4.0Ah battery, rapid charger, dust extractor attachment with HEPA filter, side handle, and tool bag for ready‑to‑use convenience.
-
Versatile Performance Features — Electric brake, variable speed control, and AWS wireless automation enhance precision and efficiency on demanding job sites.
-
Pro Tip: Pair with quality SDS‑PLUS bits for fast penetration and longer bit life in reinforced concrete.
Q&A
Q: What is the Makita GRH01M1W kit?
A: The Makita 40V Max XGT Rotary Hammer Kit GRH01M1W is a powerful cordless rotary hammer bundle from Makita’s 40V Max XGT platform, including a 1‑1/8″ SDS‑PLUS rotary hammer with on‑board dust extractor and essential accessories for jobsite drilling and demolition.
Q: What tasks is this kit designed for?
A: Built for concrete and masonry drilling and light demolition on construction, renovation, and structural applications where corded power and dust control are needed.
Q: What’s included in the GRH01M1W kit?
A: The kit includes the 40V Max XGT brushless rotary hammer, 40V Max 4.0Ah battery, charger, dust extractor attachment with HEPA filter, side handle, grease, towel, and tool bag.
Q: Who should consider this tool?
A: Professional contractors, concrete and masonry workers, and tradespeople who value cordless flexibility with effective dust management.
Maintenance Tips
-
Clean tool & extractor after every use – wipe down the rotary hammer and dust extractor housing to remove concrete dust and debris that can clog vents and hinder performance.
-
Check HEPA filter regularly – clean or replace the dust extractor’s HEPA filter often to maintain effective dust capture and airflow.
-
Inspect SDS‑PLUS bits and accessories – examine bits for wear or damage and replace them promptly to ensure efficient drilling and reduce tool strain.
-
Grease bit shanks lightly – apply the included grease to bit shanks before drilling to reduce friction and prolong bit and chuck life.
-
Protect battery contacts – keep XGT battery terminals and tool contacts clean and dry for reliable power transfer and long battery life.
-
Store properly – store tool and dust extractor in a dry, cool place away from moisture and extreme heat to protect electronics and steel components.
-
Tighten handles & components – before each use, check that handles, side grips, and attachments are secure and free from play.
-
Follow Makita guidelines – refer to the owner’s manual for specific torque settings, cleaning instructions, and AWS/AFT functions to maintain warranty coverage.
