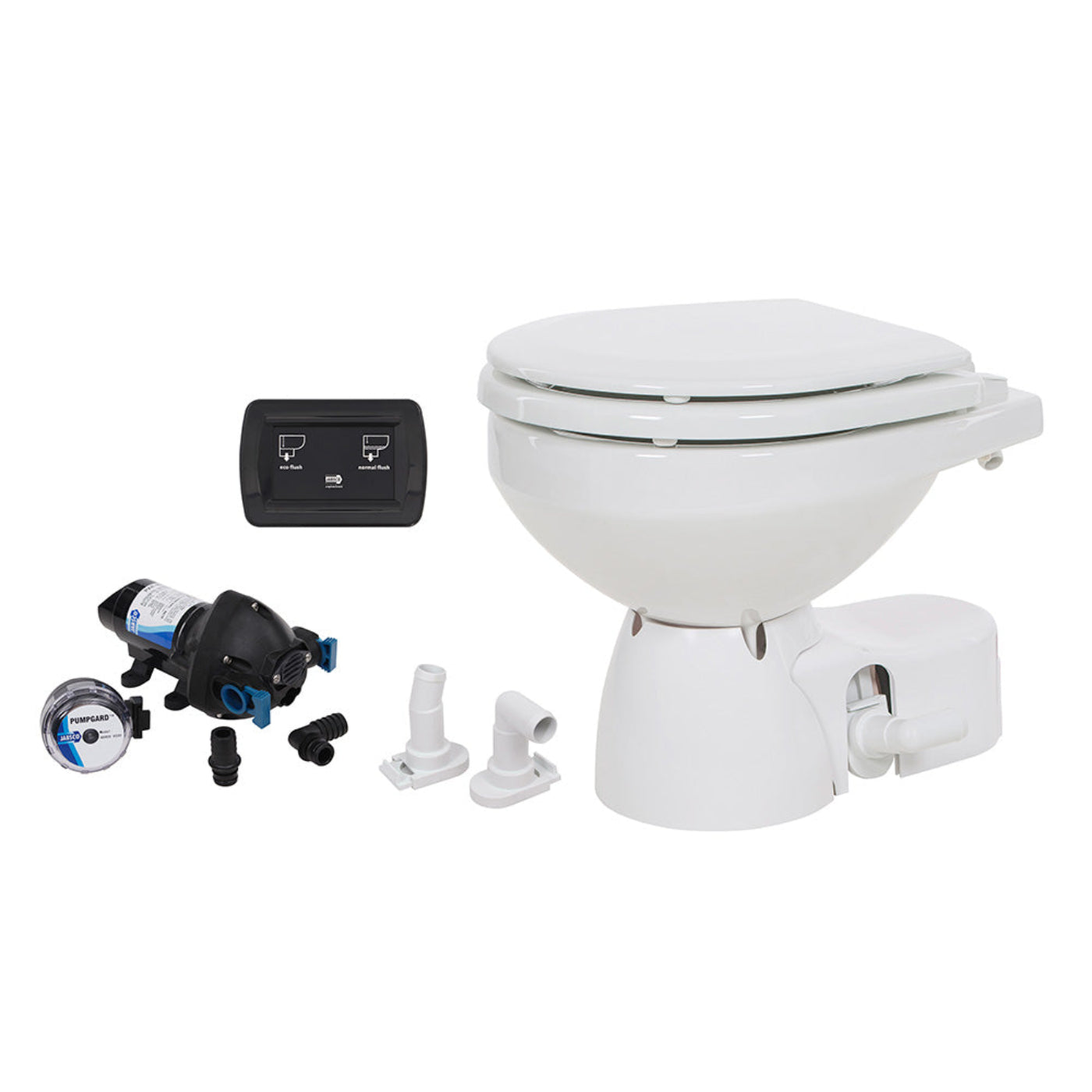

Jabsco Quiet Flush E2 Raw Water Toilet Compact Bowl - 24V - Soft Close Lid - CWR-102564
From crowded charter boats to racing yachts and everything in between, the award-winning Jabsco Quiet Flush E2 marine toilet has been designed to solve some of the biggest marine waste challenges facing boat owners and manufacturers. With its simplified installation, ease of serviceability, and sleek touch sensor control, the Quiet Flush E2 brings a whole new level of convenience and comfort to the water.
The Quiet Flush E2 gives even the occasional boater the confidence to install this toilet. For maximum flexibility in tight spaces, the base can be rotated, allowing you to install the pump with the discharge to the left, right, or rear.
Designed for recreational craft but built to withstand the abuse of commercial use, the quick-release system provides easy access to the macerator pump and discharge hose with no tools needed.
Marine toilets bring the comfort of home with you, but there are additional considerations on a boat, which is why the Quiet Flush E2 puts you in complete control. With its sleek touch sensor panel, users can choose three settings, including a water-saving, eco-friendly cycle.
Features
- The base can be rotated to the left, right, or rear of the bowl to suit multiple installation options
- The discharge pump can be rotated 180 degrees to suit the base orientation and ensure pipework is routed to the rear of the toilet
- Straight or 90-degree discharge port for easy install
- Quick release system allows for fast and easy removal of discharge pumps and hoses when servicing is necessary
- C-Clip design releases pump assembly from the toilet base without the need for tools, resulting in fast service tim
- Stylish, low-profile design
- Touch-sensitive operation
- Eco flush, full flush, or empty functions
- Only 1-liter (1-quart) per flush using eco mode
- Designed for wet room installations
- No spill ‘empty’ feature to leave bowl dry when the boat is in motion
Specifications
| Bowl Size |
Compact |
| Seat & Lid |
Wood |
| Slow-Close Lid |
No |
| Water Type |
Sea, river, and lake water |
| Device |
Rinse pump |
| Flush Control Switch |
Touch Panel |
| Voltage |
24V DC |
| Recommended Fuse Size |
25 AMP |
| Dimensions (H × W × D) |
14 × 13.9 × 16.3 in (355 × 352 × 415 mm) |
| Weight |
34.2 lbs (15.5 kg) |
What our Experts Think
-
Premium Marine Toilet Design: Quiet Flush E2 delivers reliable electric flushing with a compact bowl tailored for tight head spaces on boats and marine vessels.
-
Smooth & Convenient Operation: Touch‑sensor control panel offers three settings — including an eco‑friendly flush that uses minimal water.
-
Soft‑Close Lid: Enhanced comfort and reduced noise with a gentle close seat and lid.
-
Easy Installation Flexibility: Rotatable base and pump allow discharge orientation to left, right, or rear for versatile setup.
-
Tool‑Free Servicing: Quick‑release C‑Clip design lets you access the pump and discharge hose without tools, reducing maintenance time.
-
Raw Water Rinse: Designed to pull sea, lake, or river water for flushing, balancing performance and freshwater conservation.
Q&A
Q1: What type of toilet is this?
A: A 24 V electric marine toilet with a compact bowl and soft‑close lid, designed for raw water flushing on boats.
Q2: How easy is installation?
A: Designed for flexibility — the base and discharge pump can rotate to fit tight spaces, and straight or 90° discharge ports simplify plumbing.
Q3: How is it operated?
A: Features a touch sensor control panel with three modes: eco flush, full flush, and empty.
Q4: Does it conserve water?
A: Yes — eco mode can use as little as 1 liter per flush, helping reduce water use.
Q5: How easy is maintenance?
A: Quick‑release design lets you detach the discharge pump and hoses without tools for fast service.
Q6: What water sources can it use?
A: Uses raw water (sea, river, or lake) for flushing.
Q7: What are key specs?
A: Compact bowl size, 24 V DC operation, recommended 25 A fuse, ~34 lbs weight, ~16.3″ depth.
Maintenance Tips
-
Regular Cleaning: Wipe the bowl and exterior with a soft cloth and non-abrasive cleaner; avoid harsh chemicals that can damage seals.
-
Hose & Fitting Inspection: Check hoses, clamps, and connections for leaks, wear, or corrosion; replace as needed.
-
Pump & Macerator Care: Flush periodically with fresh water to prevent buildup and odors.
-
Electrical Check: Ensure wiring and terminals are secure and free of corrosion.
-
Operational Test: Run the toilet regularly to verify proper flushing and smooth lid function.
