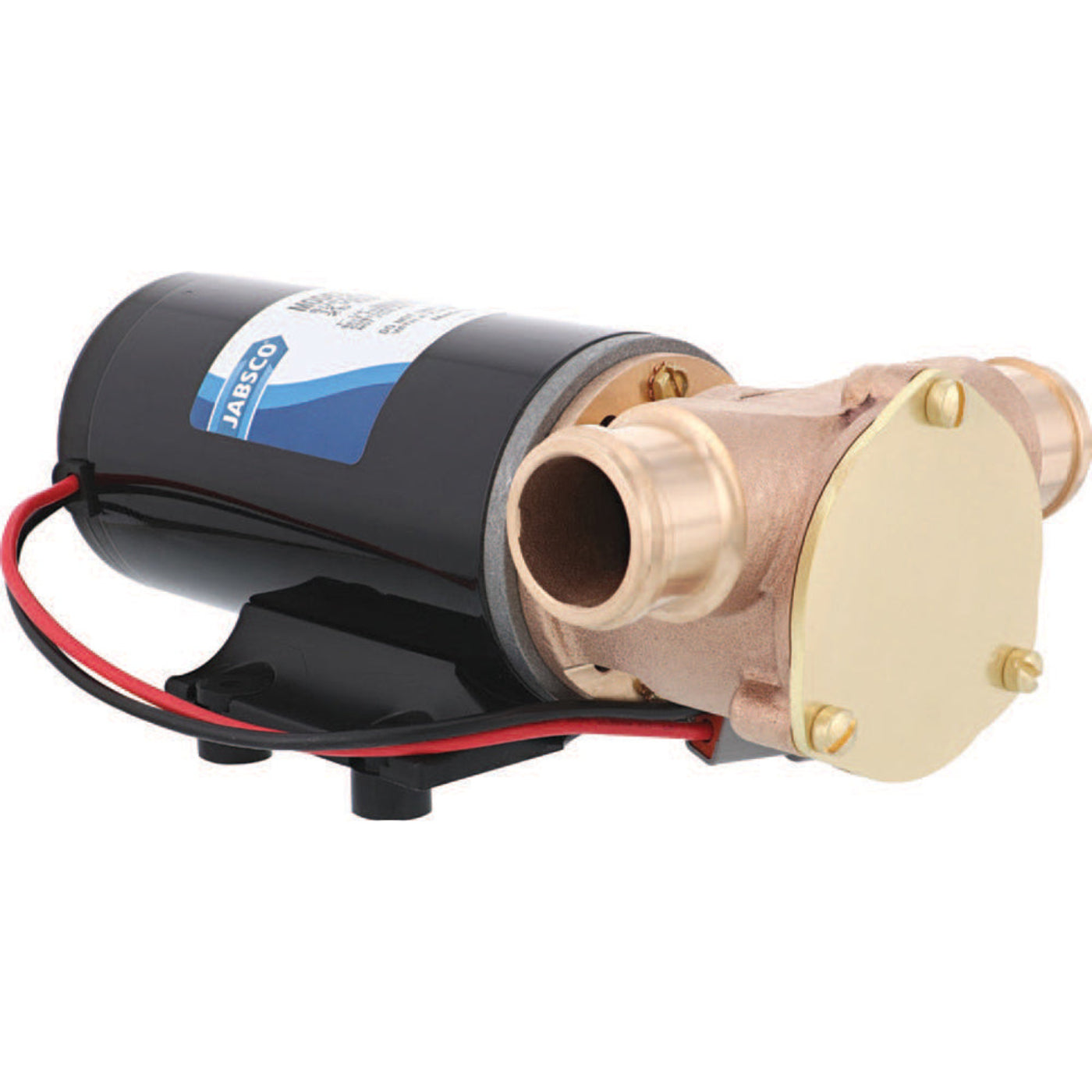

Jabsco Ballast SuperKing Pump w/Deutsch Connector - 20 GPM - CWR-105998
When you’re having fun on a wakeboard, skis, or a tube, a bigger wake will create a more exhilarating ride. Xylem’s Jabsco ballast pumping systems, including the Ballast Puppy, Ballast King, and Ballast SuperKing, make taking on weight easy with tanks that rapidly fill at the touch of a button. Systems can be emptied quickly as well.
Features
- Run dry impellers
- Flow rates 9-25 gallons per minute (GPM) or 34-95 liters per minute (LPM)
- Adds approximately 80-200 pounds (36-91 kgs) of ballast water per minute
- Self-priming to 3 or 4 feet (0.9 or 1.2 meters)
- All comply with USCG 183.410 and ISO 8846 Marine (Ignition Protection)
- Reversing Polarity Switch available (Puppy and King products only)
Specifications
| Motor Design |
Brushed, permanent magnet TENV |
| Pumphead Upper Housing Material |
Glass fiber reinforced polypropylene |
| Diaphragm |
Co-molded TPV |
| Check Valves |
EPDM |
| Max Inlet Pressure |
30 PSI (2.1 Bar) |
| Fluid Temperature Range |
32°F – 140°F (0°C – 60°C) |
| Dry Self-Priming Capability |
7 ft min (2.1 m min) |
| Certifications |
CE, ISO8846, RCM |
| Ingress Protection |
IPX6 |
What our Experts Think
-
High‑Flow Ballast Performance: Delivers up to 20 GPM, capable of rapidly moving water into or out of ballast tanks for wake shaping and weight management.
-
Deutsch Connector: Robust marine‑grade electrical connection simplifies wiring and enhances corrosion resistance.
-
Self‑Priming Design: Capable of self‑priming up to about 3–4 ft, ensuring reliable operation even after downtime.
-
Run‑Dry Impellers: Built‑in run‑dry capability protects the pump during intermittent use.
-
Marine Safety Compliance: Meets marine ignition protection and safety standards, including USCG 183.410 and ISO 8846.
-
Compact, Durable Build: Hose barb ports and rugged construction make this an efficient solution for wake and ballast systems.
Q&A
Q1: What is this pump designed for?
A: A high‑performance marine ballast pump for rapidly moving water into or out of ballast tanks on wakeboard, ski, or performance boats.
Q2: What flow rate does it provide?
A: Up to 20 GPM (gallons per minute) to quickly adjust ballast weight.
Q3: What makes this SuperKing model special?
A: Larger capacity and robust design for heavier ballast needs compared to standard Puppy or King pumps.
Q4: Does this version include a reversing switch?
A: No — this model has a Deutsch electrical connector but no reversing switch included.
Q5: How durable is the construction?
A: Features run‑dry impellers and corrosion‑resistant marine materials with USCG and ISO ignition protection.
Q6: What plumbing connections does it use?
A: 1¼″ (32 mm) hose barb ports — common for marine ballast plumbing.
Q7: Why choose this pump?
A: Delivers stable, high‑volume water transfer and reliable operation for demanding marine ballast systems.
Maintenance Tips
-
Regular Inspection: Check hoses, clamps, and fittings for leaks, wear, or corrosion; tighten or replace as needed.
-
Electrical Check: Inspect Deutsch connector and wiring for secure, corrosion-free connections.
-
Pump Cleaning: Flush with fresh water periodically to remove salt, debris, or scale buildup.
-
Lubrication: Apply manufacturer-recommended lubrication to moving parts if specified.
-
Operational Test: Run the pump regularly to confirm proper flow and listen for unusual noises.
