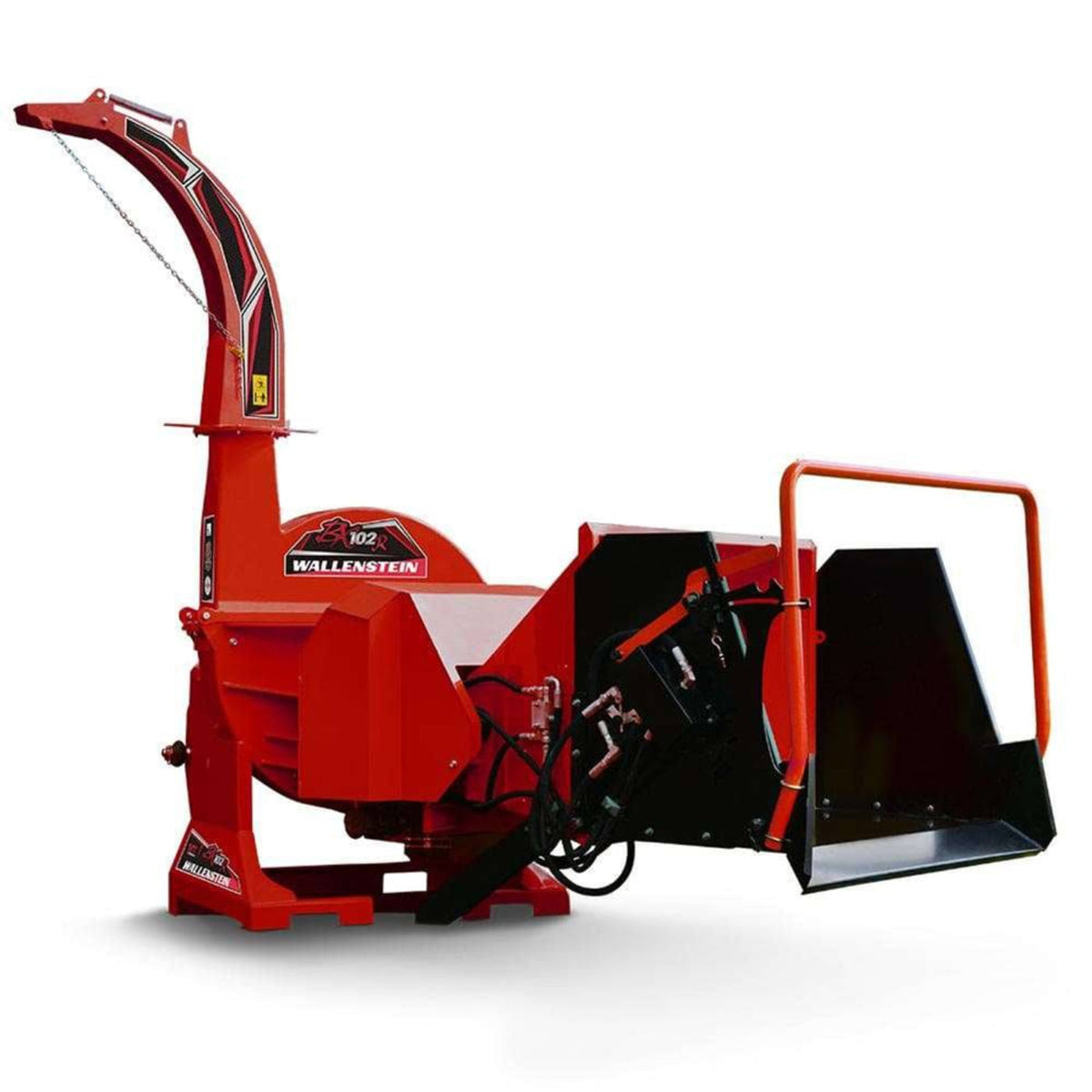

Wallenstein BX102R Chipper PTO Driven 10" Capacity

Wallenstein BX102R Chipper

This is the Wallenstein BX102R chipper that is designed with a 10-inch limb capacity and operates with a PTO. The recommended tractor horsepower range is 80-120 for optimal performance.

Features

• Slab style opening
• Reversible chipping blades
• Safety control bar
• Hydraulic feeding hopper
• Dual active rollers
• Shearbolt protected PTO drivetrain
• Oversized heavy-duty rotor
• iMatch quick hitch compatible
• 360 degree adjustable

What Our Experts Think

• The Wallenstein BX102R is a PTO‑driven wood chipper with a 10‑inch diameter capacity, ideal for processing substantial limbs and brush.

• Features a dual hydraulic roller feed system for controlled and consistent material intake.

• Equipped with a 36‑inch rotor and direct PTO drive (540‑1000 RPM) for durability and performance.

• Designed for high‑power tractors (80‑120 HP) suitable for large-scale clean-up or woodlot operations.

Q&A

Q: What maximum branch diameter can it chip?
A: Up to 10 inches.

Q: What type of feed system does it use?
A: Dual hydraulic roller feed that pulls material into the rotor.

Q: What tractor power is required?
A: 80‑120 HP.

Q: What is the drive and RPM specification?
A: Direct PTO drive, 540‑1000 RPM.

Maintenance Tips

• Check rotor knives regularly; replace or reverse when worn to maintain chip quality.

• Maintain hydraulic feed components (hoses, rollers) to prevent jams.

• Inspect PTO driveline (shaft, shear bolt) regularly to handle heavy-duty use.

• Keep the discharge chute clear and properly oriented for safe and efficient operation.
