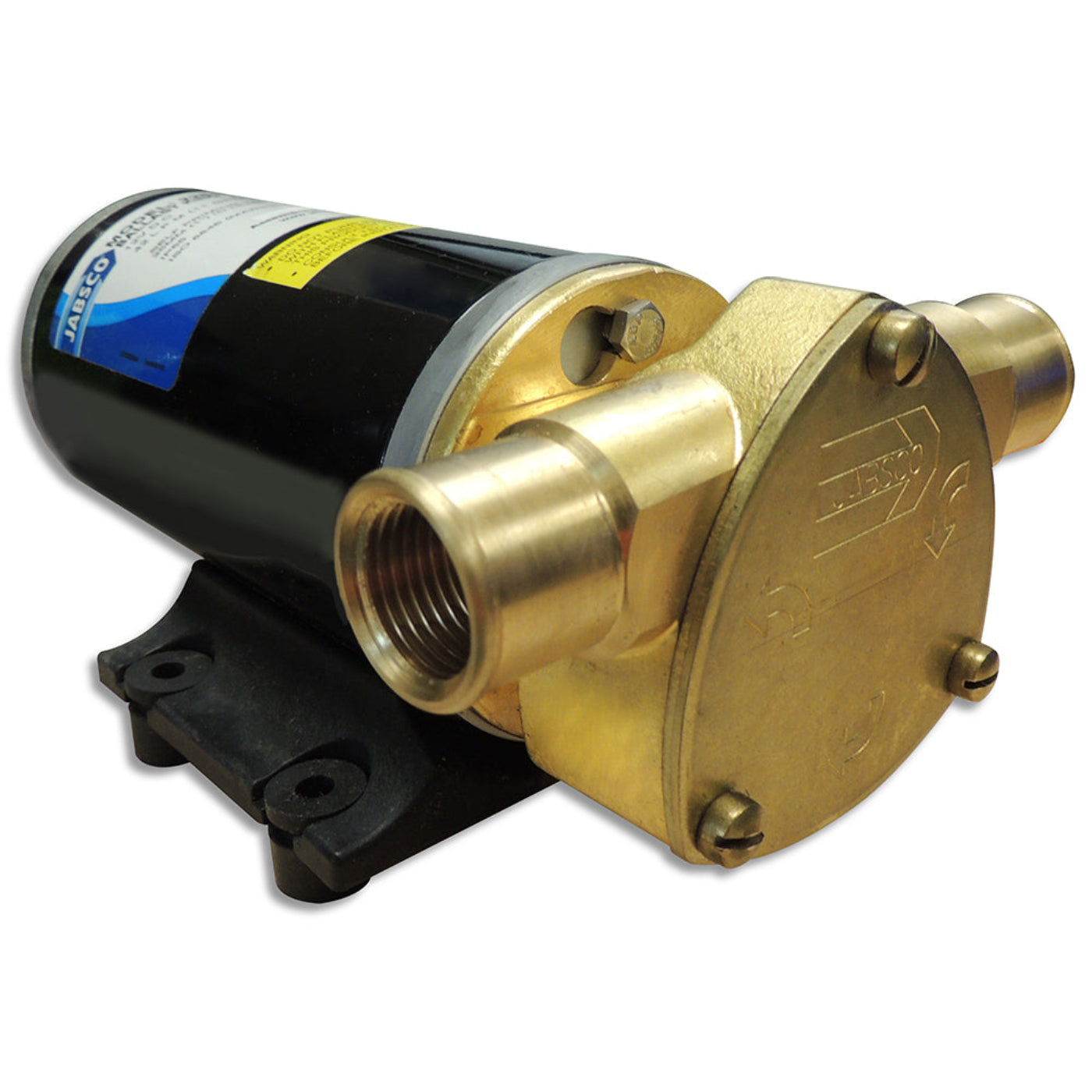

Jabsco Ballast King Bronze DC Pump w/Reversing Switch - 15 - CWR-75413
Ballast King Bronze DC Pump with Reversing Switch - 15 GPM
Wakeboard and Ski Boat Ballast Pump
Features
- Flow rate: 15 US gallons/min (57 Litres/min)
- Self-priming from dry up to 1.2m (4ft)
- Adds approx 125lbs (56kgs) of ballast per minute
- Reversible to both fill and empty tanks
- Simple design means fewer wearing parts.
- ISO 8846 MARINE (Ignition protection).
Specifications
| Body Material |
Bronze |
| Impeller |
Jabsco Neoprene Compound |
| Seal Type |
Lip Type |
| Ports |
1/2" Internal Pipe Threads, 1" External Hose Barb |
| Voltage |
12 VDC |
| Amp Draw |
19 Amp |
| Fuse Size |
25 Amp |
| Motor Type |
Permanent Magnet Motor, Fully Enclosed Stainless Steel Shaft, Ball Type Shaft Bearing, Reversible, Run-Dry Protection Device |
| Duty Cycle |
30 Minutes Maximum |
| Flow Rate |
15 GPM |
| Dimensions |
3 5/8" × 8" × 4 3/4" |
| Box Dimensions |
6" H × 6" W × 12" L |
| Box Weight |
8.6 lbs |
| UPC |
671880628846 |
What our Experts Think
-
Versatile Ballast Control: Reversible pump fills and empties wakeboat ballast tanks with ease, eliminating the need for multiple pumps.
-
Strong 15 GPM Flow: Delivers up to 15 gallons per minute (≈57 L/min) for fast ballast adjustments.
-
Self‑Priming Performance: Self‑primes from dry up to 4 ft (1.2 m), ensuring reliable operation even after inactivity.
-
Durable Bronze Build: Bronze body and neoprene impeller resist corrosion in marine environments.
-
Run‑Dry Protection: Patent‑pending device automatically shuts off to protect the impeller when running dry.
-
Marine‑Certified Safety: ISO 8846 ignition protection ensures compliant and safe onboard use.
Q&A
Q1: What is this pump designed for?
A: A marine ballast pump engineered to fill and empty wakeboard and ski boat ballast tanks efficiently.
Q2: What flow capacity does it offer?
A: Delivers up to 15 US gallons per minute (57 L/min) for rapid ballast adjustments.
Q3: What does the reversing switch do?
A: The reversing switch lets you both fill and empty ballast tanks with a single pump.
Q4: What voltage and power specs does it require?
A: Operates on 12 V DC, with a 19 amp draw and a recommended 25 amp fuse.
Q5: Is it self‑priming?
A: Yes — self‑primes from dry up to about 1.2 m (4 ft) depth.
Q6: What materials and protection features does it include?
A: Bronze body, neoprene impeller, run‑dry protection device, and ISO 8846 marine ignition protection.
Q7: Why choose this ballast pump?
A: Designed for fast, reliable water transfer, fewer wearing parts, and both fill/empty functionality — ideal for wake and watersport boat ballast systems.
Maintenance Tips
-
Regular Inspection: Check hoses, clamps, and fittings for leaks, wear, or corrosion; tighten or replace as needed.
-
Electrical Check: Inspect wiring, terminals, and the reversing switch for corrosion or loose connections to ensure reliable operation.
-
Pump Cleaning: Flush with fresh water regularly to prevent salt, debris, or scale buildup inside the pump.
-
Lubrication: Apply recommended lubrication to moving parts if specified in the manual.
-
Operational Test: Run the pump periodically to verify flow direction and performance; listen for unusual noises.
