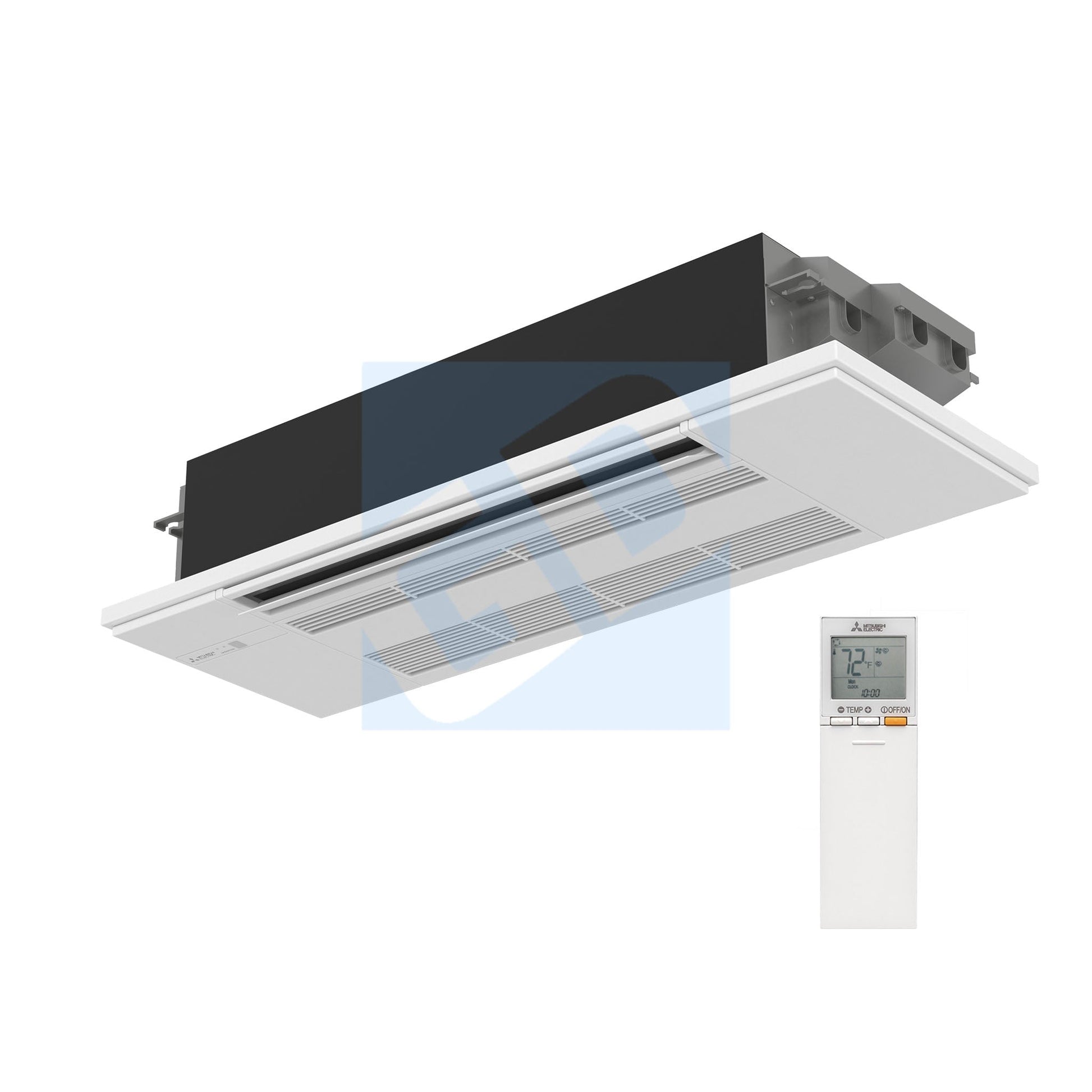

Compact Ceiling Climate Solution: The Mitsubishi MLZ‑KY06NA 6,000 BTU One‑Way Ceiling Cassette is a ductless, recessed indoor unit that delivers quiet, efficient cooling (6 000 BTU) and heating (7 200 BTU) for smaller zones like bedrooms or offices when paired with a compatible outdoor heat‑pump system.

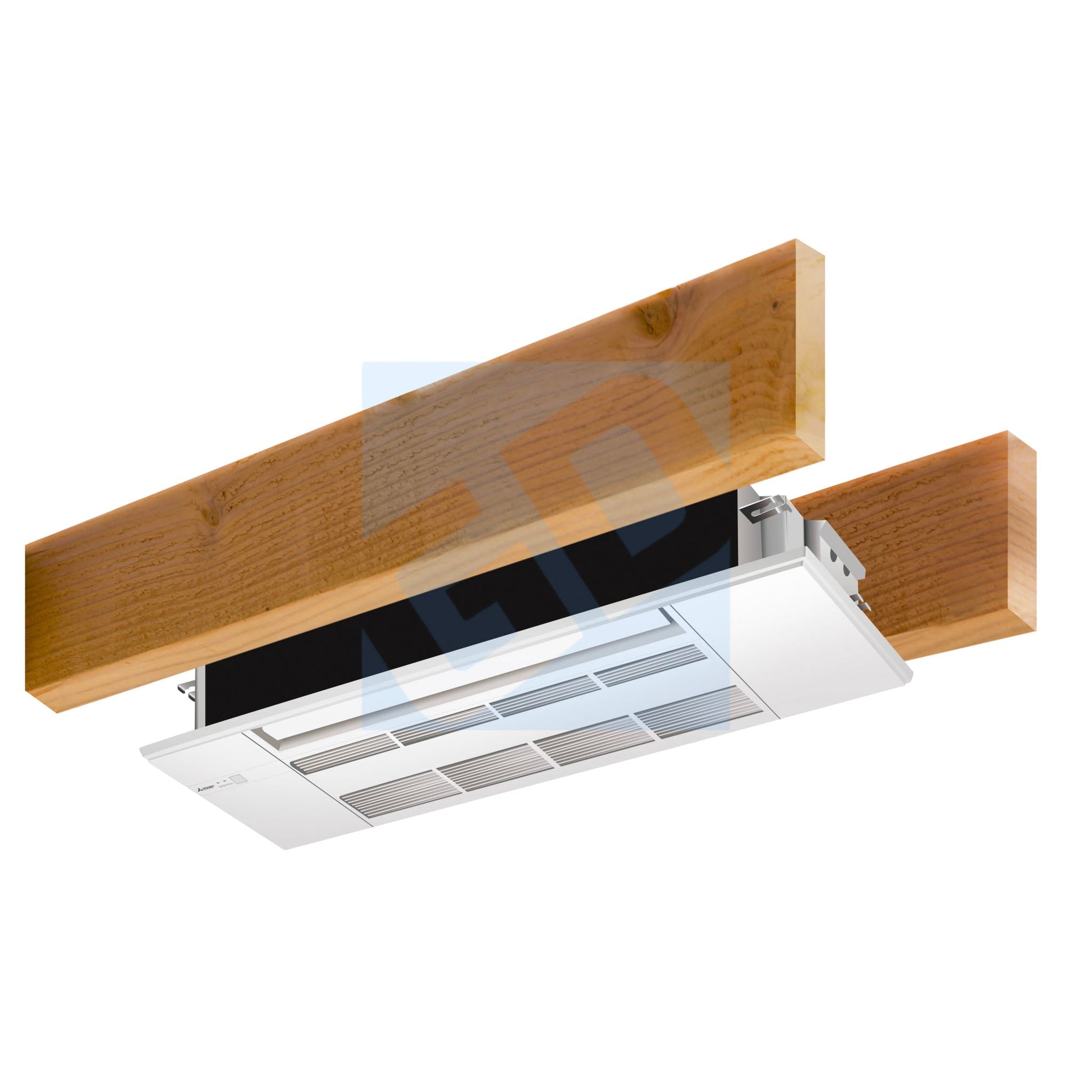

Flush, Low‑Profile Installation: Designed to fit between standard ceiling joists for a clean, discreet look with minimal intrusion into interior space — ideal where wall space is limited.
Balanced Airflow & Comfort: Adjustable fan speeds and vane directions let you tailor airflow for targeted comfort, while multi‑stage filtration with a washable antibacterial filter helps maintain cleaner air.
Smart Control Options: Works with the included hand‑held remote controller and can integrate with the kumo cloud app or third‑party controllers for convenient scheduling and remote access.
Practical Drain & Service Features: Built‑in condensate lift mechanism (about 19.6 in) and bottom‑accessible service panel make installation and maintenance easier for HVAC professionals.
Quiet, Efficient Operation: Typical airflow ranges and residential sound levels make it well‑suited for living spaces without distracting noise.
Expert Verdict: A feature‑rich, high‑quality ceiling cassette that blends compact design, flexible airflow control, and smart connectivity — perfect for comfort‑focused installations where wall‑mount units are impractical.
Q&A
Q: What type of HVAC unit is this? A: It’s a 6,000 BTU one‑way ceiling cassette indoor unit designed to mount in the ceiling and connect with a compatible outdoor heat‑pump system.
Q: What cooling and heating capacities does it offer? A: Rated for 6,000 BTU/h cooling and approx 7,200 BTU/h heating when paired with a compatible outdoor unit.
Q: What installation options does this unit support? A: It’s a recessed ceiling cassette designed to fit between standard I‑joist ceiling spacing for a clean, low‑profile look.
Q: What features enhance comfort and performance? A: Adjustable fan speeds and vane directions, washable antibacterial/deodorizing filter, and built‑in condensate lift pump (≈19.6″) for flexible drain routing.
Q: How is it controlled? A: Includes a hand‑held remote and supports control via kumo cloud® smart device app or wired/wireless interfaces (optional).
Q: What are its electrical requirements? A: Runs on 208/230 V AC, single‑phase, 60 Hz with a guaranteed voltage range of 187–253 V and low current draw (~1 A MCA).
Q: What airflow and noise performance can be expected? A: Airflow ranges roughly 152–212 CFM, and sound levels vary around 29–36 dB(A) depending on fan speed.
Q: What refrigerant does it use? A: Designed for R‑410A refrigerant systems when paired with a compatible outdoor unit.
Q: What are typical applications? A: Ideal for bedrooms, offices, living areas, or small zones where wall units aren’t desired, delivering efficient cooling/heating with a flush ceiling design.
Maintenance Tips
Regular Filter Cleaning: Clean the washable antibacterial air filter every 2–4 weeks (or more often in dusty environments) to maintain airflow and efficiency. Clogged filters reduce performance and increase energy use.
Keep Air Intake Clear: Ensure the air intake and discharge areas are free from obstructions (like insulation, debris, or storage boxes) to promote airflow and prevent strain on the fan and motor.
Check Condensate Drainage: The built‑in condensate lift mechanism needs unobstructed drainage. Periodically inspect and clean drain lines/pans to prevent water buildup and potential overflow issues.
Inspect Coils Annually: Have a qualified HVAC technician inspect and clean the indoor coils annually to remove dust or buildup that can reduce heat transfer and strain the system.
Watch for Unusual Noises: Clicking, popping, or drips can be signs of airflow or condensate issues. If persistent, consult your installer or technician rather than attempting internal repairs.
Keep Outdoor Unit Clean: If paired with an outdoor compressor, keep that unit free of leaves, dirt, and debris to maintain efficient heat exchange and prolong system life.
Professional Servicing: Schedule annual professional maintenance to check refrigerant levels, electrical connections, fan operation, and overall performance.
