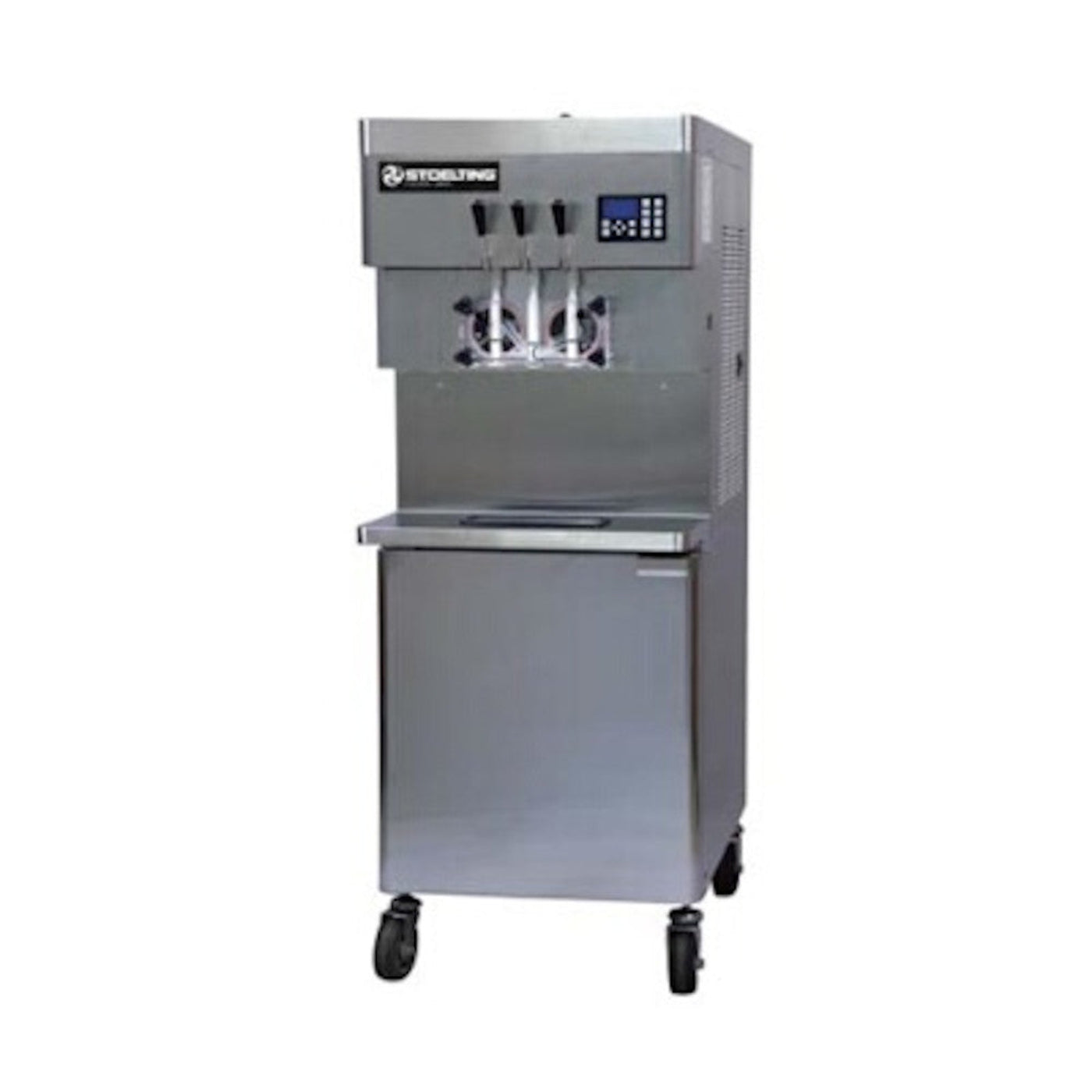

Sharp U431-309I2A Air Cooled Soft-Serve Freezer with Pull Down Handles - SEU431309I2A

Sharp U431-309I2A Air Cooled Soft-Serve Freezer with Pull Down Handles - SEU431309I2A

The Stoelting U431-309I2A Soft-Serve Freezer is ideal for producing a thick, smooth, and creamy product during peak times. With a highly efficient auger design, it gently folds the entire contents of the freezing cylinder to deliver consistently delicious results. The spigot is self-closing to reduce waste and ensure precision portion control. It maintains a consistent temperature and has a fast evaporator defrost. It has two freezing cylinders which hold 5.32-quarts a piece and two 32-quart hoppers.

This U431-309I2A can produce up to two flavors and offers a twist combination for customers. It allows for self-serve applications.

This Soft-Serve Freezer includes factory start-up.

Features

• Air cooled
• Pull down handles
• Refrigerated mix storage base cabinet with (3) drawers accommodate (6) 5 gallon mix bags
• (2) flavors with twist
• Pressurized
• IntelliTec2 controls with LCD display
• Mix pumps
• Energy conservation mode
• Self-sharpening
• Nonmetallic auger flights
• Bottom sealing spigots
• Overcurrent protection devise (per barrel)
• Delrin food grade plastic blades provide quiet operation and superior durability
• Simplified design for quick assembly after cleaning
• Adjust the dispense rate to meet your requirements
• Clear door displays circulating product for merchandising appeal
• Efficient freezing cylinder and auger design delivers a consistently uniform product with small ice crystals and a quick recovery time
• Highly efficient auger design gently folds the entire contents of the freezing cylinder, delivering a thick, smooth, and creamy product
• Self-closing spigot eliminates waste and ensures precise portion control
• Pump approved for clean-in-place, reducing cleaning time and labor requirements
• Compact floor unit design saves valuable floor space
• Long-wearing parts offer lower preventative maintenance costs
• Tamper-proof controls for self-serve applications
• Maintains constant temperature with fast evaporator defrost
• Reliable and quiet with the combination of Stoelting’s evaporator system and the Scroll compressor
• Mix pumps inject the exact amount of air into your mix, maintaining overrun to ensure maximum profitability
• Factory start-up included

What our Experts Think

• Built for high-volume frozen treat service
  The air-cooled, pressure-fed soft-serve freezer delivers up to ~19 gallons per hour per side, ideal for busy ice cream shops, cafés, and dessert counters.
• Dual-flavor & twist flexibility
  Serve two independent flavors or a combined twist from one floor-standing unit, expanding menu appeal without extra equipment.
• Commercial reliability & control
  IntelliTec2™ controls and Energy Conservation Mode help maintain consistent texture while reducing over-agitation and energy use during slow periods.
• Refrigerated mix storage
  Built-in cabinet refrigeration keeps mix at safe temps before freezing, reducing the need for separate cold storage.
• Durable design with operator convenience
  Floor model with pull-down handles, clear doors for merchandising, and self-closing spigots for precise portioning and less waste.

Q&A

Q: What is the Sharp U431-38I2 Soft-Serve Freezer?
A: A commercial air-cooled soft-serve freezer with two 32-quart hoppers and dual freezing cylinders for producing two flavors plus twist soft-serve ice cream, yogurt, or dessert mixes.

Q: What type of operation and capacity does it offer?
A: This floor model features pressure-fed delivery, adjustable dispense rate, and refrigerated cabinet that holds two 32-qt mix containers with two 5.3-qt freezing cylinders for continuous production.

Q: How is it cooled and powered?
A: It uses an air-cooled refrigeration system and operates on 208–240 V single-phase power, making it suitable for medium-volume commercial environments.

Q: What performance and control features does it include?
A: The freezer includes IntelliTec2™ tamper-proof touchpad controls, self-closing spigots, and adjustable dispense settings for consistent product quality.

Q: What certifications and safety features does it have?
A: It carries NSF and cUL/UL certifications for sanitation and electrical safety compliance in commercial foodservice.

Q: What environments is this unit best for?
A: Ideal for ice cream shops, restaurants, cafeterias, and hospitality venues that need reliable dual-flavor soft-serve production with continuous service capability.

Q: Why choose this model?
A: With dual flavor/twist capability, robust air-cooled design, high-capacity hoppers, and commercial-grade controls, it delivers consistent performance and flexibility for busy dessert operations.

Maintenance Tips

• Clean and sanitize hoppers, freezing cylinders, drip trays, and spigots daily after service to prevent buildup and contamination.
• Wipe exterior and accessible interior surfaces with food-grade sanitizer during operation hours.
• Flush mix lines and air bleed valves with approved cleaning solution to clear residual product.
• Keep the air-cooled condenser and vents clean and dust-free to ensure efficient cooling and avoid overheating.
• Ensure proper ventilation around the unit for optimal airflow and performance.
• Check self-closing spigots and seals regularly for wear; replace if leaking or sticky.
• Test IntelliTec2 controls, standby/sleep modes, and safety switches routinely for reliable operation.
• Disconnect power before servicing to prevent injury.
• Dry all components thoroughly before reassembly to avoid corrosion and bacterial growth.
