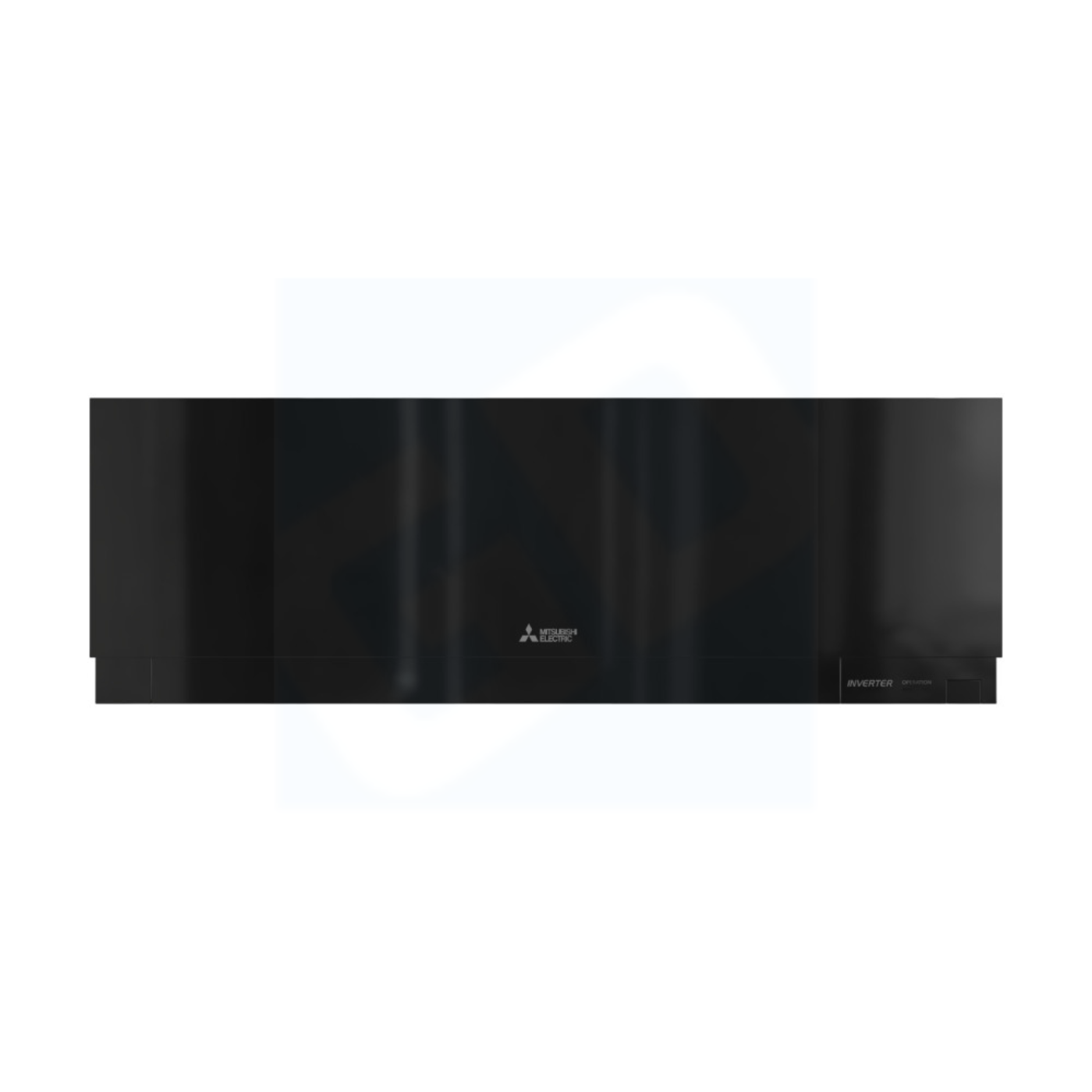

Mitsubishi MSZ-EX09NLB 9,000 BTU Wall Mounted Indoor Unit - R454B - MSZEX09NLB
The MSZ‑EX09NLB indoor unit delivers efficient 9,000 BTU heating and cooling (10,000 BTU heating nominal). Powered by R‑454B refrigerant and DC inverter technology, it ensures quiet, energy-wise comfort with advanced filtration and corrosion-resistant features.
This system is not compatible with Mitsubishi’s smart outdoor units.System Type: Wall-mounted ductless indoor air handler (requires standalone condenser)
Model: MSZ‑EX09NLB
Capacities: 9,000 BTU Cooling | 10,000 BTU Heating (nominal)
Room Size: Ideal for ~350 sq ft
Operating Modes: Heating & Cooling
ENERGY STAR: Yes
Refrigerant / Factory Charge: R‑454B (pre‑charged)
Features
-
INVERTER/DC Fan Motor: DC inverter and fan motor for precise, quiet, energy-efficient operation
-
Dual Barrier Coating: Reduces dust, smoke, and oil buildup on heat exchanger
-
Advanced Filtration: Hybrid catechin nano‑platinum filter captures and neutralizes allergens
-
Econo Cool Mode: Enhances cooling efficiency by adjusting airflow and set-point
-
Smart Set & Wi‑Fi Ready: Save preferred settings and control via Comfort app, remote, or wired controller
-
Sleek Design & Color Options: Slim profile (7.7 in. depth) available in black (MSZ-EX09NLB), silver (MSZ-EX09NLS), or white (MSZ-EX09NLW)
-
Smart Compatibility Notice: Not compatible with smart outdoor models
Specifications
| Cooling Capacity |
9,000 BTU/h |
| Heating Capacity |
10,000 BTU/h (nominal) |
| Airflow (Cooling Dry) |
143–391 CFM |
| Airflow (Heating Dry) |
143–448 CFM |
| Sound (Cooling) |
21–42 dB(A) |
| Sound (Heating) |
21–45 dB(A) |
| Power |
208/230 V, 1‑Phase, 60 Hz |
| MCA |
1 A |
| MOCP |
15 A |
| Dimensions (W×D×H) |
34‑13/16″ × 7‑11/16″ × 11‑3/4″ |
| Weight |
26 lb |
| Piping |
Liquid: ¼″; Gas: ⅜″; Drain: ⅝″ O.D. |
Included
-
Indoor Unit: MSZ‑EX09NLB wall-mounted air handler
-
Wireless Remote Controller
-
Standard Installation Accessories (bracket, lineset, filters)
What our Experts Think
-
Efficient 9,000 BTU Performance: The Mitsubishi MSZ‑EX09NLB 9,000 BTU Wall‑Mounted Indoor Unit delivers reliable heating and cooling performance suited for rooms up to ~350 sq ft, pairing well with a compatible outdoor condenser.
-
Sleek, Space‑Saving Design: Its slim wall‑mounted profile blends seamlessly into modern interiors while maximizing usable floor space.
-
Quiet, Inverter‑Driven Comfort: Inverter DC fan motor ensures precise temperature control with whisper‑quiet operation and efficient energy use.
-
Dual Barrier Coating: Patented coating helps reduce dust, smoke, and oil buildup, improving airflow and simplifying cleaning and maintenance.
-
Econo Cool Mode: Automatically adjusts airflow to save energy while maintaining comfort, boosting efficiency in cooling mode.
-
Multiple Control Options: Includes a back‑lit remote controller and offers compatibility with Mitsubishi Comfort app, third‑party interfaces, and wired or wireless controllers.
-
Advanced Filtration: Hybrid filters help reduce allergens and airborne contaminants, enhancing indoor air quality.
-
Expert Verdict: A versatile and energy‑efficient indoor unit that delivers quiet, balanced comfort and flexible control — ideal for residential rooms where dependable climate control and discreet design matter.
Q&A
Q: What type of unit is the MLZ‑KX18NL?
A: It’s a 6‑way one‑way ceiling cassette indoor air handler designed for ductless mini‑split HVAC systems (indoor unit only; grille & outdoor unit sold separately).
Q: What capacity does it deliver?
A: The unit is rated at 18,000 BTU nominal output, with typical cooling capacity around 16,400 BTU/h and heating capacity near 19,000 BTU/h when paired with a compatible outdoor heat pump.
Q: What refrigerant does it use?
A: This model is designed for R‑454B refrigerant, a lower‑GWP alternative used in modern Mitsubishi systems.
Q: What installation type does it support?
A: It fits flush into a recessed ceiling installation, designed to fit between standard 16″ on‑center joist spacing and creates a clean, low‑profile look.
Q: What airflow and comfort features are included?
A: The MLZ‑KX18NL offers adjustable fan speeds, auto vane control, built‑in condensate lift (≈19.6″), Econo Cool energy‑saving mode, and washable antibacterial/deodorizing filters for improved indoor comfort.
Q: How is it controlled?
A: It includes a hand‑held remote and supports optional wireless, wired, or app‑based control (Comfort App with Wi‑Fi interface).
Q: What are its size and electrical specs?
A: Typical dimensions are about 43‑3/8″ W × 14‑3/16″ D × 7‑5/16″ H with 208/230 V, 1‑phase, 60 Hz power requirements.
Q: What areas are ideal for this unit?
A: Designed for living areas, offices, open spaces, or medium‑to‑large rooms where a ceiling‑mounted ductless solution provides discreet, even air distribution.
Maintenance Tips
-
Clean Air Filter Frequently: Remove and wash the washable filter every 2–4 weeks to maintain airflow and efficiency. Clogged filters reduce performance.
-
Dust Unit Exterior & Louvers: Wipe the unit’s front panel and air louvers with a soft, dry cloth to prevent dust buildup.
-
Keep Airflow Unobstructed: Ensure furniture, curtains, or décor don’t block the airflow intake and discharge for best performance.
-
Check Condensate Drain: Periodically inspect the condensate drain to prevent clogs, moisture buildup, or odor issues.
-
Annual Professional Service: Have a certified HVAC technician inspect and clean internal coils, verify refrigerant levels, check electrical connections, and ensure safe operation.
-
Monitor for Unusual Sounds/Issues: Strange noises, reduced airflow, or odor can signal maintenance needs — contact your installer/technician early.
-
Maintain Proper Clearance: Keep the area around the indoor unit clear to support performance and easy access for service checks.
