Allows the M-Series indoor units to communicate with the CITY MULTI® Controls Network
-
Dual-setpoint Auto mode can be enabled by dip switch
-
Can turn external heater ON/OFF based on setpoint and room temperature
-
Provides two outputs to allow for the following control scenarios:
-
Equipment Status and Error
-
Equipment Status and Auxiliary Heat Source
-
Equipment Status and Humidifier Control
-
Auxiliary Heat Control and Humidifier Control
-
Note: External 12VDC power supply is required
-
Provides an input to allow remote On/Off control of indoor unit (3-Wire plug adapter included)
-
Allows the M-Series indoor units to connect to CN105 interface via CN505 on the MAC-334IF-E
when using other MAC-334IF functions
• Note: external 12VDC power supply is required
What our Experts Think
-

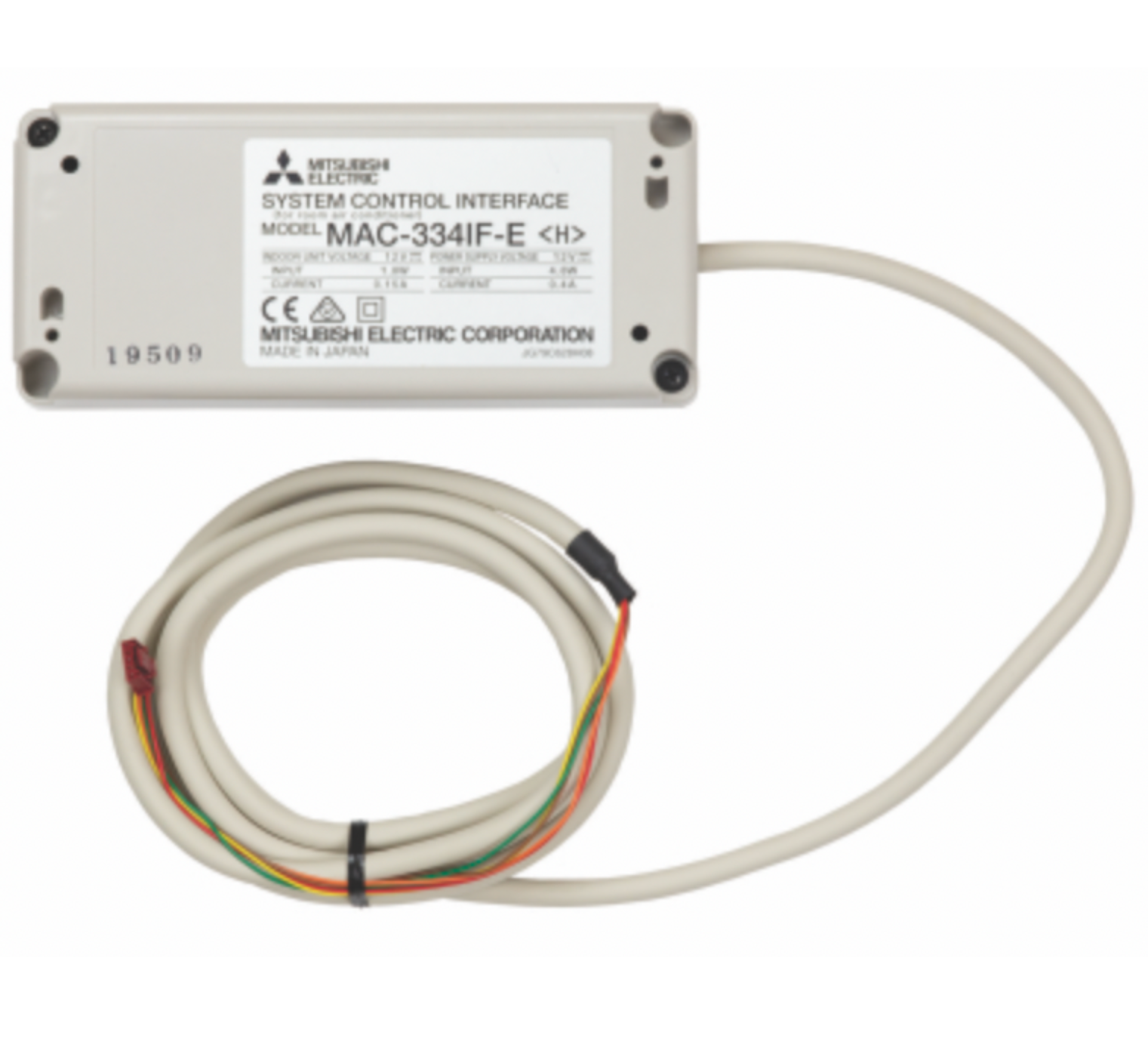

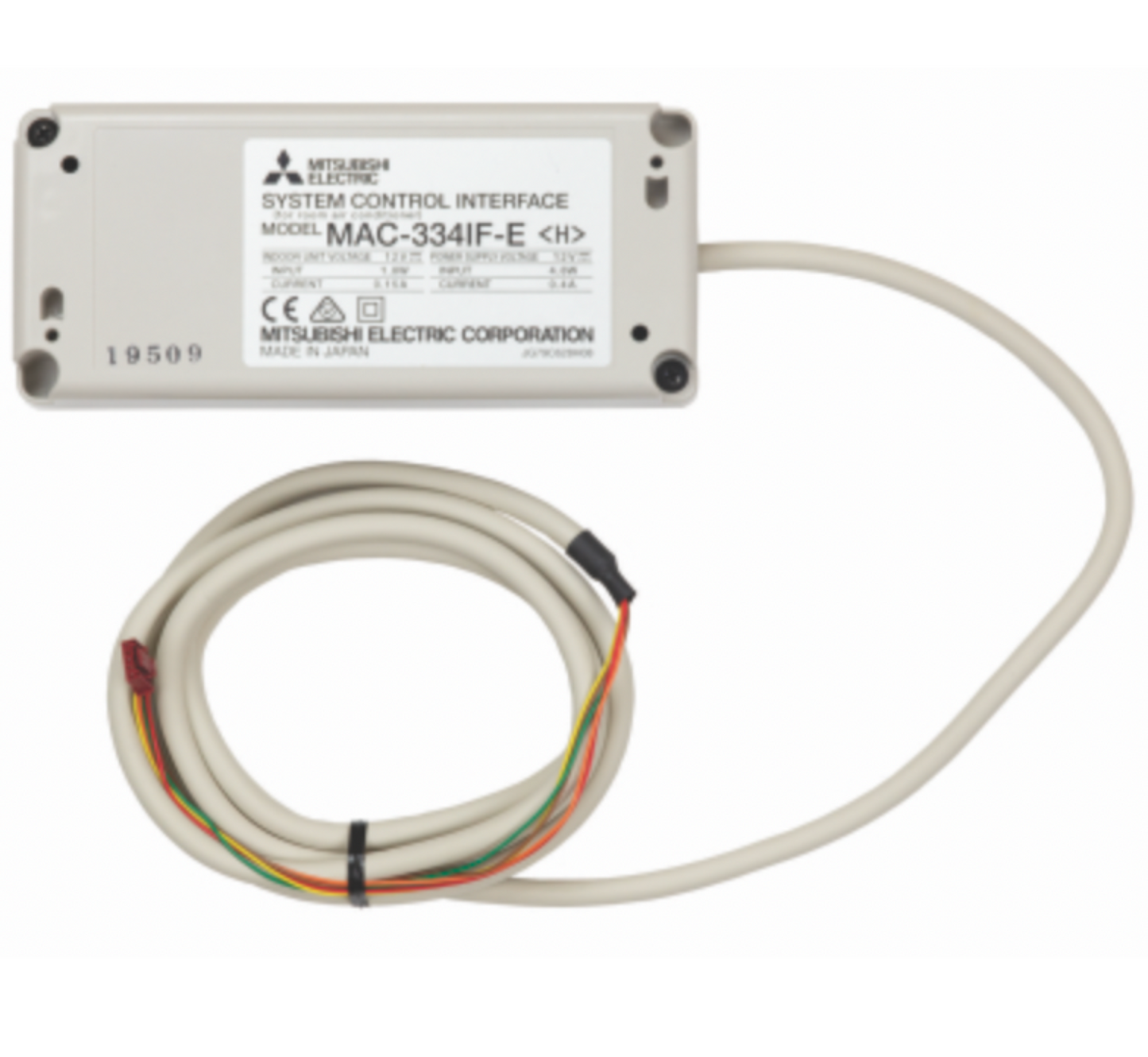

Smart Control Integration Module: The Mitsubishi MAC‑334IF‑E M‑Net & I/O Control Interface enables advanced communication and system control for M‑Series indoor HVAC units, acting as a bridge between the unit and Mitsubishi’s CITY MULTI M‑Net network.
-
Enhanced Connectivity: Allows M‑Series units to connect with centralized controls and building management systems via the M‑Net network, giving installers flexible system design options and better control integration.
-
Remote Control & Automation: Supports remote On/Off control inputs, enabling external switches or third‑party control systems to manage the indoor unit.
-
Advanced HVAC Control Scenarios: Provides configurable outputs for equipment status, error signals, auxiliary heat control, or humidifier control—ideal for integrated HVAC setups or automation systems.
-
Dual Auto Mode Support: Allows automatic switching between heating and cooling modes based on setpoint and ambient temperature (configured via DIP switches).
-
Remote Controller Compatibility: Enables connection to Mitsubishi MA‑series wired remote controllers, expanding traditional control options for M‑Series indoor units.
-
Professional Installation Option: Requires an external 12 V DC power supply for some functions and is typically installed by HVAC professionals to integrate mini‑split units into broader control systems.
Q&A
Q: What is the Mitsubishi MAC‑334IF‑E?
A: The MAC‑334IF‑E is a system control interface module that enables advanced control and network communication for Mitsubishi M‑Series indoor HVAC units.
Q: What key functions does it perform?
A: It allows M‑Series indoor units to communicate with the CITY MULTI® control network via M‑Net, enabling centralized control and system integration.
Q: Can it connect to remote controllers?
A: Yes — it lets compatible M‑Series units connect to MA series remote controllers and provides an input for remote On/Off control via an external signal.
Q: What additional control capabilities does it support?
A: The interface can control external systems such as auxiliary heaters, humidifiers, and equipment status/error outputs using its I/O outputs.
Q: Does it support advanced modes?
A: Yes — it supports Dual Auto mode configuration via DIP switch for automatic switching between heating and cooling based on set and ambient temperatures.
Q: Is additional power required?
A: Some functions require an external 12 V DC power supply to operate properly.
Q: What’s included in the interface setup?
A: It typically includes the MAC‑334IF‑E module with connection cables and mounting hardware for linking to the M‑Series indoor unit and control network.
Q: What are typical installation conditions?
A: Designed for indoor use only (32–104 °F / 0–40 °C) with no condensation, and connects directly to the indoor unit’s communication port.
Maintenance Tips
-
M‑Net connectivity: Enables Mitsubishi M‑Series indoor units to communicate with the CITY MULTI® controls network via M‑Net for centralized system integration.
-
Enhanced control functions: Supports Dual Auto mode, external heater ON/OFF based on set and room temperature, and remote On/Off control input.
-
Flexible outputs: Provides two outputs for equipment status/error, auxiliary heat source control, and humidifier control scenarios.
-
Remote controller support: Allows connection of an MA remote controller and expansion of CN105 connections for advanced control options.
-
Plug‑in expandability: Includes CN105 indoor unit connection cable (external 12 V DC power supply required for full functionality).
-
Indoor‑use design: Operates in ambient temperatures from 32 °F to 104 °F (0 °C – 40 °C) with no condensation.
-
Compact interface module: Small control unit that bridges residential M‑Series units to networked or remote control systems.
