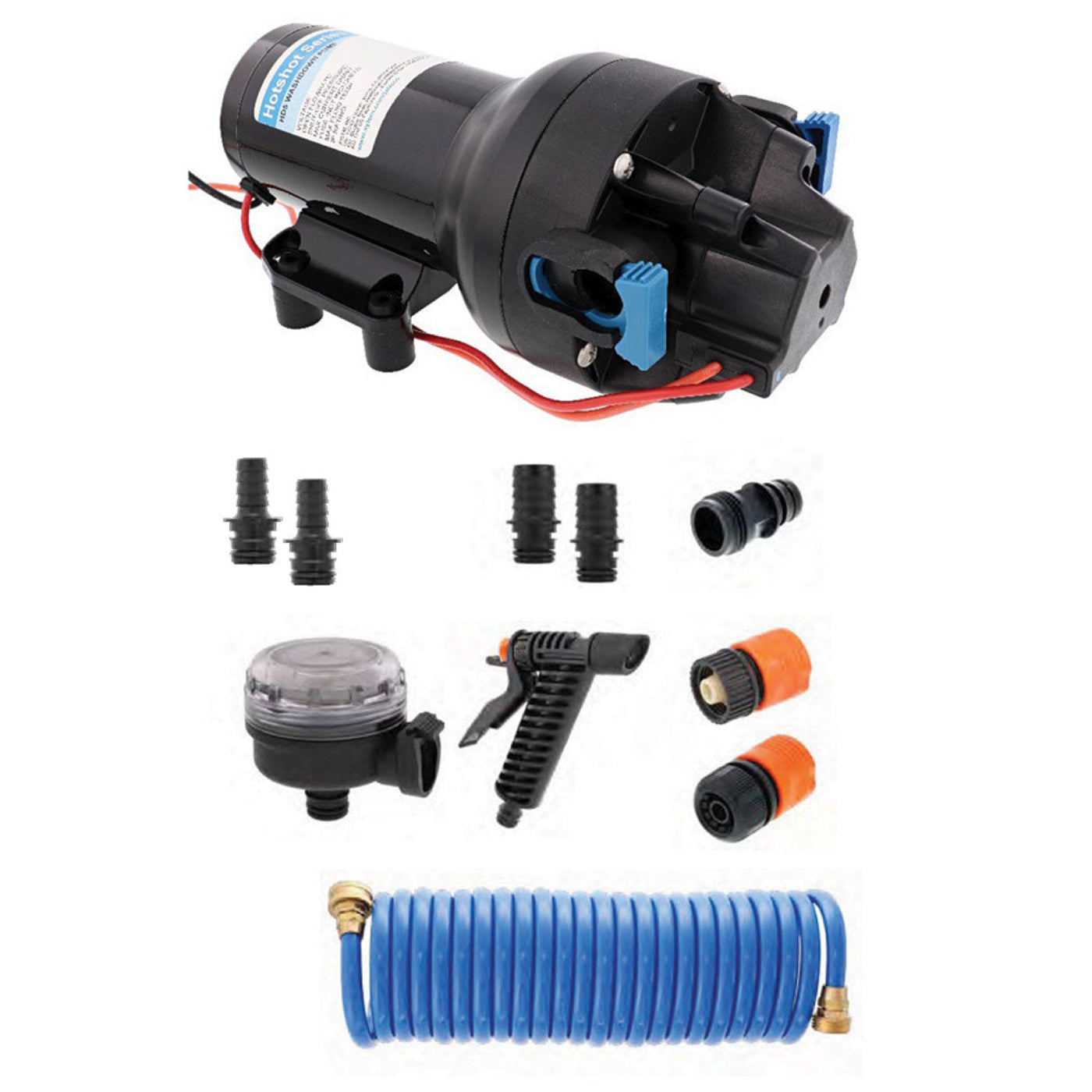

Jabsco HotShot HD5 Heavy Duty Washdown Pump Kit w/25' HoseCoil - 12V - 5GPM - 70PSI - CWR-104682
Years of clean decks and satisfaction in the form of robust and reliable high-flow and high-pressure diaphragm pumps. The Jabsco legacy of exceptional products continues with this updated and improved lineup of washdown pumps and kits.
HD (heavy-duty) models include a wider diameter motor with a powder-coated shell, cast aluminum endbells, and lower housing to improve pressure capability and life.
Standard models provide exceptional performance in an economical footprint. A plastic housing protects the motors from corrosion.
Features
- Co-molded diaphragm technology for long life and durability
- HD models feature heavy-duty, motors and cast aluminum lower housings which allow for long life, even at high pressures
- Efficient and quiet operation
- Integrated, sealed pressure switch for on-demand operation
- Self-priming allows for installation versatility
- Can run dry without damage
- Quick connect ports for ease of installation, servicing, and maintenance
- Vibration dampening mounting feet
- Full kit versions are available which include a 25' (7.6m) HoseCoil
Specifications
| Motor Design |
Brushed, permanent magnet TENV |
| Pumphead Upper Housing Material |
Glass fiber reinforced polypropylene |
| Diaphragm |
Co-molded TPV |
| Check Valves |
EPDM |
| Max Inlet Pressure |
30 PSI (2.1 Bar) |
| Fluid Temperature Range |
32°F – 140°F (0°C – 60°C) |
| Dry Self-Priming Capability |
7 ft min (2.1 m min) |
| Certifications |
CE, ISO8846, RCM |
| Ingress Protection |
IPX6 |
Accessories
- Quick Connect straight hose barb and GHT fittings
- 90° 20 mesh Quick Connect strainer
- Trigger nozzle & Quick Connect hose adapters
What our Experts Think
-
Heavy‑Duty Washdown Power: Delivers up to 5 GPM at 70 PSI for efficient cleaning of decks, equipment, engines, and gear.
-
Ready‑to‑Use Kit: Includes a 25′ HoseCoil and nozzle for on‑the‑spot washdown without extra parts or accessories.
-
12 V DC Marine‑Ready: Designed for standard 12 V systems with corrosion‑resistant components built for marine environments.
-
Reliable Performance: Robust pump design stands up to frequent use and high‑pressure washdown tasks.
-
Easy Installation: Compact, self‑priming pump and included hardware make hookup straightforward.
-
Versatile Use: Ideal for boats, RVs, and outdoor washdown needs where power and portability matter.
Q&A
Q1: What is this product?
A: A complete 12 V heavy‑duty washdown pump kit designed to clean decks, cockpits, anchors, and gear on boats and marine vessels.
Q2: What performance does it deliver?
A: Provides up to 5 GPM (gallons per minute) flow and 70 PSI pressure — strong enough for effective marine washdown tasks.
Q3: What’s included in the kit?
A: Comes with a 25‑foot HoseCoil, trigger nozzle, quick‑connect fittings, and strainer for easy install and washdown use.
Q4: What are the key features?
A: Heavy‑duty motor and cast aluminum housing, co‑molded diaphragm technology, integrated pressure switch, self‑priming, and ability to run dry without damage.
Q5: How does it operate?
A: Integrated sealed pressure switch automatically cycles the pump on demand.
Q6: Is it easy to install?
A: Yes — with quick‑connect ports and vibration‑dampening feet for straightforward mounting and servicing.
Q7: What environments is it built for?
A: Corrosion‑resistant construction with rugged components for marine washdown duties and long service life.
Maintenance Tips
-
Regular Inspection: Check hoses, clamps, fittings, and pump connections for leaks, wear, or corrosion; replace as needed.
-
Electrical Check: Inspect wiring and terminals for secure, corrosion-free connections.
-
Pump & Hose Cleaning: Flush the system with fresh water regularly to remove salt, debris, or buildup.
-
Operational Test: Run the pump periodically to ensure proper flow, pressure, and to detect unusual noises.
-
Storage Care: Coil the hose properly and keep the pump dry when not in use to prevent damage.
