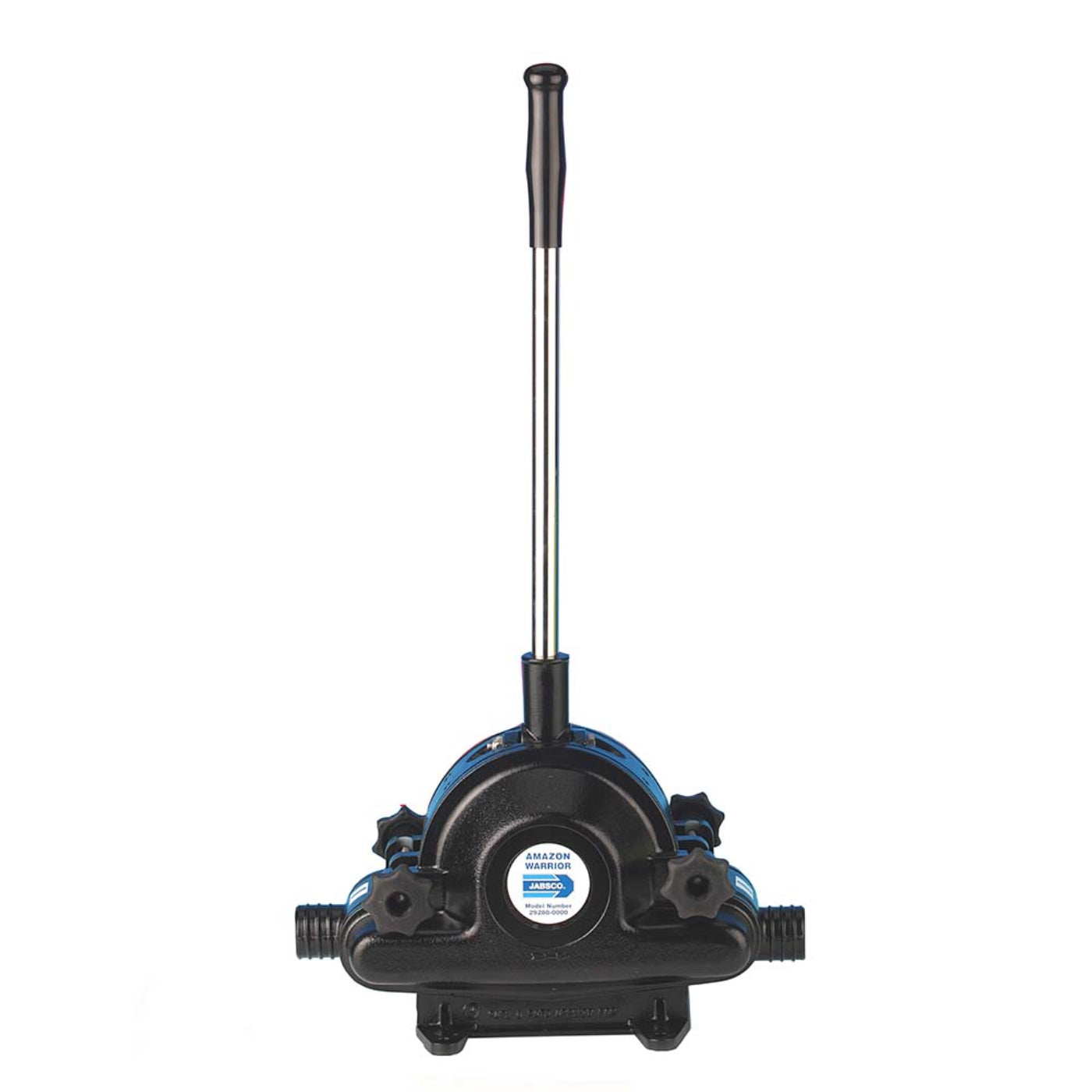

Jabsco Amazon Warrior Manual Bilge Pump - CWR-92693
Amazon Warrior Manual Bilge Pump
Features
- Connections: - for 38mm (1½”) bore hose
- Dimensions: - 365mm long, 200mm wide, 260mm high, with 450mm handle
- Output: - up to 135 litres/minute (30 gallons/minute)
- Double diaphragm design for maximum efficiency and added safety: each side of the pump can work independently
- Stainless steel handle with bulkhead clips
- Self-priming up to 6m. Delivery head up to 6m.
- Mounts on deck, or through deck (optional kit & bracket)
- Packaged Dimensions: L:39.00 x H:31.00 x W:22.00cm
- Actual Weight: 4.82 Kg (Approx. 5.32 Kg packed)
What our Experts Think
-
Heavy‑Duty Manual Pump: Exceptional performance for bilge and waste water evacuation on larger boats and work craft. Double diaphragm design ensures reliable, efficient pumping with safety redundancy.
-
Strong Output: Handles up to 135 L/min (30 gpm) and self‑primes up to 6 m, delivering powerful water removal even in tough conditions.
-
Durable Construction: Stainless steel handle and robust body built to withstand marine environments and frequent use.
-
Versatile Mounting: Can be installed on deck or through deck (optional kit/bracket available), offering flexibility for different vessel setups.
-
Easy Operation: Long handle and smart design reduce user effort while maximizing flow performance.
-
Ideal for Safety & Backup: A strong manual bilge pump solution that’s perfect as a primary backup for motorized pumps or for vessels without power pumps.
Q&A
Q1: What is this product?
A: A heavy‑duty manual bilge pump designed to remove water from bilges on boats and larger craft.
Q2: What pumping capacity does it have?
A: Delivers up to 135 L/min (30 gal/min) for efficient water removal.
Q3: What size hose does it fit?
A: Fits 38 mm (1½″) bore bilge hose connections.
Q4: How does its design help performance?
A: Features a double diaphragm design so each side can work independently for reliable pumping.
Q5: Is it easy to use and install?
A: Yes — includes a stainless steel handle with bulkhead clips and can mount on deck or through deck (with optional kit).
Q6: Does it self‑prime?
A: Yes — self‑priming up to 6 m (20 ft) with a delivery head to match.
Q7: What are the dimensions and weight?
A: Approximately 365 mm long × 200 mm wide × 260 mm high with a 450 mm handle, weighing about 4.82 kg (≈ 5.32 kg packaged).
Maintenance Tips
-
Regular Inspection: Check hoses, clamps, and connections for leaks or wear; replace damaged parts promptly.
-
Clean & Flush: Periodically flush with fresh water to remove salt, debris, or buildup that can hinder performance.
-
Lubrication: Apply marine-grade grease to the pump handle pivot and moving parts to ensure smooth operation.
-
Operational Test: Pump manually before each outing to ensure proper suction and discharge.
-
Storage Care: When not in use, keep the pump dry and covered to prevent corrosion.
