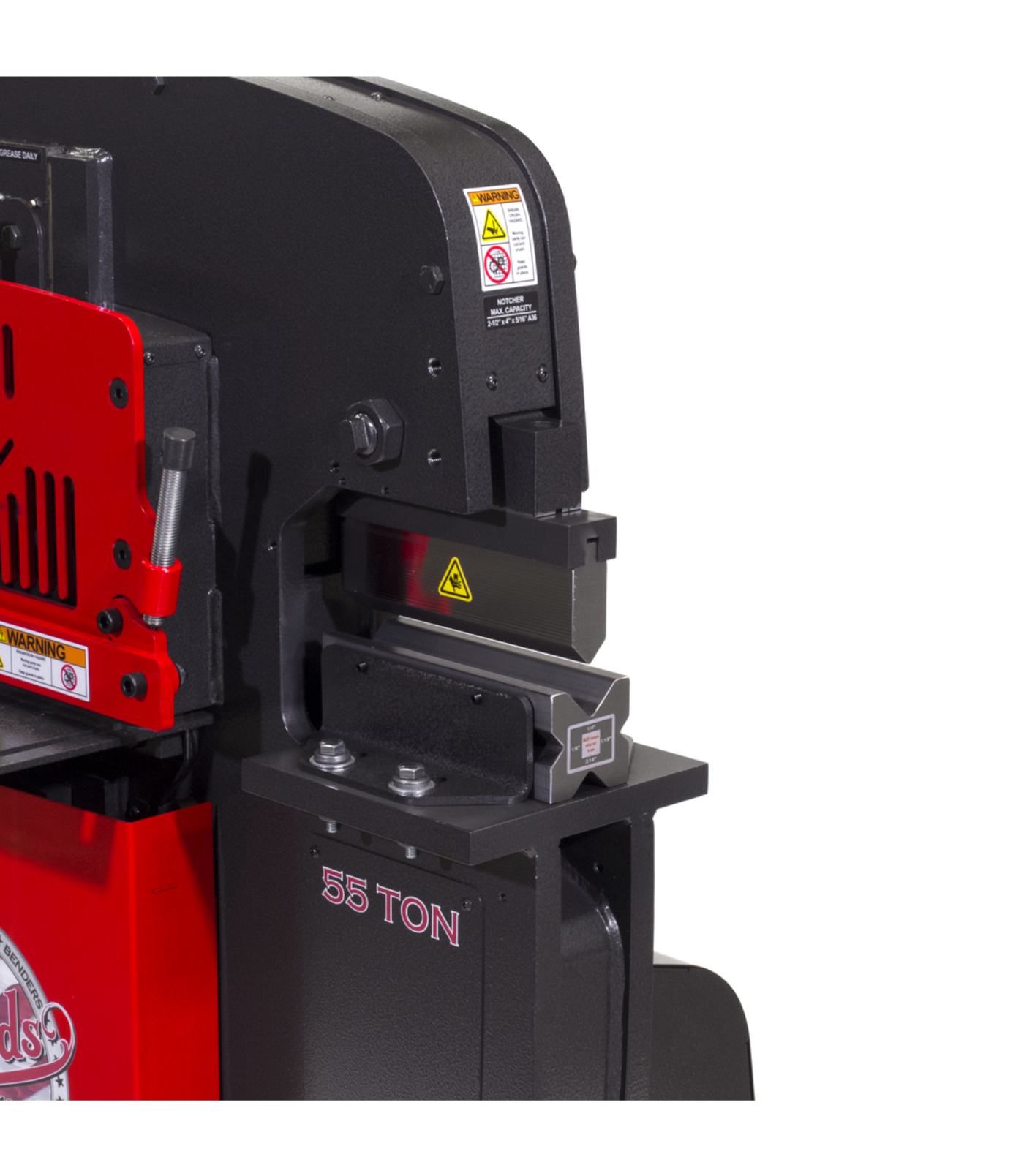

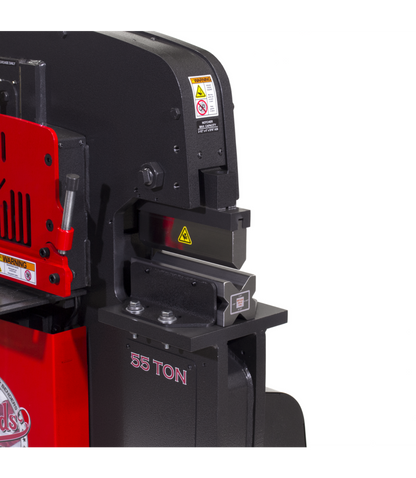

EDWARDS 10" Brake w/ 4-Way Die For Open Cavity On 65, 120 & ELITE 110/65 Ton Ironworkers - ED9-AC1052

• Easily create repeatable bends when paired with the Press Brake Back Gauge.
• Fabricate brackets, frames, pans, and tanks with this Brake with 4-Way Die.
• Includes a standard punch that allows 1/16", 1/8", 3/16" and 1/4" material to be formed to a 90° angle.

What our Experts Think

• Precision & Versatility
  Designed for clean, accurate braking, this 10" brake with 4-way die delivers consistent bends across multiple applications—ideal for fabrication shops handling varied workloads.
• Optimized for Edwards Ironworkers
  Engineered specifically for 65, 120, and ELITE 110/65 ton ironworkers, ensuring seamless compatibility and maximum machine performance.
• Time-Saving Multi-Function Die
  The 4-way die design reduces changeover time, allowing operators to switch between bending options quickly and efficiently.
• Heavy-Duty Construction
  Built with durability in mind, it withstands high-tonnage use without compromising accuracy—perfect for demanding industrial environments.
• Enhanced Productivity
  Improves workflow efficiency by combining reliability, speed, and precision in one attachment—helping shops meet tight deadlines.

Q&A

Maintenance Tips

• Clean After Every Use: Remove metal shavings and debris to prevent scoring and ensure smooth, repeatable bends.
• Lubricate Moving Components: Regularly apply machine oil to reduce friction on dies and contact surfaces.
• Inspect Punch & 4-Way Die: Check for wear, cracks, or deformation—critical for maintaining accurate 90° bends across 1/16"–1/4" materials.
• Tighten Mounting Hardware: Ensure all bolts and brackets remain secure to avoid misalignment during operation.
• Prevent Rust & Corrosion: Store in a dry environment and apply anti-rust coating when idle.
• Verify Alignment Regularly: Proper alignment ensures consistent, repeatable bending performance with ironworker stroke control systems.
