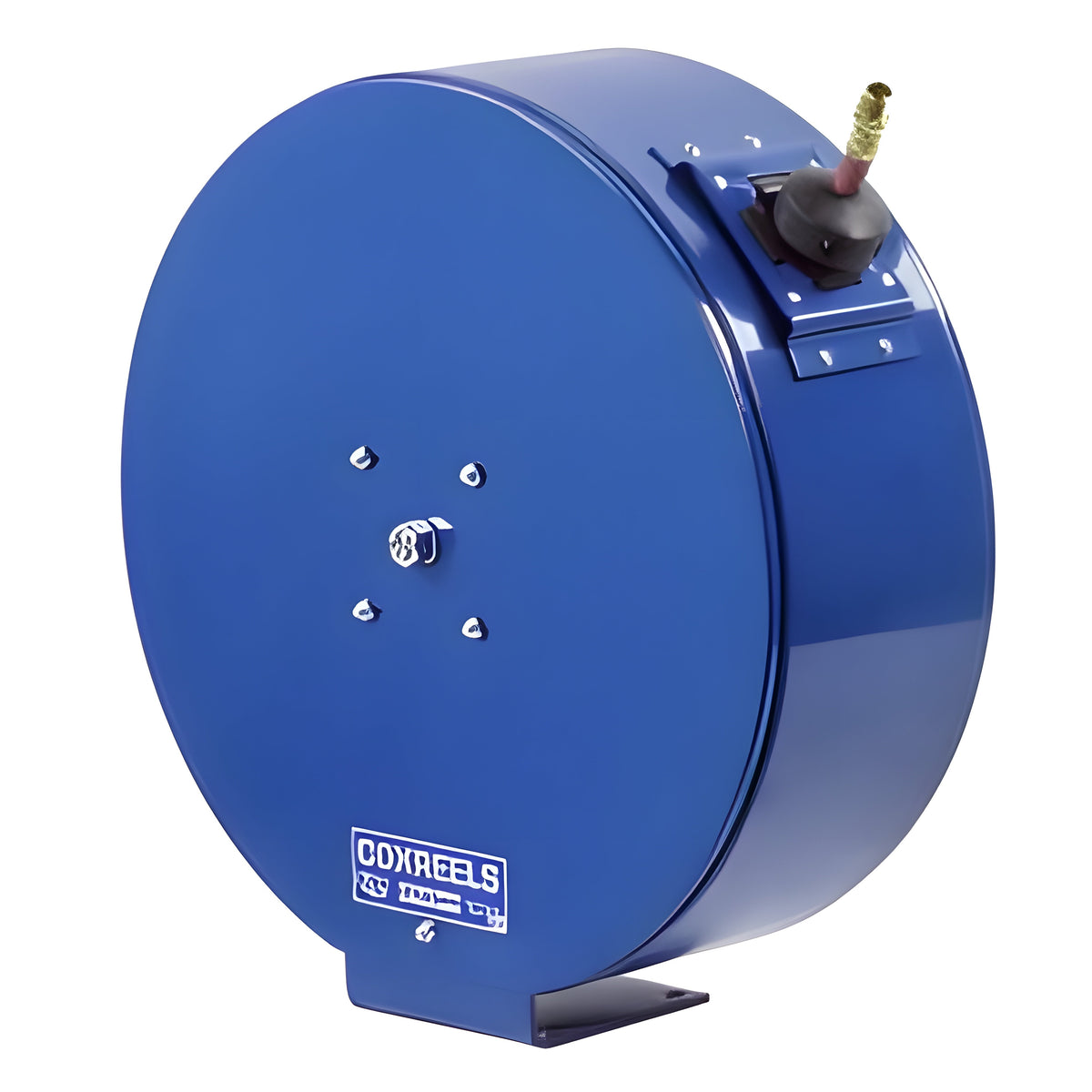

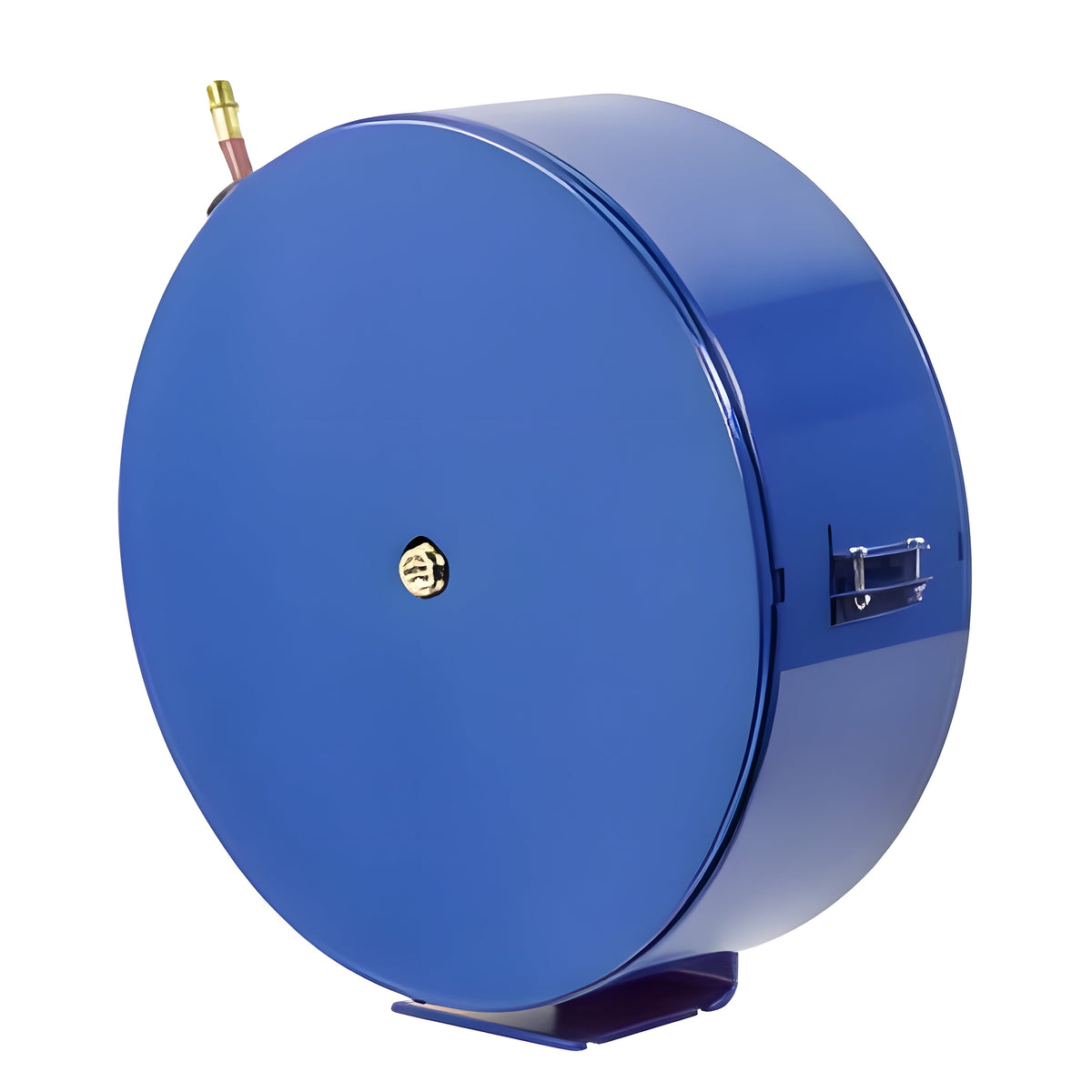

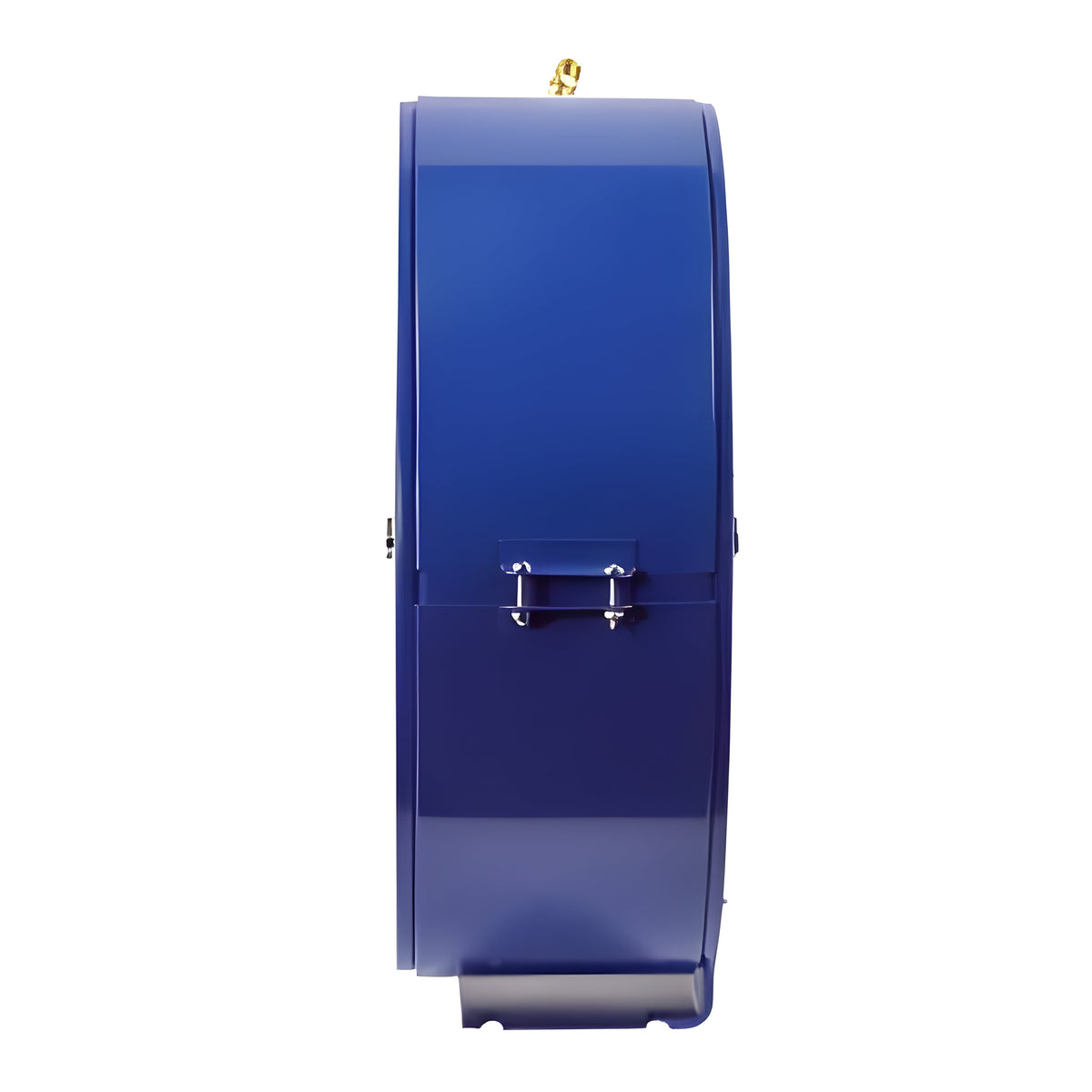

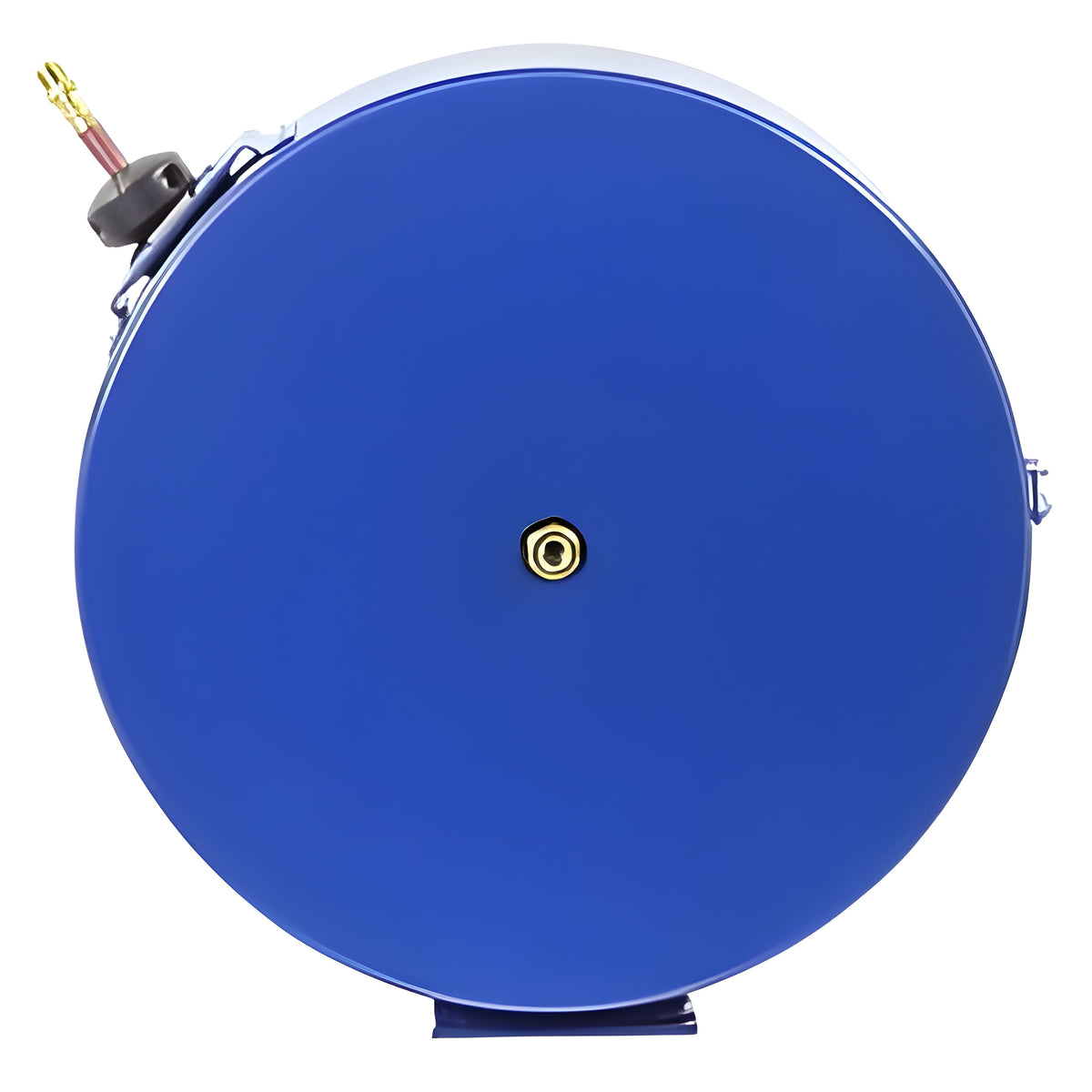

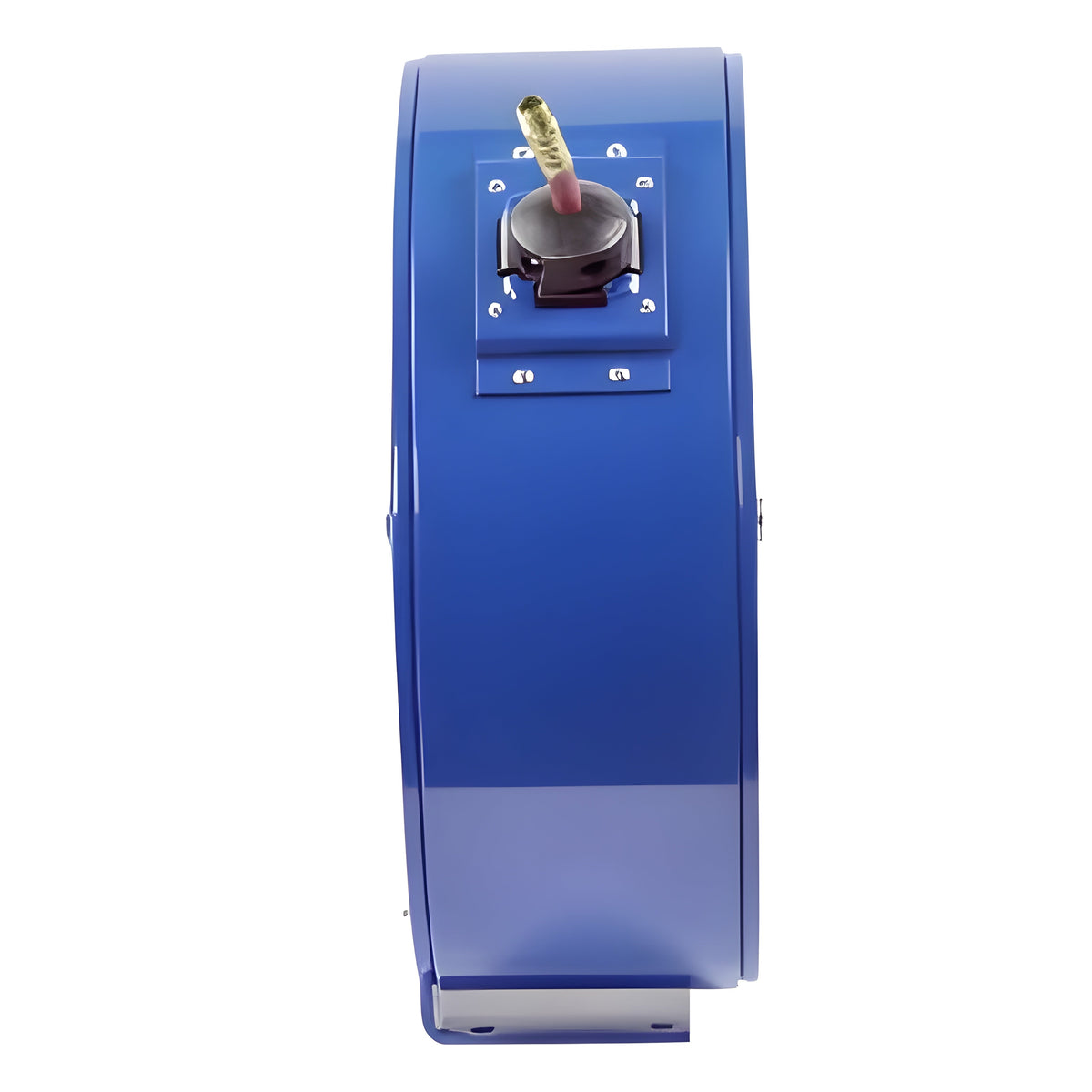

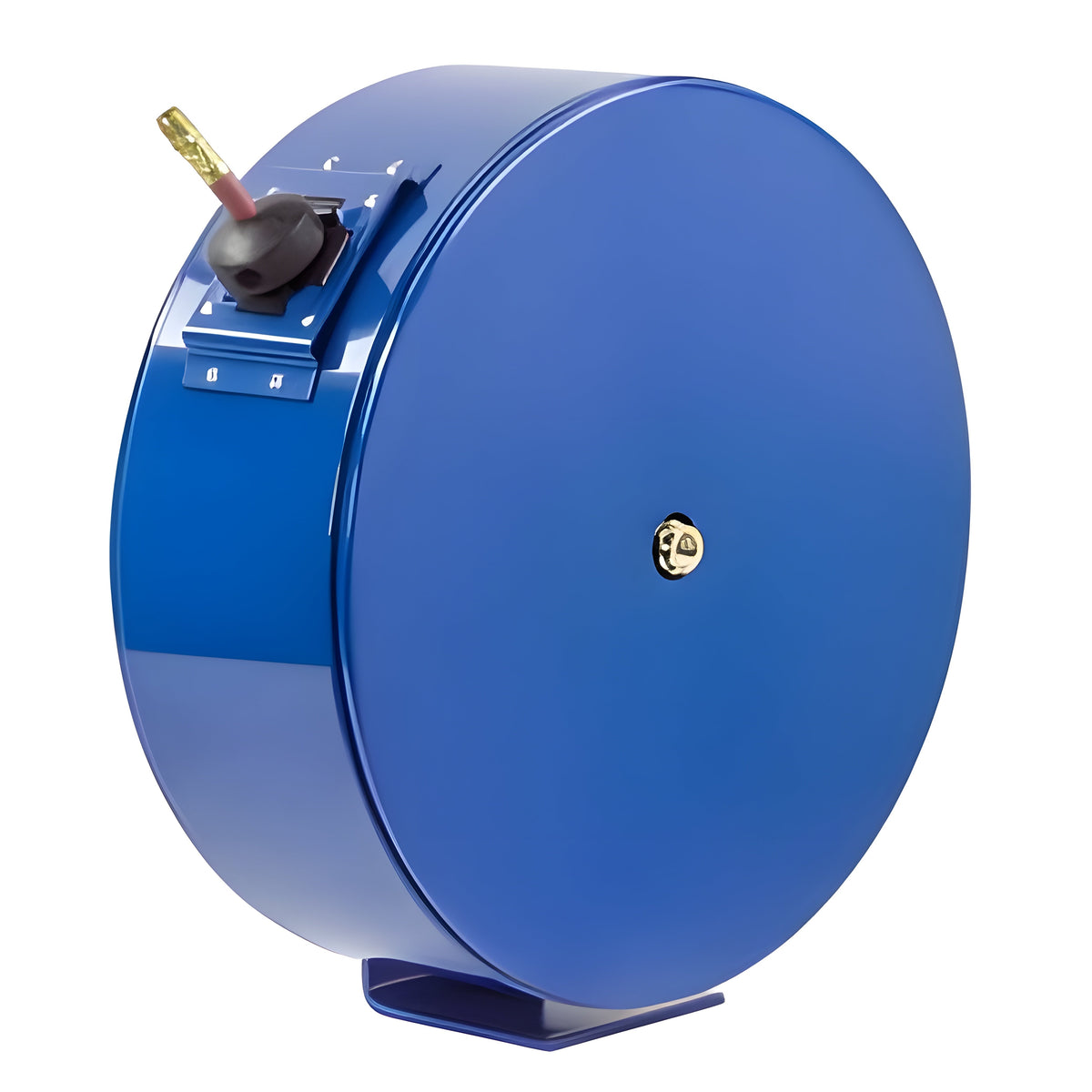

Coxreels EN Series "Enclosed" Low-Pressure Spring Driven Hose Reels - EN-N-125
EN Series "Enclosed" Low-Pressure Spring Driven Hose Reels
COXREELS EN Series "Enclosed" spring driven hose reels are protected by a powder coated steel casing that shields out the elements to protect and extend the life of the reel, the hose and the components inside. It adds a neat, tidy, aesthetic appearance to work environments that demand a clean and professional look. The 3 piece casing is easy to assemble and disassemble for simple installation and maintenance.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
- SWIVEL - Machined from solid brass 90⌠full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CARTRIDGE MOTOR - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
- 1/4" STEEL BASE - Sturdy single pedestal design with solid one piece steel base and support post, no weld, for maximum stability.Exclusive Super Hubâ˘dual axle support system.
- ENCLOSED DESIGN- Sturdy enclosed reel for aesthetic purposes and greater hose protection. Heavy gauge steel 3-piece casing with adjustable hose roller guide.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish, multi-position lock ratchet mechanism, and lubricated precision bearings.
SpecificationsÂ
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| EN-N-125 |
1/4" |
1/2" |
25' |
Yes |
300 |
51 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| EN-N-135 |
1/4" |
1/2" |
35' |
Yes |
300 |
51 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| EN-N-150 |
1/4" |
1/2" |
50' |
Yes |
300 |
52 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| EN-N-160 |
1/4" |
1/2" |
60' |
Yes |
300 |
65 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| EN-N-325 |
3/8" |
5/8" |
25' |
Yes |
300 |
49 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| EN-N-335 |
3/8" |
5/8" |
35' |
Yes |
300 |
50 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| EN-N-350 |
3/8" |
5/8" |
50' |
Yes |
300 |
65 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| EN-N-360 |
3/8" |
5/8" |
60' |
Yes |
300 |
68 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| EN-N-425 |
1/2" |
3/4" |
25' |
Yes |
300 |
63 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| EN-N-435 |
1/2" |
3/4" |
35' |
Yes |
300 |
64 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| EN-N-450 |
1/2" |
3/4" |
50' |
Yes |
300 |
69 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENL-N-125 |
1/4" |
1/2" |
25' |
No |
300 |
48 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENL-N-135 |
1/4" |
1/2" |
35' |
No |
300 |
48 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENL-N-150 |
1/4" |
1/2" |
50' |
No |
300 |
47 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENL-N-160 |
1/4" |
1/2" |
60' |
No |
300 |
60 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENL-N-325 |
3/8" |
5/8" |
25' |
No |
300 |
46 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENL-N-335 |
3/8" |
5/8" |
35' |
No |
300 |
55 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENL-N-350 |
3/8" |
5/8" |
50' |
No |
300 |
58 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENL-N-360 |
3/8" |
5/8" |
60' |
No |
300 |
61 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENL-N-425 |
1/2" |
3/4" |
25' |
No |
300 |
58 |
6.88"(W) 18.88"(H) 19"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENL-N-435 |
1/2" |
3/4" |
35' |
No |
300 |
58 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
| ENL-N-450 |
1/2" |
3/4" |
50' |
No |
300 |
61 |
8.5"(W) 21.75"(H) 21.88"(L) |
4"(M) 5"(N) |
6"(X) 6"(Y) |
What Our Experts Think
-
Enclosed Design: Protects the hose from dust, dirt, and damage, ensuring a clean and safe storage solution.
-
Low-Pressure Capability: Perfect for air and water applications, providing efficient fluid transfer for industrial, agricultural, and commercial uses.
-
Spring-Driven Retraction: Smooth, automatic hose retraction that reduces manual effort and enhances productivity.
-
Durable Construction: Built with high-quality materials to withstand heavy use and provide long-lasting reliability.
-
Corrosion-Resistant Coating: Ensures durability in both indoor and outdoor settings, resistant to rust and wear.
-
Compact & Space-Saving: Keeps hoses neatly stored and out of the way, optimizing workspace efficiency and safety.
Q&A
Q: What is the Coxreels EN Series "Enclosed" Low-Pressure Spring Driven Hose Reel - EN-N-125?
A: The EN-N-125 is a low-pressure, spring-driven hose reel with an enclosed design. It provides automatic hose retraction and added protection for the hose in a compact, space-saving package.
Q: What is the hose capacity of this reel?
A: The reel can hold up to 125 feet of low-pressure hose, making it ideal for managing air, water, or light fluid transfer.
Q: How does the spring-driven mechanism work?
A: The spring-driven rewind system automatically retracts the hose after use, ensuring easy storage and organization.
Q: What makes the enclosed design beneficial?
A: The enclosed housing protects the hose from dirt, debris, and environmental factors, extending its lifespan and maintaining a tidy work area.
Q: How is this reel installed?
A: The reel is designed for wall, ceiling, or truck mounting, offering flexibility in installation for various spaces.
Q: What are typical applications for this reel?
A: Ideal for light industrial, automotive, and service environments where low-pressure fluid or air hose management is needed.
Maintenance Tips
-
Model: EN-N-125
-
Hose Capacity: Holds up to 125 feet of 1/2â or 5/8â low-pressure hose
-
Pressure Rating: Rated for low-pressure applications up to 300 PSI
-
Construction: Heavy-duty steel frame with a corrosion-resistant powder-coated finish and enclosed design for added protection
-
Drive Mechanism: Spring-driven automatic rewind for smooth and efficient hose retraction
-
Swivel Inlet: Full-flow brass swivel for unrestricted fluid transfer
-
Roller Design: Multi-position guide arm with reinforced rollers to ensure smooth hose payout and retraction
-
Mounting Type: Wall, floor, or ceiling mount for versatile installation
-
Applications: Ideal for low-pressure fluid and air transfer in workshops, service trucks, and industrial environments
-
Temperature Range: Operates effectively in a wide range of temperatures
-
Weight: Varies based on hose configuration and reel setup
