Coxreels C Series "Combination" Low Pressure Spring Driven Hose Reels - C-L350-5012-A
C Series "Combination" Low Pressure Spring Driven Hose Reels

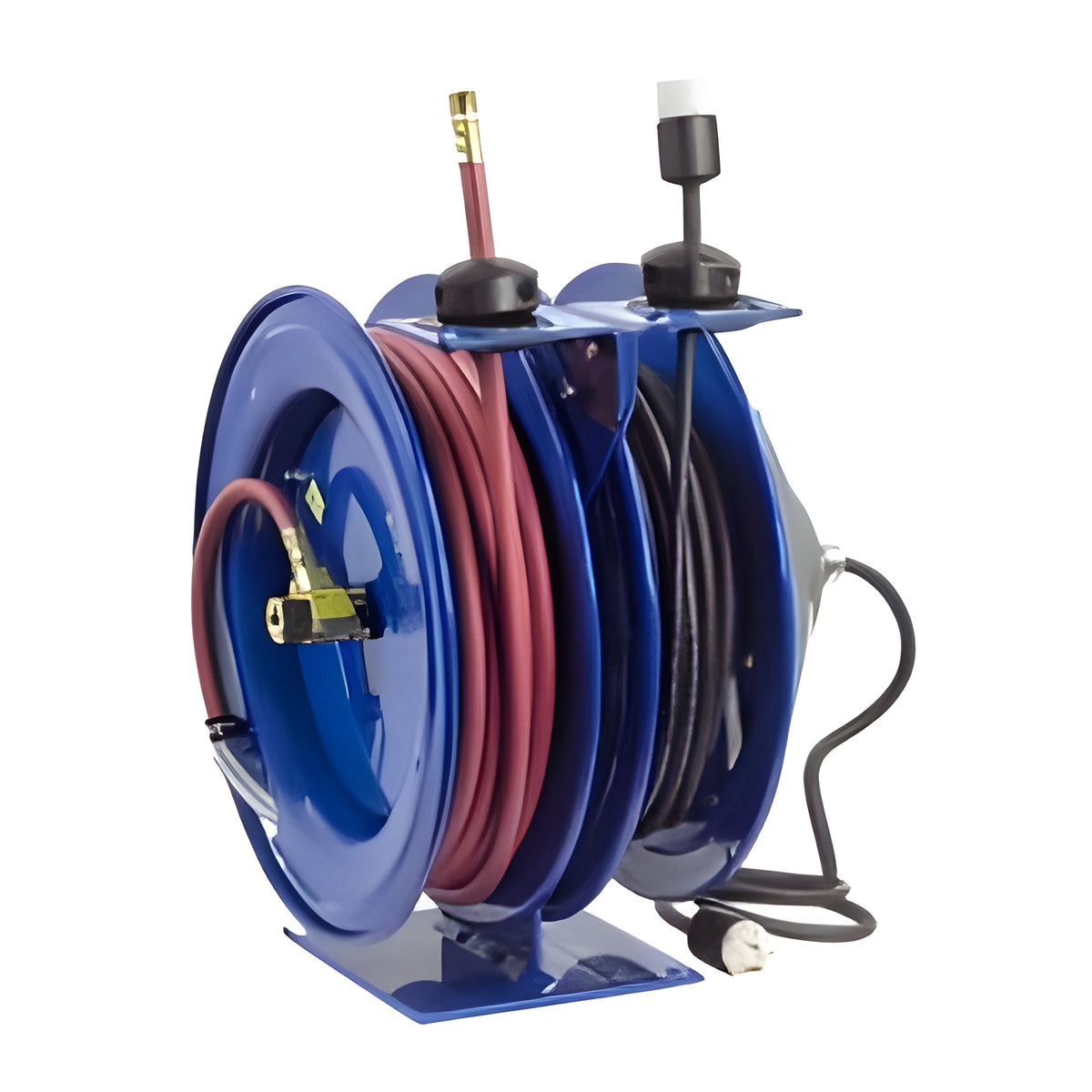

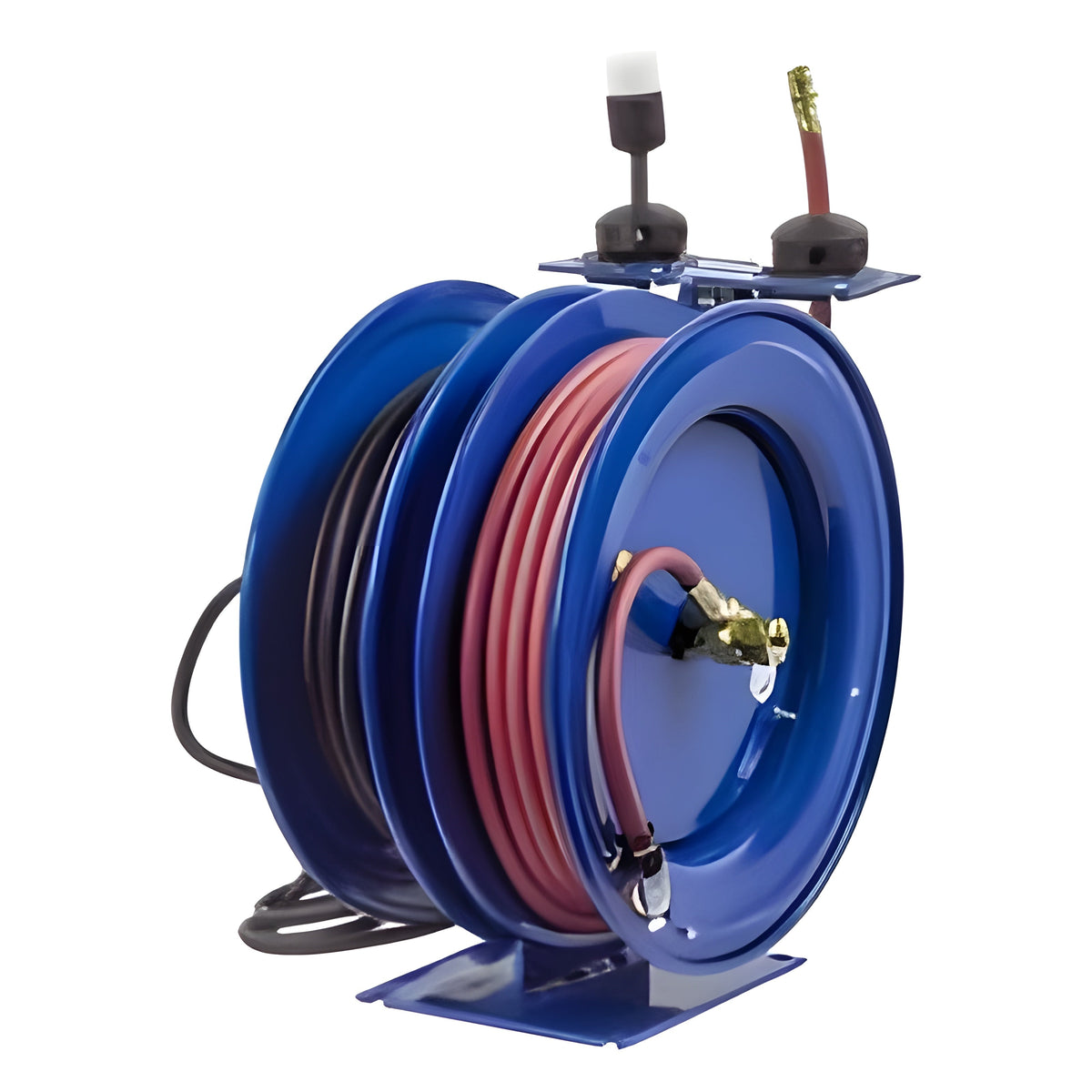

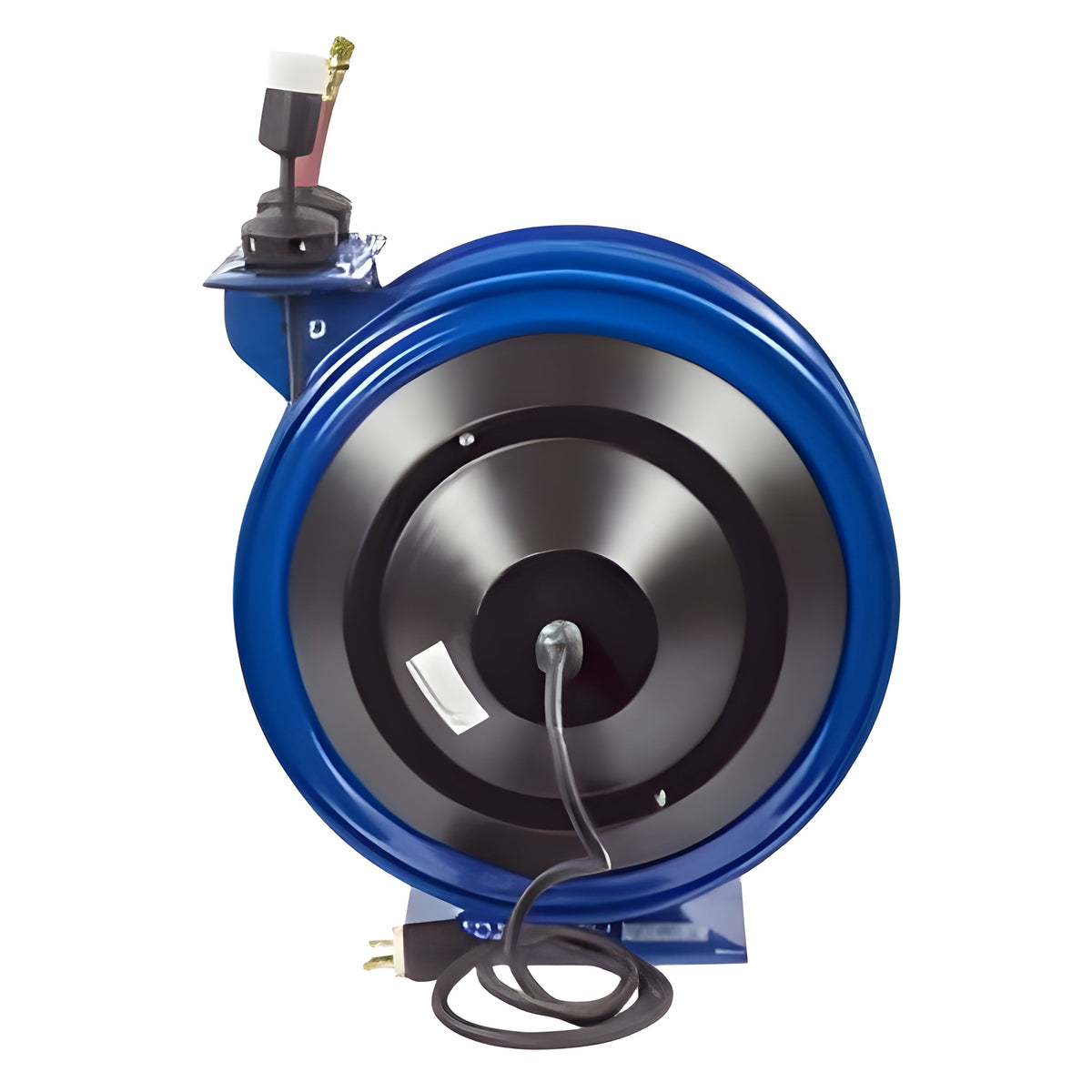

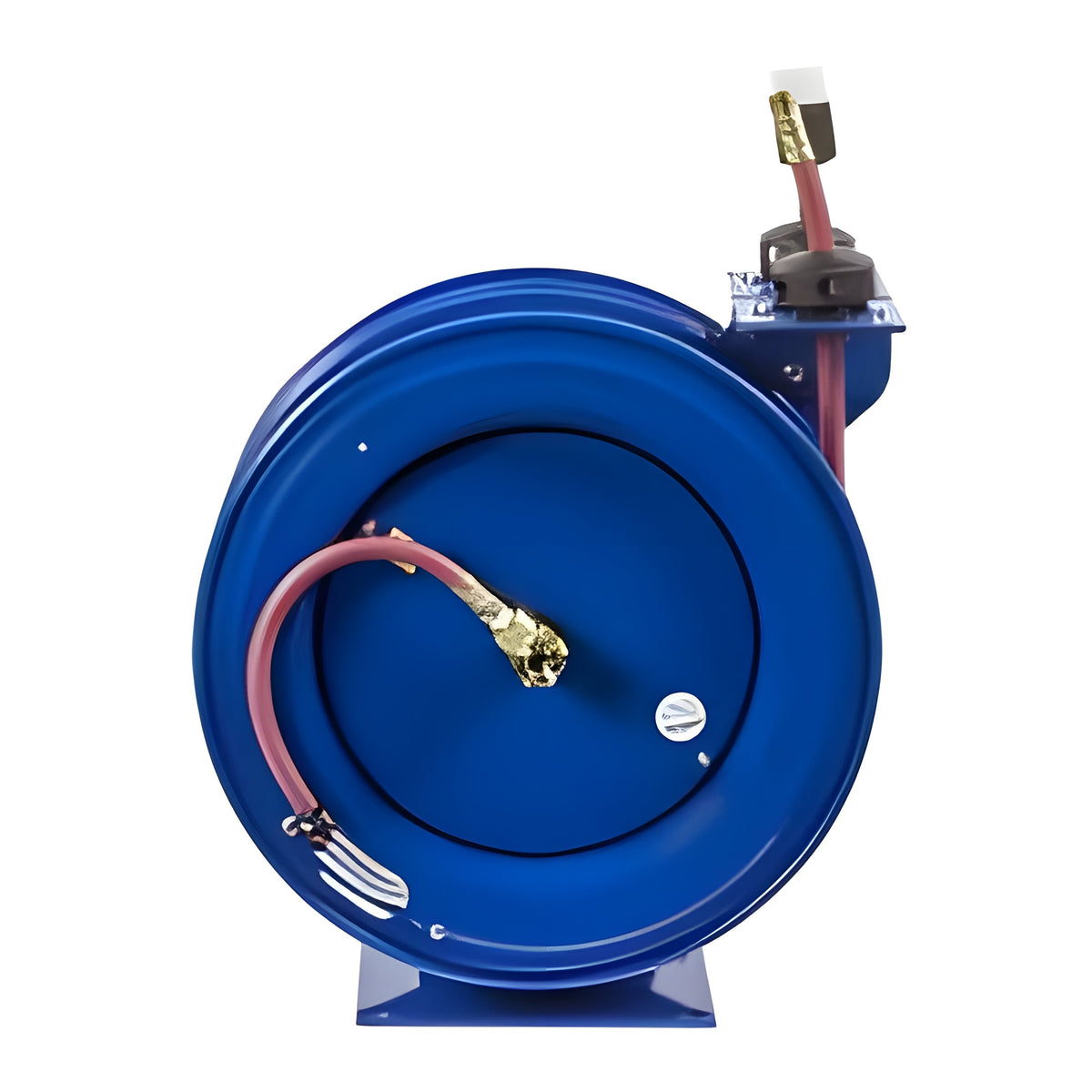

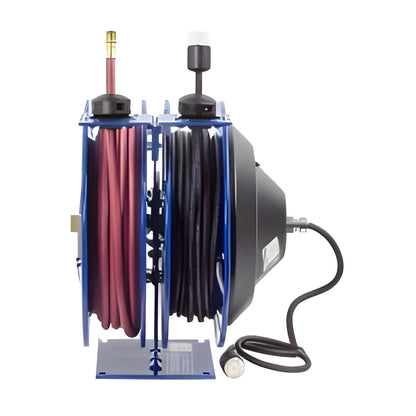

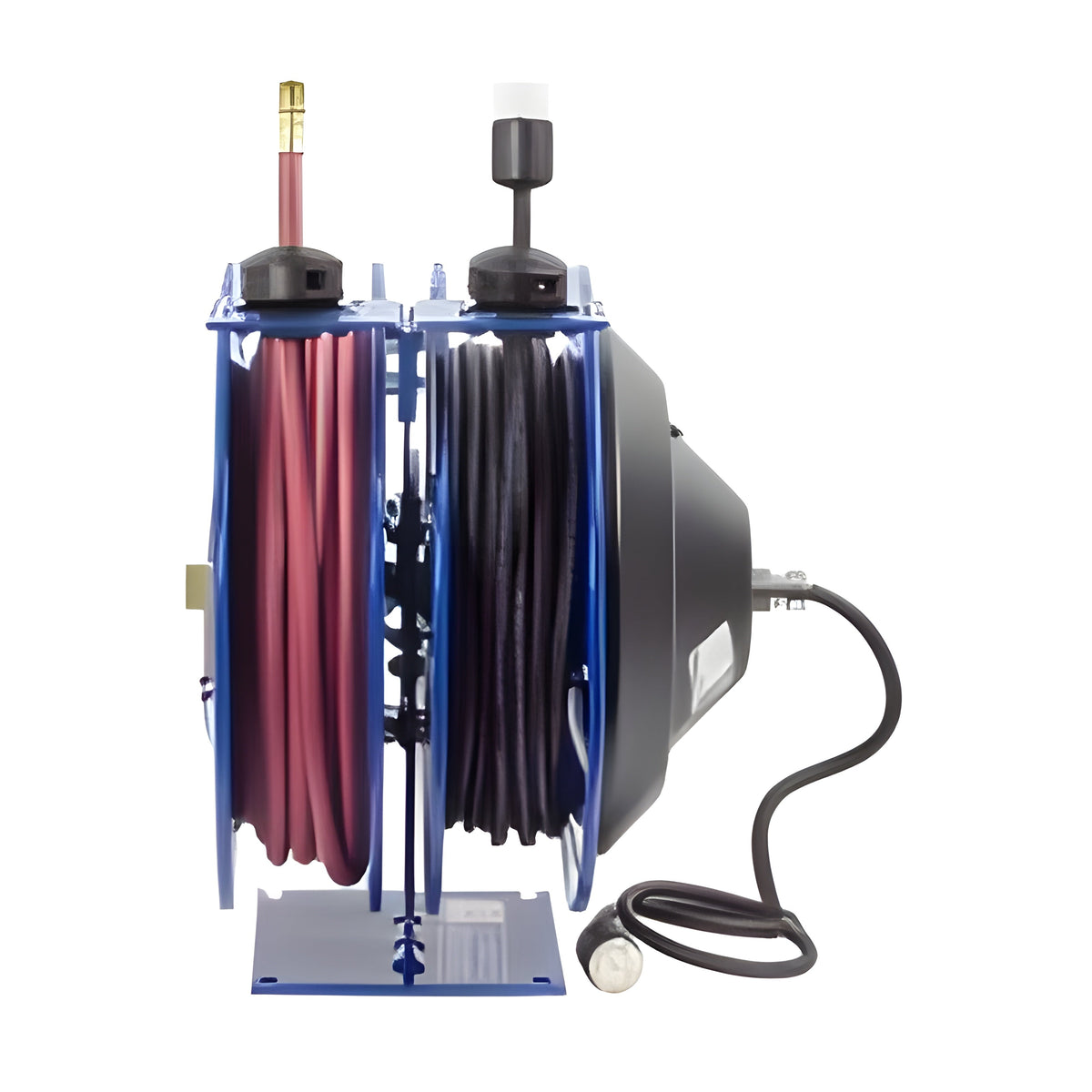

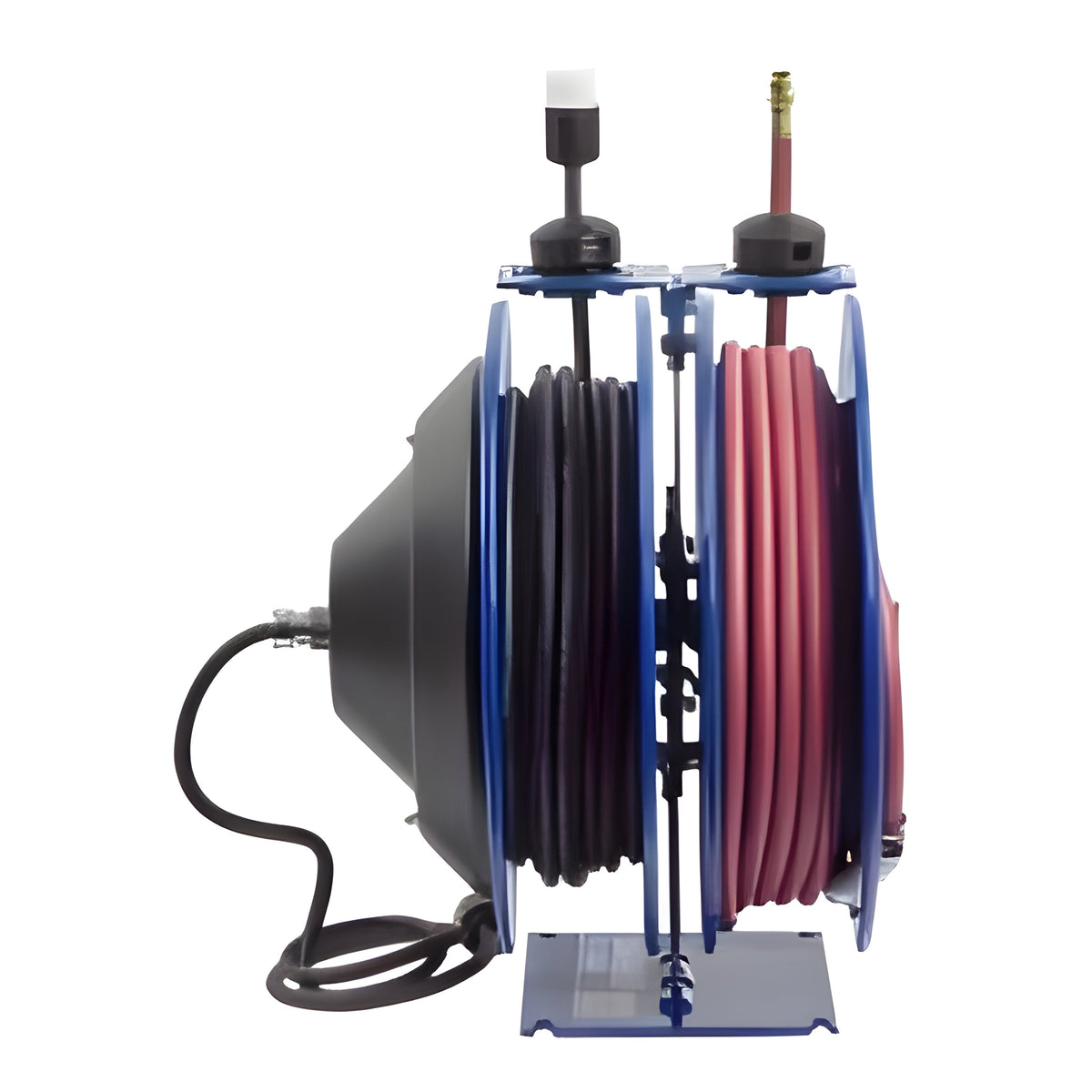

C Series "Combination" spring driven hose reels are a combination of two hose reels in one compact assembly. They are perfect for applications in which two sources are needed to get the job done when space is a critical factor. The single mounting base creates stability and adds to the convenience of one mounting pattern. This series is also available in dual hose combinations.
- Professional grade heavy duty steel construction
- Rolled edges & ribbed discs provide strength & safety
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide
Features
-
SWIVEL & LEAD CABLEĀ - Machined from solid brass 90Ė full-flow NPT swivel for simple seal maintenance and easy hose installation. External, easily accessible, heavy gauge CPCā¢ powder coated steel components cover for fast and simple slip ring routine maintenance.
-
CARTRIDGE MOTORĀ - Lubricated and enclosed cartridge-style motor is easily removable for safe and convenient maintenance. Precision coil spring factory tuned and matched to application for longest life cycle and performance.
-
CNC SPUN DISCS -Ā Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection and operator safety.
-
1/4" STEEL BASEĀ - Sturdy single expanded pedestal design with solid one piece steel base and support post, no weld, for maximum stability. Compact two reel assembly for air/ electric applications, each reel operates independently.
-
MULTI-POSITION GUIDE ARMĀ - Versatile guide arm adjusts to wall, floor, ceiling, and vehicle mounting positions.
-
OTHER FEATURES INCLUDEĀ - long lasting, chip resistant and rust inhibiting CPC powder coat finish, adjustable solid rubber hose stop, sturdy permanently lubricated precision bearings, 5' lead cable and grounding plug, and single industrial receptacle.
Specifications
| MODEL |
I.D |
O.D |
LENGTH |
HOSE |
MAX PSI |
SHIP WEIGHT (LBS) |
AMPS |
OVERALL DIMENSIONS (W) (H) (L) |
MOUNTING PATTERN (M) (N) |
BASE (X) (Y) |
| C-L350-5012-A |
3/8" |
5/8" |
50' |
Yes |
300 |
84 |
20 |
16"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-L350-5012-B |
3/8" |
5/8" |
50' |
Yes |
300 |
85 |
20 |
16"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-L350-5012-F |
3/8" |
5/8" |
50' |
Yes |
300 |
84 |
20 |
16"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-L350-5012-X |
3/8" |
5/8" |
50' |
Yes |
300 |
83 |
20 |
16"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-L350-5016-A |
3/8" |
5/8" |
50' |
Yes |
300 |
79 |
13 |
16"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-L350-5016-C |
3/8" |
5/8" |
50' |
Yes |
300 |
79 |
0.3 |
16"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-L350-5016-D |
3/8" |
5/8" |
50' |
Yes |
300 |
79 |
13 |
16"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-L350-5016-E |
3/8" |
5/8" |
50' |
Yes |
300 |
79 |
13 |
16"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-L350-5016-F |
3/8" |
5/8" |
50' |
Yes |
300 |
79 |
13 |
16"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-L350-5016-X |
3/8" |
5/8" |
50' |
Yes |
300 |
78 |
13 |
16"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-L350L-5012L-X |
3/8" |
5/8" |
50' |
No |
300 |
71 |
25 |
16"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
| C-L350L-5016L-X |
3/8" |
5/8" |
50' |
No |
300 |
71 |
25 |
16"(W) 18.63"(H) 17"(L) |
7"(M) 8"(N) |
8"(X) 9"(Y) |
What Our Experts Think
-
Combination Design: Features dual hose capability, perfect for managing two hoses simultaneously with one reel.
-
Low-Pressure Application: Ideal for air, water, and light-duty fluid transfer, making it versatile for a wide range of industries.
-
Spring-Driven Retraction: Provides effortless, automatic hose retraction, reducing manual effort and enhancing efficiency.
-
Heavy-Duty Construction: Built to withstand demanding environments, ensuring long-term durability.
-
Corrosion-Resistant Coating: Designed to resist rust and wear, ensuring reliable performance in both indoor and outdoor settings.
-
Space-Saving Design: Keeps hoses neatly organized and out of the way, reducing clutter and improving safety in workspaces.
Q&A
Q: What is the Coxreels C Series "Combination" Low Pressure Spring Driven Hose Reel - C-L350-5012-A?
A: The C-L350-5012-A is a low-pressure, spring-driven hose reel from the C Series, designed for handling two separate hoses. It features automatic hose retraction and a combination design for versatile use in industrial settings.
Q: What is the hose capacity of this reel?
A: The reel can accommodate up to 50 feet of low-pressure hose on each of its two reels, making it ideal for dual-hose applications.
Q: How does the spring-driven mechanism work?
A: The reel uses a spring-driven rewind system that automatically retracts the hoses after use, keeping your workspace organized and saving time.
Q: What is the build quality of the reel?
A: It is made with durable, corrosion-resistant materials to withstand tough environments, ensuring long-lasting performance.
Q: How is the reel mounted?
A: The reel can be mounted on walls, workbenches, or service vehicles, offering flexible installation options.
Q: What are typical applications for this reel?
A: Ideal for use in industrial, automotive, and maintenance applications where dual hose management is required for air, water, or fluid transfer.
Maintenance Tips
-
Model: C-L350-5012-A
-
Hose Capacity: Holds up to 50 feet of 3/8ā or 1/2ā low-pressure hose
-
Pressure Rating: Rated for low-pressure applications up to 300 PSI
-
Construction: Heavy-duty steel frame with a corrosion-resistant powder-coated finish for added durability
-
Drive Mechanism: Spring-driven automatic rewind for smooth and efficient hose retraction
-
Swivel Inlet: Full-flow brass swivel for uninterrupted fluid or air transfer
-
Roller Design: Multi-position guide arm with reinforced rollers for smooth hose operation and consistent payout
-
Mounting Type: Floor, wall, or ceiling mount for versatile installation options
-
Applications: Ideal for low-pressure fluid and air transfer in workshops, service vehicles, and maintenance environments
-
Temperature Range: Performs effectively in a wide range of temperatures
-
Weight: Varies based on hose configuration and reel setup
